At a glance data:
Optional Wind Sifter:

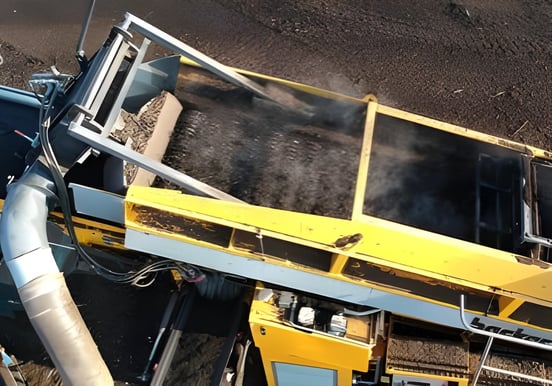

Remove paper, plastic, and other light-fraction contaminants from the screening deck with an optional wind sifter.
High-Performance Screening:
Material is loosened before feeding to the fines deck for more effective and consistent fines screening.
Overview

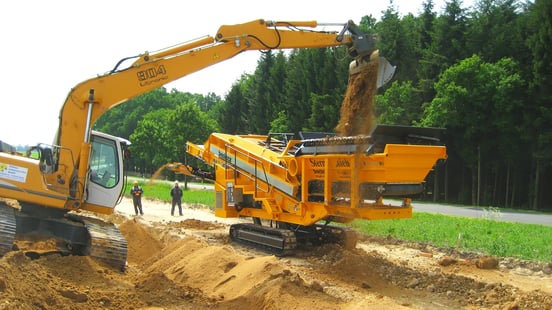

Backers star screen machines maintain high production regardless of the weather or the wetness of your source material and are ideal for screening wet compost, topsoil and more. The polyurethane star screens create maximum agitation of the source material where other types of screen struggle.
Category:
Screens
Category:
Screens
Brand:
Ecoverse
Brand:
Ecoverse
General Specifications
Optional Wind Sifter:
Remove paper, plastic, and other light-fraction contaminants from the screening deck with an optional wind sifter.
High-Performance Screening:
Material is loosened before feeding to the fines deck for more effective and consistent fines screening.
Standard Equipment
drive
- Type: Perkins diesel
- Power: 188hp / 140 Kw
- Fuel Tank: 100g diesel
- Electrical System: 24V
- Emissions: Tier V final
chassis
- Type: tracked or wheeled options
- Feed Hopper: 6.5 yd3
- Loading Height: 9’
- Track Length: 13’
- Track Width: 16
conveyors
- Fines Length: 17’
- Fines Width: 26”
- Oversize Length: 12’
- Oversize Width: 49”
star deck
- Length: 22’
- Width: 48”
- Fraction Size: 3/8” – 6”
Optional Equipment
