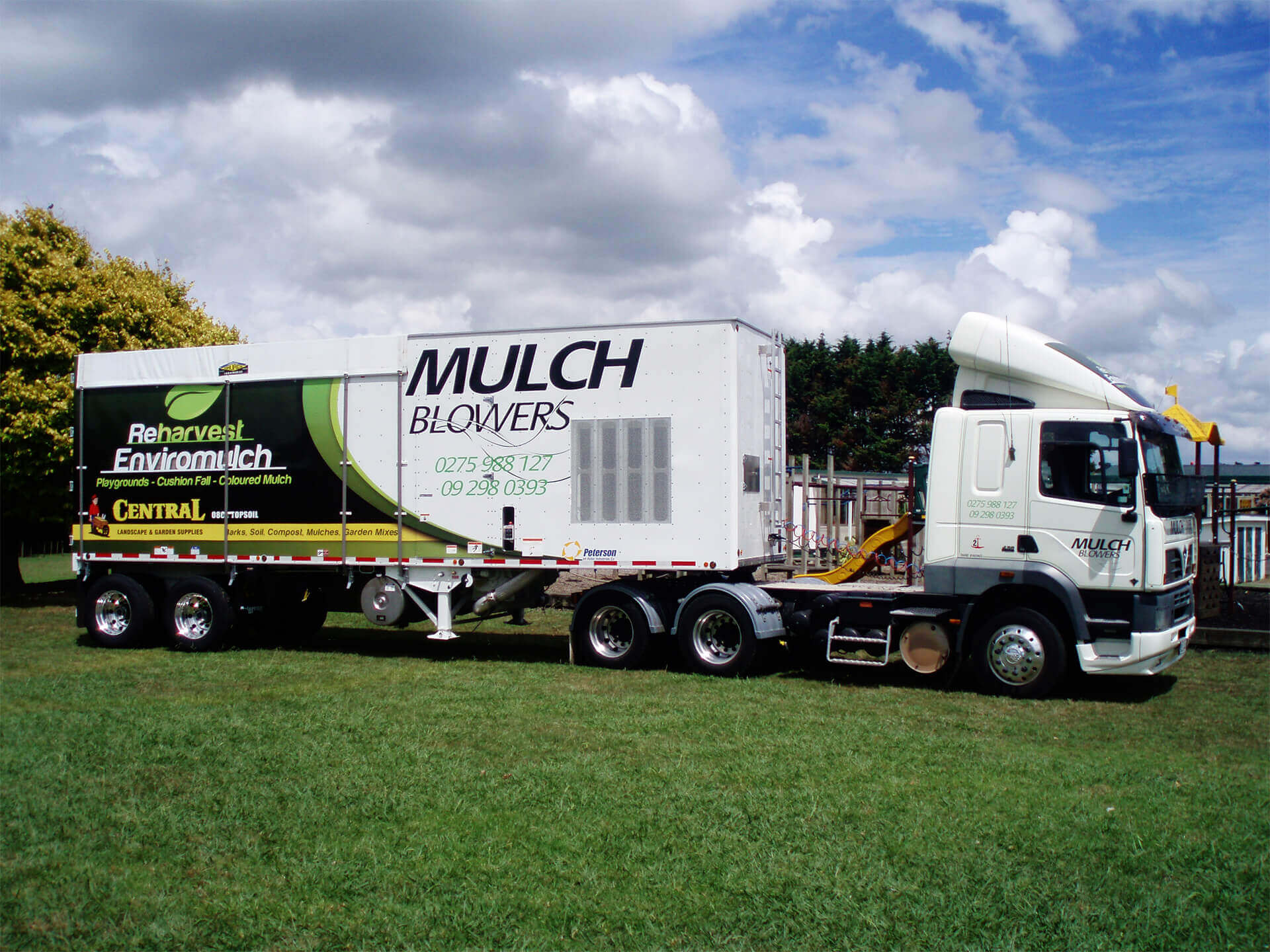

Peterson BTR45 Blower Trailer

At a glance data:

Engine:
Cat C7.1 Tier IV 225 hp
Fuel Tank Capacity:
150 gal
Machine Weight:
With Typical Options:25,600 lbs, 2 axle GCVW:70,000 lbs, 2 axle Payload: 23,300 lbs
Print

Overview

With a Peterson BTR45 Blower Trailer, you can tackle an even wider range of projects, gain productivity, and boost your profitability. The BTR45 Blower Trailer features the same high capacity delivery system as our popular blower trucks, but with more advantages from a self-contained power unit. The BTR’s yields increased payload capacity, make the BTR45 Blower Trailer a smart investment for your landscape business.

Category:
Blower Trucks & Trailers

Brand:

General Specifications

Engine:
Cat C7.1 Tier IV 225 hp
Fuel Tank Capacity:
150 gal
Machine Weight:
With Typical Options:25,600 lbs, 2 axle GCVW:70,000 lbs, 2 axle Payload: 23,300 lbs

Standard Equipment

dimensions

  • Dimensions: BTR45
  • Operating Length: 30'
  • Operating Width: 8' 6"
  • Operating Height: 13' 6"
  • Loading Height: 13'
  • Box Length: 20’ 6"
  • Box Height: 9’
  • Box Volume, Struck: 45 yds³
  • Axle Spacing: 49"
  • Tool Box: 60" wide
  • 5th Wheel Height: 4'
  • Front to 5th Wheel: 18"
  • 5th Wheel Clearance Radius: 64"
  • Center Axle to Bumper: 54"

weights

  • Weight with Typical Options: 25,600 lbs
  • 2 axle GCVW: 70,000 lbs
  • 2 axle Payload: 23,300 lbs

suspension

  • Standard Suspension: Air Ride/Fixed/Tandem
  • Optional Suspensions: Air Ride/Fixed/Tridem, Air Ride/Slider/Tandem or Tridem
  • Axle Limit: 25,000 lbs
  • Wheels: 22.5 x 8.25 Polished Aluminum
  • Tires: 11R22.5

powertrain

  • Engine: Cat C7.1 Tier IV 225 hp
  • Fuel Tank Capacity: 150 gal
  • Hydraulic Tank Capacity: 85 gal
  • Water (Dust Suppression) Option: 200 gal

system controls

  • Peterson Adaptive Feed System: Yes
  • Radio Remote: Yes

feed & blower systems

  • Floor: Aluminum Walking Floor
  • Wear Liners: Aluminum
  • Blower: Tri-Lobe®
  • Blowing Pressure: 15 psi
  • Large Capacity Silencer: Intake and Discharge

discharge system

  • Hose Reel: powered, holds up to 320 ft
  • Discharge Hose Length: 20 ft heavy-duty, 300 ft standard
  • Hose Diameter: 5", 4"
  • Noise Level with Optional Discharge Silencers: 87 db at 23‘

production

  • Discharge Volume: up to 60 yds³
  • Material Weight: up to 2,100 lbs/yd³
