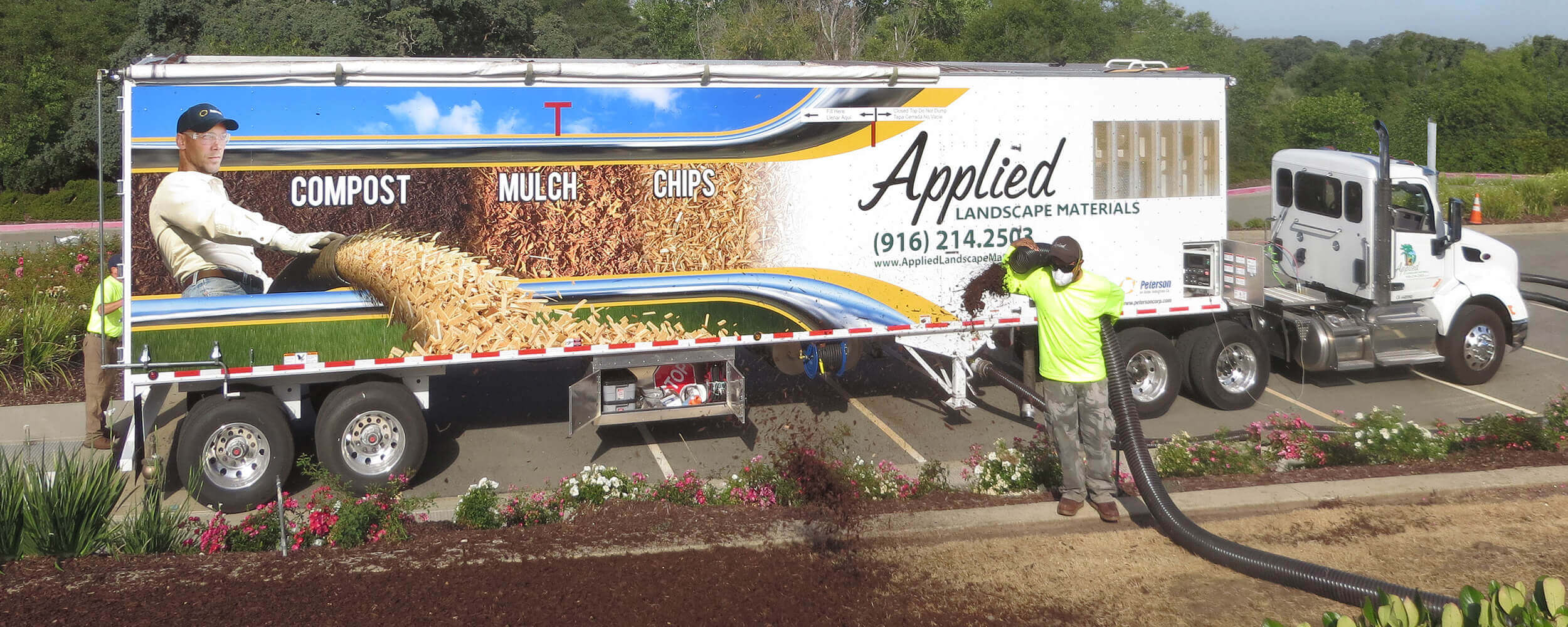

Peterson BTR90 Blower Trailer

At a glance data:

Engine:
Cat C7.1 Tier IV 225 hp
Fuel Tank Capacity:
150 gal
Weight with Typical Options:
28,000 lbs
Print

Overview

The BTR90 Blower Trailer features the same high capacity delivery system as our popular blower trucks, but with more advantages from a self-contained power unit. Gain more available system power through a directly linked engine and blower Cut operational costs over a dedicated truck by moving the BTR with a tractor. The feed system is designed to yield several advantages: These benefits plus the lightweight aluminum construction, which yields increased payload capacity, make the BTR90 Blower Trailer a smart investment for your landscape business.

Category:
Blower Trucks & Trailers

Brand:

General Specifications

Engine:
Cat C7.1 Tier IV 225 hp
Fuel Tank Capacity:
150 gal
Weight with Typical Options:
28,000 lbs

Standard Equipment

dimensions

  • Operating Length: 48'
  • Operating Width: 8' 6"
  • Operating Height: 13' 6"
  • Loading Height: 13'
  • Box Length: 38’ 6"
  • Box Height: 9’
  • Box Volume, Struck: 90 yds³
  • Axle Spacing: 49"
  • Tool Box: 60" wide
  • 5th Wheel Height: 4'
  • Front to 5th Wheel: 18"
  • 5th Wheel Clearance Radius: 64"
  • Center Axle to Bumper: 54"

weights

  • Weight with Typical Options: 28,000 lbs
  • 2 axle GCVW: 77,700 lbs
  • 2 axle Payload: 32,800 lbs
  • 3 axle GCVW: 86,000 lbs
  • 3 axle Payload: 40,000 lbs

suspension

  • Standard Suspension: Air Ride/Fixed/Tandem
  • Optional Suspensions: Air Ride/Fixed/Tridem, Air Ride/Slider/Tandem or Tridem
  • Axle Limit: 11,340 kg each
  • Wheels: 22.5 x 8.25 Polished Aluminum
  • Tires: 11R22.5

powertrain

  • Engine: Cat C7.1 Tier IV 225 hp
  • Fuel Tank Capacity: 150 gal
  • Hydraulic Tank Capacity: 85 gal
  • Water (Dust Suppression) Option: 200 gal

system controls

  • Peterson Adaptive Feed System: Yes
  • Radio Remote: Yes

feed & blower systems

  • Floor: Aluminum Walking Floor
  • Wear Liners: Aluminum
  • Blower: Tri-Lobe®
  • Blowing Pressure: 15 psi
  • Large Capacity Silencer: Intake and Discharge

discharge system

  • Hose Reel: powered, holds up to 320 ft
  • Discharge Hose Length: 20 ft heavy-duty, 300 ft standard
  • Hose Diameter: 5", 4"
  • Noise Level with Optional Discharge Silencers: 87 db at 23‘

production

  • Discharge Volume: up to 60 yds³
  • Material Weight: up to 2,100 lbs/yd³
