Screening by using geometrical patterns – bars, wire, circle, square or rectangle – is the most common method of size control in aggregates processing. We offer screens for both wet and dry applications, and the screening media for optimum end product quality. Our equipment is easily adaptable for stationary and mobile crushing plants
Ecoverse 2-Fraction Star Screen

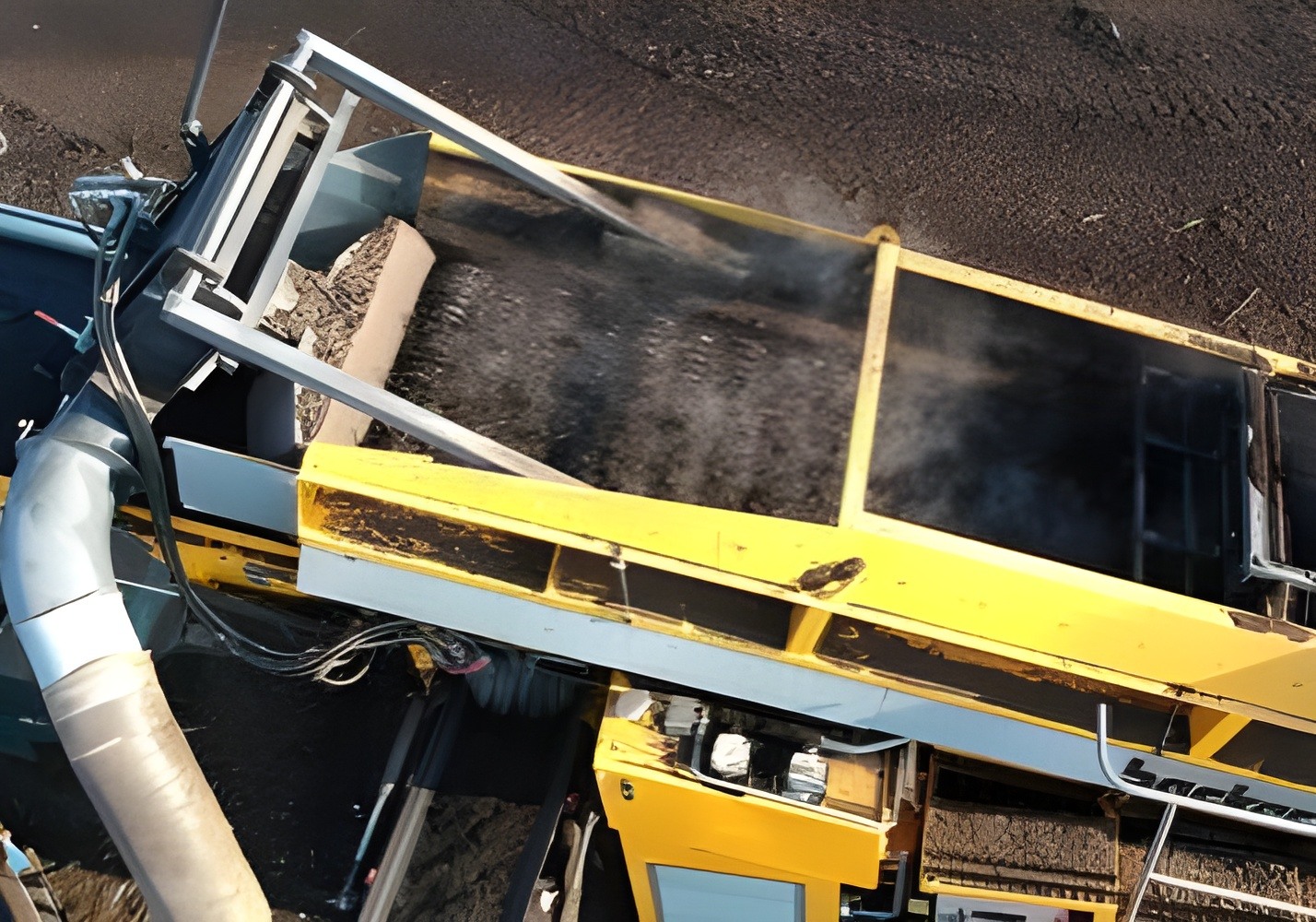

Optional Wind Sifter:
Remove paper, plastic, and other light-fraction contaminants from the screening deck with an optional wind sifter.
High-Performance Screening:
Material is loosened before feeding to the fines deck for more effective and consistent fines screening.

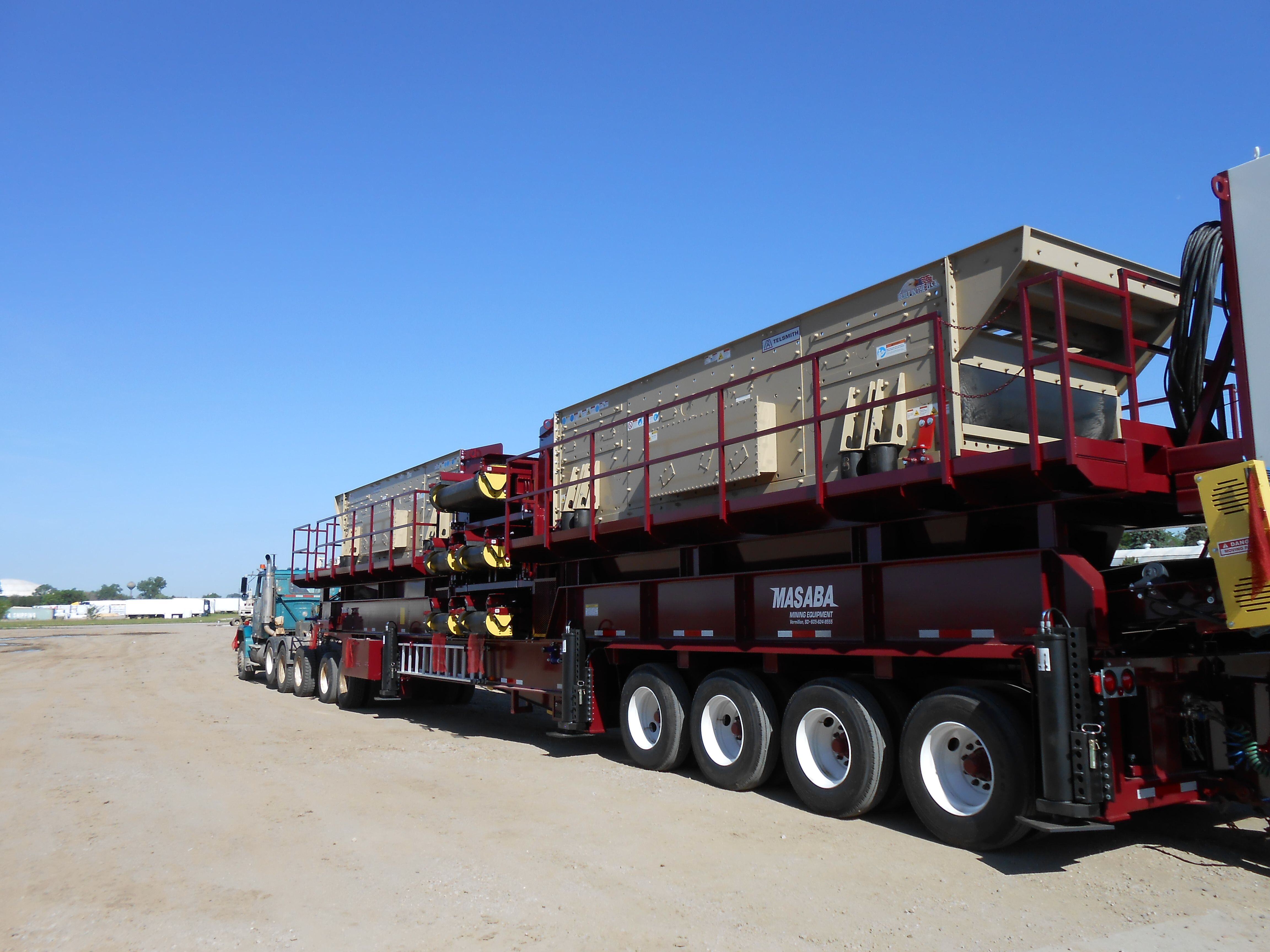

6x20 Portable Dual Screen Plant
King Pin Weight:
47,710 lbs
Axle Weight:
74,220 lbs

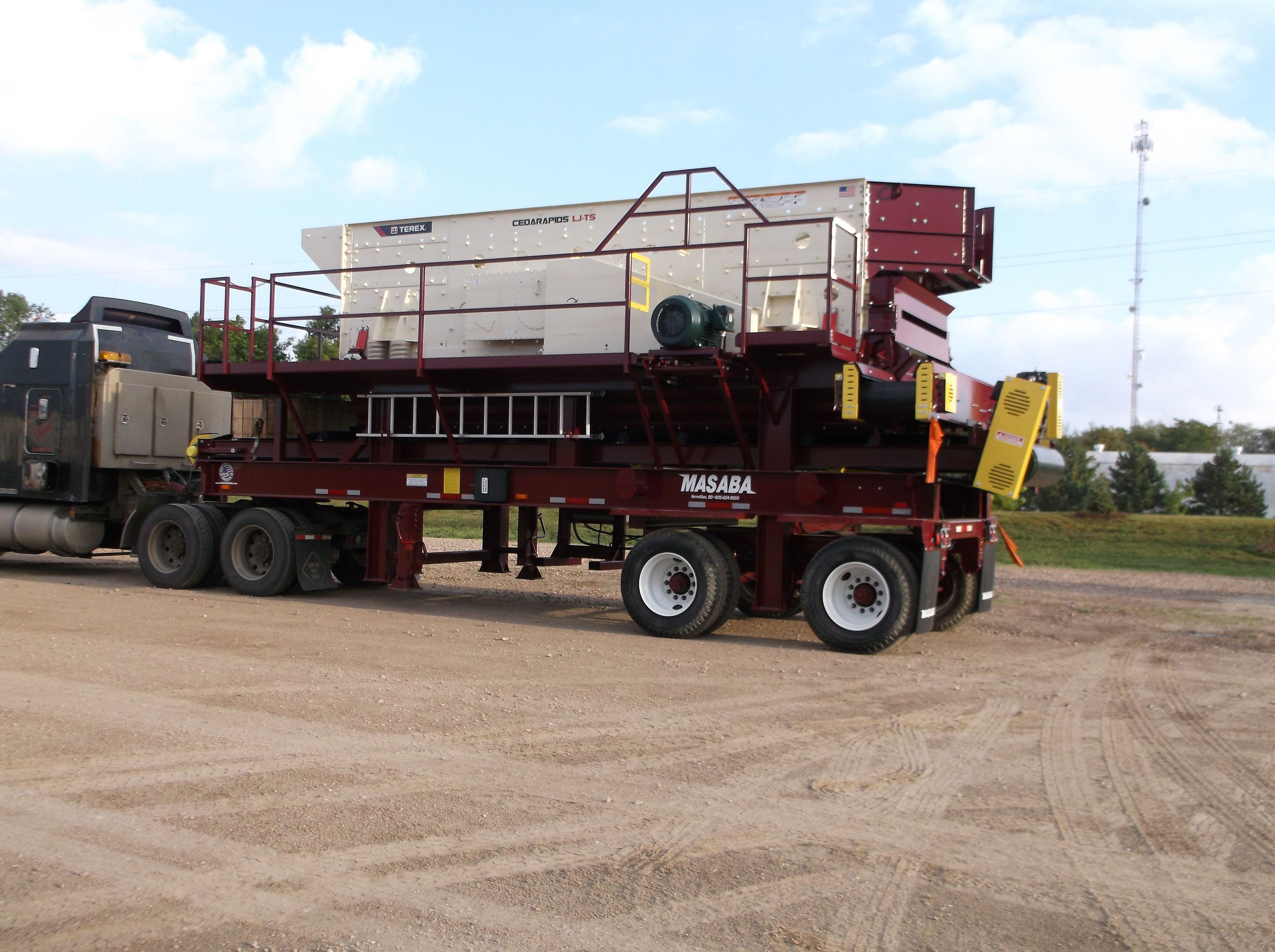

6x20 Portable TD Screen Plant
King Pin Weight:
19,050 lbs
Axle Weight:
35,780 lbs

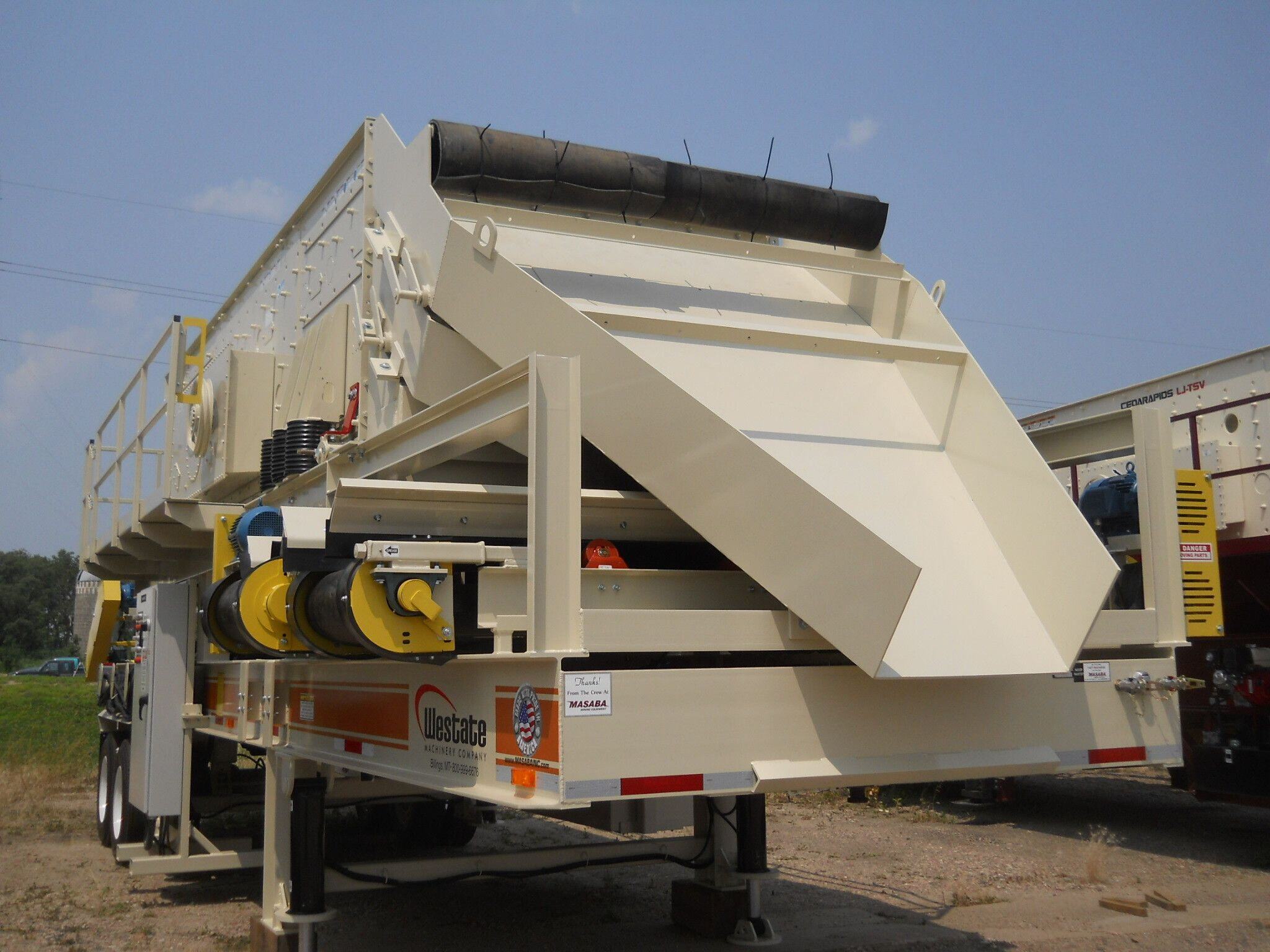

7x20 Portable Dual Screen Plant
King Pin Weight:
55,850 lbs
Axle Weight:
78,410 lbs
8x20 Portable Dual Screen Plant
King Pin Weight:
53,200 lbs
Axle Weight:
112,400 lbs
8x20 Portable Screen Plant
King Pin Weight:
29,090 lbs
Axle Weight:
26,150 lbs
Backers 3-TAL Star Screen
Drive:
Volvo TAD 572 VE | 215hp / 160kW | 106g diesel | 24V
Chassis:
TYPE: tracked or wheeled options | Feed hopper 11 yd3 | Loading height 11’ 6” | Track length 16’ 6” | Track width 16”
Conveyors:
fines length 12’ 4” | fines width 26” | middle length 12’ 4” | middle width 48” | unders length 19’ 4” | unders width 48”
Star deck:
deck top deck length 16’ 9” | top deck width 48” | top deck fraction size 1.5” – 8” | bottom deck length 22’ | bottom deck width 48” | bottom deck fraction size 1/4” – 4”
Doppstadt Trommel Screen SM 720.2 SA
CHASSIS:
Fifth-wheel, 2 axles
DRIVE:
Diesel Engine - Deutz TCD 3.6 L4. EPA Tier 5 Final
POWER:
114 HP (85kW) at 1,800 rpm
TORQUE:
480Nm at 1,600rpm
Doppstadt Trommel Screen SM720.2 K
CHASSIS:
Steel tracks
DRIVE:
Diesel Engine - Deutz TCD 3.6 L4. EPA Tier 5 Final
POWER:
114 HP (85kW) at 1,800 rpm
TORQUE:
480Nm at 1,600rpm

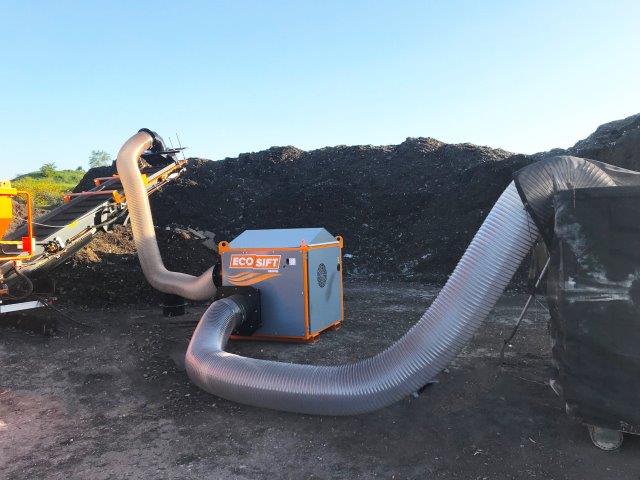

Ecosift Aeras Windsifter
CHASSIS:
Robust steel construction
DRIVE:
Hydraulically driven via other unit such as a Doppstadt SM trommel or other compatible unit. Also Available in Electric Drive
POWER:
Required
SUCTION HOSE:
• Diameter: 16” • Included: 25’ of hose
Doppstadt SM 617.2 Trommel Screen
Chassis:
Central axle
Drive:
Diesel Engine - Deutz TCD 2.9 L4. EPA Tier 5 Final
Power:
75HP (55kW)
Fuel Tank:
80 gallons

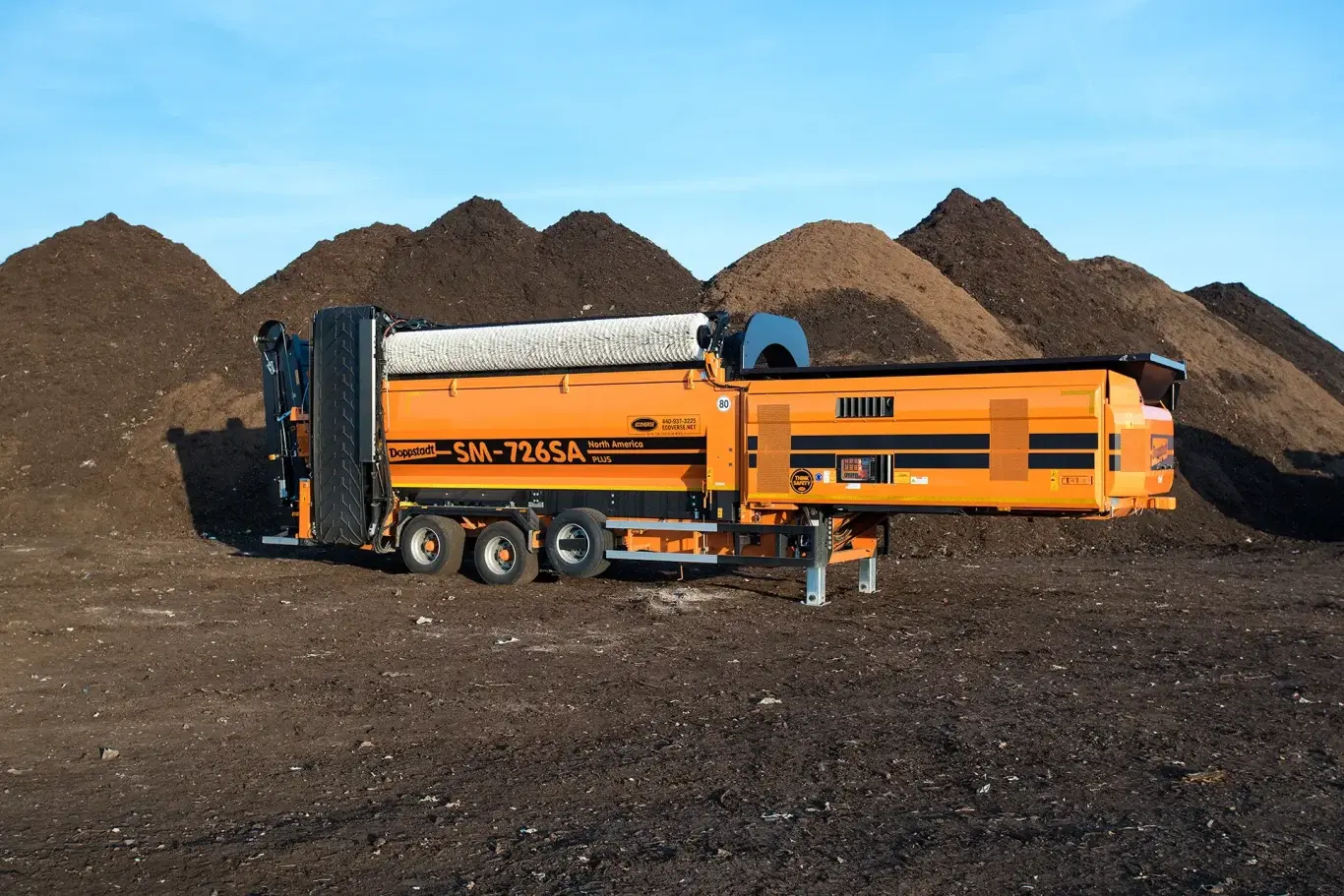

Doppstadt SM 726.2 SA Trommel Screen
Chassis:
Fifth wheel, two axles
Drive:
Diesel Engine - Deutz TCD 3.6 L4. EPA Tier 5 Final
Power:
114HP (85kW)
Fuel Tank:
106 gallons
