At a glance data:
Power Range:
2000 bhp (1491 bkW)
Speed Range:
2300 rpm
Emissions:
IMO II, U.S. EPA Tier 3 Recreational, RCD, China Stage II
Aspiration:
TTA
Overview

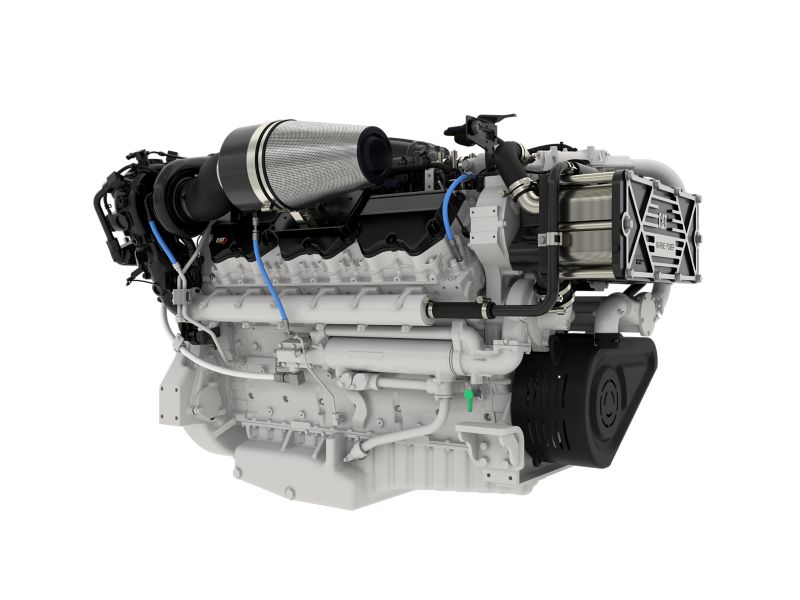

The Cat® C32B High Performance (HP) twin turbo engine is a powerful and versatile solution for commercial and high performance applications, offering a rated power range of 2000 bhp. It meets stringent emissions standards, including Tier 3 Recreational, EU RCD, and China Stage II. The Cat C32B engine has an optimized design to enhance power density, deliver more power without significantly increasing size or weight. Additionally, its improved durability* reduces maintenance needs and extends operational life, thereby lowering the total cost of ownership. This combination of high-power output, strict emissions compliance, and cost-effective durability makes the Cat C32B engine an excellent choice.
* Compared to previous C32 engines
Category:
High Performance Propulsion and Maneuvering Solutions
Category:
High Performance Propulsion and Maneuvering Solutions
Brand:
Cat
Brand:
Cat
Ratings
Power Range:
2000 bhp (1491 bkW)
Engine
Speed Range:
2300 rpm
Emissions:
IMO II, U.S. EPA Tier 3 Recreational, RCD, China Stage II
Aspiration:
TTA
Bore:
5.71in
Stroke:
6.38in
Displacement:
1959in³
Rotation from Flywheel End:
Counterclockwise
Configuration:
Vee 12, 4-Stroke-Cycle Diesel
Dimensions & Weights
Width:
57.8in
Dry Weight:
6934lb
Length:
82.9in
Height:
56.9in
Engine Specifications
Stroke:
6.38in
Standard Equipment
standard equipment
- ADEM VI Electronic Control Module
- Air Cleaner / Fumes Disposal
- Electronic Diagnostics and Fault Logging
- Engine and Transmission Monitoring
- Sea Water Aftercooler
- Titanium Plate Heat Exchanger with Expansion Tank
- Gear-driven JW and SW pumps
- Water-cooled Exhaust Manifolds and Turbochargers
- MEUI-C Fuel System
- Fuel Priming and Transfer Pump
- 250-hr Oil Pan (Shallow Sump)
- RH or LH Service Side Options
Optional Equipment
optional attachments
- 120V or 240V Jacket Water Heater
- SAE A or B PTO (LH or RH rear)
- 75A or 105A Alternator
- Spray Shielding
