At a glance data:
Power Range:
3151 - 4023 bhp (2350 - 3000 bkW)
Application:
Workboat
Speed Range:
1800 rpm
Emissions:
IMO II/ IMO III
Overview

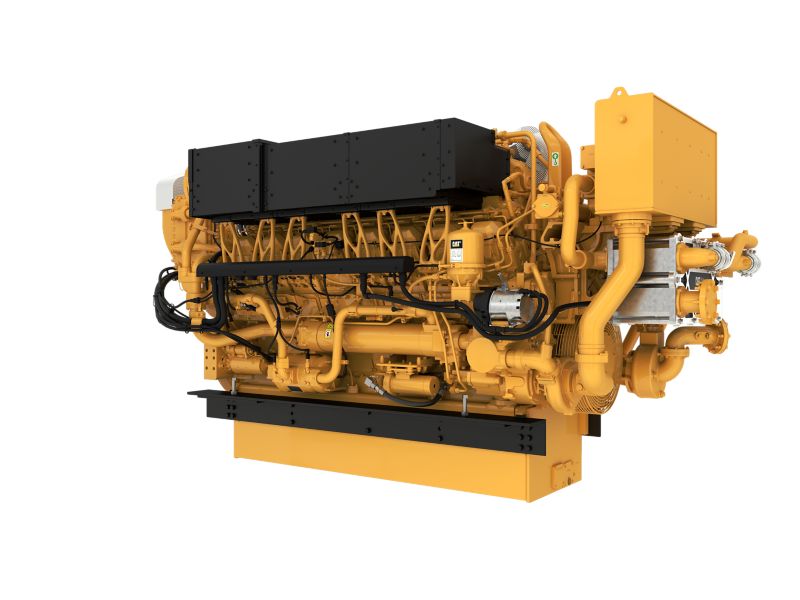

The Cat® 3516E High Output (HO) commercial propulsion engine is engineered for demanding workboat operations that require immediate response, sustained power, and operational flexibility. With high torque at low rpm, rapid throttle response, and ratings up to 4023 bhp (3000 bkW) the 3516E (HO) delivers power on demand while simplifying vessel integration and supporting evolving emissions requirements across global operating environments.
Category:
Commercial Propulsion Engines
Category:
Commercial Propulsion Engines
Brand:
Cat
Brand:
Cat
Ratings
Power Range:
3151 - 4023 bhp (2350 - 3000 bkW)
Engine Specifications
Application:
Workboat
Engine
Speed Range:
1800 rpm
Emissions:
IMO II/ IMO III
Aspiration:
Sequential Turbocharged / Aftercooled
Bore:
6.69in
Stroke:
8.46in
Displacement:
4766.0in³
Rotation from Flywheel End:
Counterclockwise or Clockwise
Configuration:
V 16, 4-Stroke Cycle Diesel
Dimensions & Weights
Length:
123in
Height:
89in
Width:
71in
Dry Weight:
25353lb
Standard Equipment
standard equipment
- IMO II /IMO III Emissions
- Corrosion resistant aftercooler core
- Sequential Water-Cooled Turbochargers
- Water Cooled Exhaust Manifold
- Vibration Damper and Guard
- Duplex Fuel Filtration
- Self-Cleaning, Centrifugal Oil Filtration
- Serviceable Hard Heat Shields
- Dual A5 Engine Control Modules
- Meets SOLAS Regulations
standard equipement
- LECP2 Instrument Control Panel
Optional Equipment
optional attachements
- Rear Mounted Plate-type Heat Exchanger
- SCAC & Jacket Water Expansion Tank
- Marine Classification Society Compliance
- Power Take-off
- Certified Marine Alarm & Protection System
- LECP3 Instrument Control Panel
- Sea Water Auxiliary Pump
- Mounting Rails
- CW or CCW Rotation
