At a glance data:
Power Range:
1800-2400 bhp (1342-1790 bkW)
Application:
Yachting
Speed Range:
2300 rpm
Emissions:
IMO II/III, U.S. EPA Tier 3 (recreational), RCD, China II
Overview

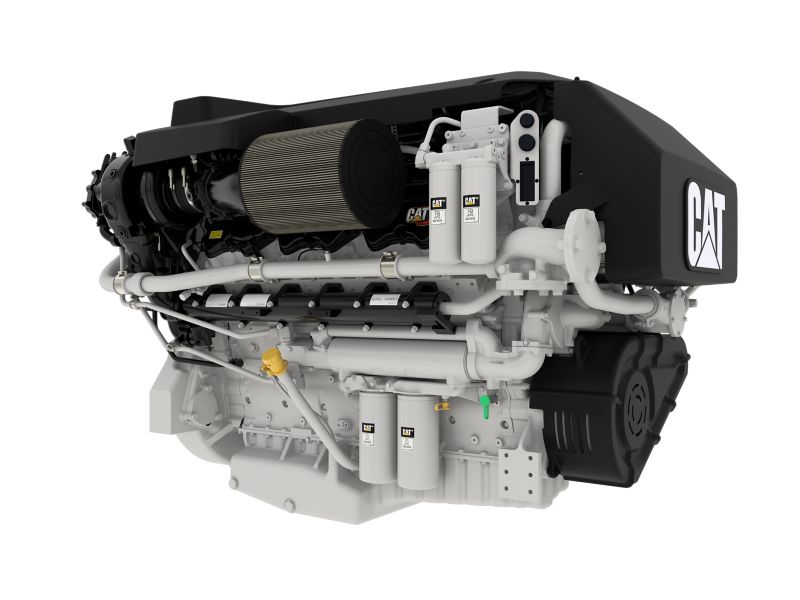

The C32B HP Sequential Turbo marine engine delivers high horsepower performance with the acceleration, response and power density needed for demanding sportfishing and performance yacht applications. Its optimized sequential turbocharging helps provide strong low-speed responsiveness, smooth operation and confident offshore capability, while the compact design helps maximize usable vessel space. Built on proven Cat marine engine performance, the C32B HP helps owners go farther, faster and more comfortably.
Category:
High Performance Propulsion and Maneuvering Solutions
Category:
High Performance Propulsion and Maneuvering Solutions
Brand:
Caterpillar
Brand:
Caterpillar
Ratings
Power Range:
1800-2400 bhp (1342-1790 bkW)
Engine Specifications
Application:
Yachting
Engine
Speed Range:
2300 rpm
Emissions:
IMO II/III, U.S. EPA Tier 3 (recreational), RCD, China II
Aspiration:
Sequential Turbocharged - aftercooled
Bore:
5.71in
Stroke:
6.38in
Displacement:
1959.0in³
Rotation from Flywheel End:
Counterclockwise
Configuration:
VEE 12, 4-Stroke Cycle diesel
Dimensions & Weights
Dry Weight:
7736.0lb
Length:
87.8in
Width:
58.0in
Height:
58.1in
Engine
Flywheel Housing:
SAE No. O
Cooling:
SWAC (Seawater Aftercooler)
Governor:
Electronic (ADEM VI)
Oil Change Interval:
250 hrs
Refill Capacity:
Lube Oil System w/ oil filter change: 76 L (20 gal)
Standard Equipment
control system
- ADEM VI Electronic Control Module
- Throttle Input Signal Option
- 70 Pin Customer Connector
air inlet system
- Air Cleaner / Closed Crankcase Ventilation
cooling system
- Front and Rear Seawater Pumps
- Sea Water Aftercooler
- Titanium Plate Heat Exchanger
- Gear-Driven Jacket Water and Sea Water Pumps
exhaust system
- Water-Cooled Exhaust Manifolds and Turbochargers
fuel system
- MEUI-C Fuel System
- Spin-On Fuel Filters
- Shell and Tube Fuel Cooler
lube system
- 250 hour Oil Pan (Shallow Sump)
- Simplex Oil Filters
general
- RH or LH Service Side Options
flywheel housing
- SAE 0 Flywheel
lube sytem
- Gear driven Oil pump
Optional Equipment
cooling system
- 120 V or 240 V Jacket Water Heater
power take offs
- SAE A or B PTO (RH Rear)
charging system
- 75 A, 105 A or 175 A Alternator
- Battery Charger 10 A
- Battery Sets
protection
- Heat Shielding
- Marine Alarm & Protection
- SOLAS Shielding
general
- Cosmetic Engine Cover
fuel system
- Manual or Electric Fuel Priming Pump
- Duplex Fuel Filters
- Primary Fuel Filter
lube system
- Deep Sump Oil Pan
- Duplex Oil Filters
exhaust system
- U-Flow or L-Flow Aftertreatment Modules (Mandatory for IMO III)
- Exhaust Collector (Horizontal or Vertical Outlet)
- DEF Filter
- DEF Transfer Skid
- Muffler
starting system
- Electric Starting Motor
mounting system
- Engine Isolation Mounts
control system
- Dual ECM Option
- Alarm and Protection System
control sytem
- Engine and Transmission Monitoring
instrumentation
- Multiple Display Options
