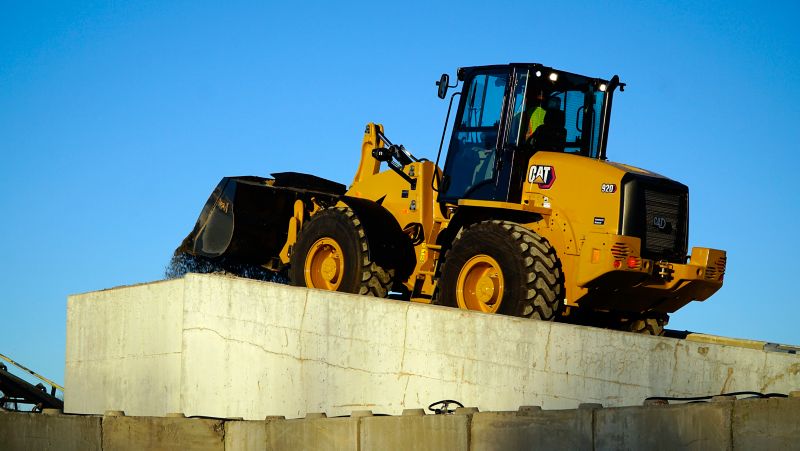

920 Compact Wheel Loader

new - Products
920 Compact Wheel Loader

At a glance data:

Rated Net Power - Rated Engine Speed:

2200r/min

Maximum Gross Power - Rated Engine Speed:

2200r/min

Rated Net Power - SAE J1349:

120hp

Maximum Gross Power - ISO 14396 (metric):

122hp

Print 920 Wheel Loader Product Brochure 910/914/920 Wheel Loaders Family Product Brochure Cat Attachments for Compact Wheel Loaders Brochure 910/914/920 Options and Accessories Kit Guide

Overview

The Cat® 920 Small Wheel Loader features an optimized Z-bar linkage that combines the digging efficiency of a traditional Z-bar loader with tool carrier capabilities for great performance and versatility. With parallel lift and high tilt forces throughout the working range you can safely and confidently handle loads with precise control. A new engine layout greatly improves rear visibility and service access.

Category:

Small Wheel Loaders

Brand:

Cat

Engine

Rated Net Power - Rated Engine Speed:

2200r/min

Maximum Gross Power - Rated Engine Speed:

2200r/min

Rated Net Power - SAE J1349:

120hp

Maximum Gross Power - ISO 14396 (metric):

122hp

Rated Net Power - ISO 9249:

118hp

Maximum Gross Torque - SAE J1995:

372ft·lbf

Maximum Gross Torque - ISO 14396:

369ft·lbf

Maximum Net Torque - SAE J1349:

366ft·lbf

Maximum Net Torque - ISO 9249:

363ft·lbf

Displacement:

220in³

Bore:

3.85in

Stroke:

4.72in

Engine Model:

Cat C3.6

Emissions:

Engine meets Tier 4 Final/Stage V emission standards.

Note:

Net power advertised is the power available at the flywheel plus front drive implement pump when the engine is equipped with fan, air cleaner, muffler and alternator.

Maximum Gross Power - ISO 14396:

121hp

Buckets

Bucket Capacities:

1.3-3.5 m3 (1.7-4.6 yd3)

Bucket Capacities - General Purpose:

1.3-1.9 m³ (1.7-2.5 yd³)

Bucket Capacities - Light Material:

2.5-3.5 m³ (3.3-4.6 yd³)

Weights

Operating Weight:

21742lb

Steering

Maximum Working Pressure - Steering Pump:

3190psi

Steering Cycle Times - Full Left to Full Right - At 2,350 rpm: 90 rpm Steering Wheel Speed:

2.3s

Steering Articulation Angle - Each Direction:

40°

Number of Steering Wheel Turns - Full Left to Full Right or Full Right to Full Left:

3.4turns

Maximum Flow - Steering Pump:

21.7gpm

Loader Hydraulic System

Relief Pressure - Tilt Cylinder:

4641psi

Maximum Flow - Implement Pump - 3rd Function, Maximum Flow, Standard:

25gpm

Maximum Flow - Implement Pump:

43.6gpm

Relief Pressure - Tilt Cylinder - 4th Function Relief Pressure:

4641psi

Hydraulic Cycle Time - Float Down, Maximum Lift to Ground Level:

2.7s

Note:

All cycle times listed are with cylinder snubbing turned off.

Maximum Working Pressure - Implement Pump:

4061psi

Hydraulic Cycle Time - Total Cycle Time:

11.5s

Hydraulic Cycle Time - Rackback:

2.2s

Maximum Flow - Implement Pump - 4rd Function, Maximum Flow:

25gpm

Hydraulic Cycle Time - Dump, at Maximum Reach:

1.8s

Hydraulic Cycle Time - Raise, Ground Level to Maximum Lift:

4.8s

Maximum Flow - Implement Pump - 3rd Function, Maximum Flow, High:

40gpm

Service Refill Capacities

Transmission:

0.8gal (US)

Engine Crankcase:

2.6gal (US)

Diesel Exhaust Fluid (DEF) Tank:

4.8gal (US)

Axles - Rear:

4.5gal (US)

Cooling System:

5.7gal (US)

Hydraulic System - Including Tank:

25.9gal (US)

Axles - Front:

4.5gal (US)

Fuel Tank:

43.6gal (US)

Hydraulic Tank:

14.5gal (US)

Note:

DEF used in Cat Selective Catalyst Reduction (SCR) systems must meet the requirements outlined in the International Organization for Standardization (ISO) standard 22241-1.

Transmission

Note:

*Creeper Control allows speed control from a stand still up to 10 km/h (6.3 mph). The Creeper Control will only work in Range 1.

Forward and Reverse - Speed Range 3:

25mile/h

Forward and Reverse - Speed Range 2*:

12.5mile/h

Forward and Reverse - Speed Range 1*:

6.3mile/h

Axles

Rear:

Oscillating ±11 degrees; Locking differential (standard)

Front:

Fixed; Locking differential (standard)

Cab

ROPS:

ISO 3471:2008

FOPS:

ISO 3449:2005

Note (3):

The labelled sound power level for the CE marked configurations when measured according to the test procedure and conditions specified in 2000/14/EC (as amended by 2005/88/EC) is 103 dB(A).

Note (2):

The declared dynamic operator sound pressure levels per ISO 6396:2008*, when the cab is properly installed and maintained, is 77 dB(A).

Note (1):

Cab and Rollover Protective Structures (ROPS) are standard in North America and Europe.

Note (4):

*The measurements were conducted with the cab doors and windows closed.

Tires

Other Choices Include:

17.5 R25 L3 XHA2; 20.5 R25 L3 XHA3; 17.5-25 L2/L3 SGL; 20.5-25 L2/L3 SGL; 17.5-25 L3 HRL D/L-3A; 17.5 R25 L2 Snow; 20.5 R25 L2 Snow; 17.5 R25 Solid

Standard Size:

17.5 R25 L2 XTLA

Note (1):

Other tire choices are available. Contact your Cat dealer for details.

Note (3):

Caterpillar recommends that you consult a tire supplier to evaluate all conditions before selecting a tire model.

Note (2):

In certain applications, the loader’s productive capabilities may exceed the tire’s tonnes-km/h (ton-mph) capabilities.

Sustainability

Recyclability:

95%

Engine

Maximum Gross Power:

121hp
