At a glance data:
Rated Power (AC Input):
500 kW
Voltage Range (AC Input):
400-660 VAC
Frequency Range:
50 or 60 Hz
Input Supply (AC Input):
3-Phase Insulated Terra (IT)
Overview

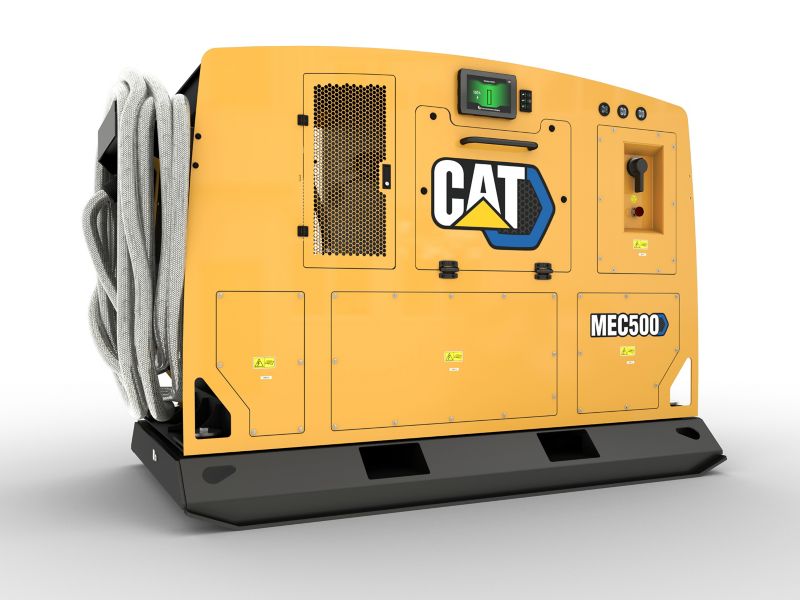

A first of its kind for the mining industry, the Cat® MEC500 Mobile Equipment Charger is a standalone fast charging system designed to charge quickly and safely wherever it’s needed.
Category:
Mobile Equipment Charger
Category:
Mobile Equipment Charger
Brand:
Caterpillar
Brand:
Caterpillar
Electrical Specifications
Rated Power (AC Input):
500 kW
Voltage Range (AC Input):
400-660 VAC
Frequency Range:
50 or 60 Hz
Input Supply (AC Input):
3-Phase Insulated Terra (IT)
Voltage Output:
300-1,000 VDC
Rated Current (DC Output):
700 Amps
Cable Output - Cat Proprietary Connector:
700 Amp
Thermal Specifications
Ambient Operating Temperature Range:
-25° to +50° C (-13° to 122° F)
Storage:
-40° to +80° C (-40° to +176° F)
Charging Standards
Control Interface:
CAN
Control Type:
IEC 61851-23/24 (with CAN)
Compliance and Safety:
CSA M421; UL2202 (under development)
Weights
MEC500:
3650lb
MEC500 with Optional Skid:
4490lb
