At a glance data:
Engine Model:
Cat C3.6
Power - Net:
104hp
Displacement:
220in³
Note (1):
Net power is tested per ISO 9249:2007 and SAE J1349:2011 and as advertised is the power available at the flywheel when the engine is equipped with fan, air intake system, exhaust system and alternator.
Overview

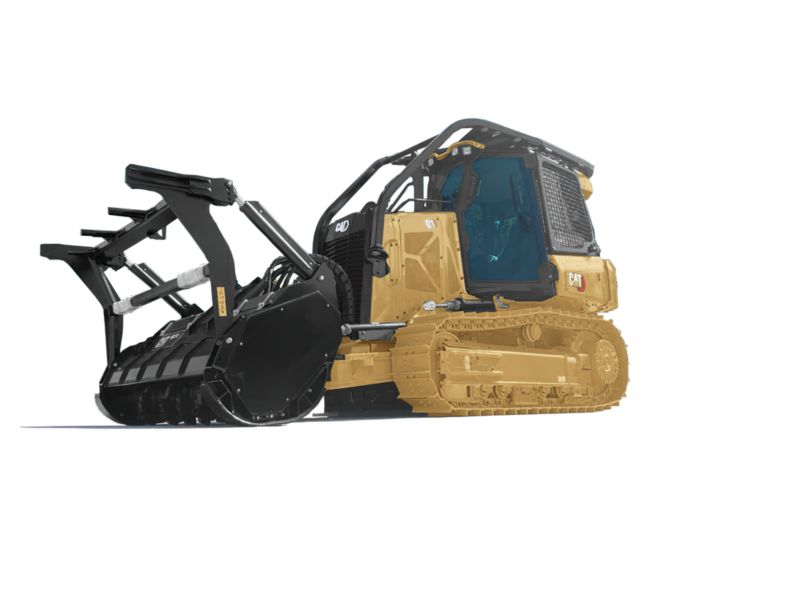

The D1 Mulcher features improved visibility, seat mounted controls, an intuitive operator interface, a pressurized cab, a hinged radiator grill, a tractor platform, a long life mulching head, a hydraulically operated front door and adjustable push bar, a closed loop hydrostatic circuit, a reversible drum, a drum speed bar indicator, a Cat C3.6 diesel engine, a Cat Sealed and Lubricated Track, a reversing fan, a turbine precleaner, and improved fuel economy.
Category:
Small Dozers
Category:
Small Dozers
Brand:
Caterpillar
Brand:
Caterpillar
Engine
Engine Model:
Cat C3.6
Power - Net:
104hp
Displacement:
220in³
Note (1):
Net power is tested per ISO 9249:2007 and SAE J1349:2011 and as advertised is the power available at the flywheel when the engine is equipped with fan, air intake system, exhaust system and alternator.
Net Power - 2,200 rpm - SAE J1349:
104hp
Net Power - 2,200 rpm - ISO 9249/EEC 80/1269:
104hp
Note (2):
All non-road U.S. EPA Tier 4 Final, EU Stage V, Japan 2014 (Tier 4 Final) and Korea Tier 4 Final diesel engines are required to use only Ultra Low Sulfur Diesel (ULSD) fuels containing 15 ppm EPA/10 ppm EU (mg/kg) sulfur or less.
Engine
Power Train :
Hydrostatic
Weights
Operating Weight:
23338lb
Operating Weight - LGP:
24209lb
Note:
Specifications shown are for machine equipped with mulcher, cab ROPS, back-up alarm, operator, coolant, lubricants and full fuel tank.
Cab
FOPS:
ISO 3449:2005 Level II
ROPS:
ISO 3471:2008
Transmission
Drive Pumps:
1
Relief Valve Settings:
7033psi
Maximum Travel Speed - Forward:
5.6mile/h
Track Motors:
2
Maximum Travel Speed - Reverse:
6.2mile/h
Undercarriage
Track Gauge - LGP:
68in
Shoe Width - Standard:
16in
Shoe Width - LGP:
25in
Length - Track on Ground - LGP:
89in
Track Gauge:
59in
Undercarriage
Ground Pressure :
6.45psi
Undercarriage
Number of Rollers - Each Side:
6
Undercarriage
Length of Track on Ground :
89in
Undercarriage
Ground Pressure - LGP:
4.3psi
Number of Shoes - Each Side - Sealed and Lubricated Track (SALT) Undercarriage:
43
Service Refill Capacities
Transmission - Hydraulic Tank:
23.8gal (US)
Service Refill Capacities
Final Drives - Each Side :
2.6gal (US)
Service Refill Capacities
Crankcase - With Filter:
2.8gal (US)
Cooling System:
4.2gal (US)
Final Drive - Each - LGP:
2.6gal (US)
Fuel Tank:
51.5gal (US)
Diesel Exhaust Fluid (DEF) Tank:
4.9gal (US)
Hydraulic Controls
Pump Output:
17.2gpm
Relief Valve Settings:
2988psi
Air Conditioning System
Air Conditioning:
The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a or R1234yf (Europe). See label or instruction manual for gas refrigerant identification. If machine is equipped with R134a (Global Warming Potential = 1430), the system contains 1.8 kg (4.0 lbs) of refrigerant, which has a CO2 equivalent of 2.574 metric tonnes (2.873 tons). If machine is equipped with R1234yf (Global Warming Potential = 0.501), the system contains 1.7 kg (3.75 lbs) of refrigerant, which has a CO2 equivalent of less than 0.001 metric tonnes (0.001 tons).
Dimensions
Track Gauge - LGP:
67.9in
Width - Tractor - Standard Shoes - No Mulcher - LGP:
92.9in
Dimensions
Tractor Height - Standard :
112in
Dimensions
Overall Length - With Blade - LGP:
167.6in
Dimensions
Track Gauge - Standard :
58.9in
Dimensions
Tractor Height - LGP:
108.8in
Dimensions
Ground Clearance - Standard :
13in
Dimensions
Ground Clearance - LGP:
13in
Dimensions
Overall Length - With Blade - Standard :
168in
Dimensions
Length - Basic Tractor - Without Mulcher - LGP:
128.9in
Width - Tractor - Standard Shoes - No Mulcher - Standard:
74.8in
Length - Basic Tractor - Without Mulcher - Standard:
128.9in
Specifications - HM518
Weight:
3197lb
Overall Height:
58in
Overall Width:
84in
Optimum Hydraulic Pressure:
5900psi
Drive Method:
Polychain belt
Optimum Hydraulic Flow:
30gpm
Lift Height:
31in
Maximum Tilt:
14.5in
Working Width:
72in
Length:
53in
Drum Speed Range:
2,150-2,450 rpm
Maximum Angle - Either Side:
25°
Motor:
Closed loop hydrostatic
Fixed Teeth per Drum:
38
Retrieval Winch
Control:
Hydraulic
Speed:
Variable
Winch Drive:
Hydraulic
Weight:
794lb
Drum Capacity - Optional Cable:
195ft
Drum Capacity - Recommended Cable:
277ft
Maximum Line Pull - Bare Drum:
32150lb
Maximum Line Pull - Full Drum:
20350lb
Maximum Line Speed - Bare Drum:
50ft/min
Maximum Line Speed - Full Drum:
79ft/min
Rope Diameter - Optional:
0.75in
Rope Diameter - Recommended:
0.67in
Overall width:
27.91in
Winch Length:
35.63in
Drum Diameter:
8in
Throat Clearance:
5.6in
Drum Width:
9.65in
Standard Equipment
power train
- Cat C3.6 diesel engine
- Turbocharged aftercooled
- Aluminum bar plate cooling system (radiator, power train)
- Air cleaner with precleaner, automatic dust ejection and under-hood intake
- Automatic traction control
- Drive, auxiliary
- Dual path, closed-loop hydrostatic transmission
- Electric fuel pump
- Fuel/water separator
- Reversing fan
electrical
- Alternator, 150 Amp, heavy duty
- Alarm, backup
- Batteries, heavy duty, maintenance free, 1,000 CCA
- Diagnostic connector
- Horn, electric
- Starter, electric, 12 volt heavy duty
undercarriage
- SALT Undercarriage
- 6 roller track frame
- Track rollers, lifetime lubricated
- Carrier rollers
- Track adjusters, hydraulic
- Guards, front/rear guiding
mulcher hydraulics
- Hydraulics, 4 valve (for use with retrieval winch or ripper)
- Load sensing hydraulics
- Single lever, three function control
- Hydraulic pump and oil
- Closed-loop hydrostatic circuit
- Axial Piston variable displacement pump and motor
guards
- Guard, track guiding, center
- Screen, rear, cab
- Screen, side, cab
- Sweeps, front
- Sweeps, rear
- Heavy duty crankcase guard
operator environment
- ROPS/FOPS cab
- Cab, polycarbonate windows and air conditioning
- Seat, air suspended, cloth
- Seatbelt, retractable 76 mm (3 in)
- Foot pads, dash
- Primary display, 254 mm (10") touchscreen color monitor with back up camera
- Electronic Monitoring System with:
– Gauges for engine coolant temperature, hydraulic oil temperature and fuel level
– Travel speed limiter, electronic
– Engine RPM and gear display
– Hour meter, electric
– Engine air cleaner service indicator, electronic
– Water-in-fuel indicator, electronic
– Mulcher drum speed and direction bar - Slope Indicate
- Throttle switch, rotary
- Controls, seat mounted, fore/aft adjustment
- Armrests, adjustable
- Mirror, rearview, inside
- Single pedal combining deceleration and braking functions
- Independent forward/reverse speed settings
- Power port, 12 volt
- Coat hook
- Storage compartment
- Cup holder
- Floor mat, rubber, heavy duty
other
- Cat Product Link™ PL641 Cellular
- C-Frame, VPAT, hydraulic cylinders and lines
- Lockable engine enclosures
- Front pull device
- Ecology drains (engine, power train and implement oil and engine coolant)
- Scheduled oil sampling (SOSSM) ports (engine, power train implement oil)
- Vandalism protection
- Hinged radiator grill
- Rearview camera
- Extended life coolant, –37° C (–35° F)
Optional Equipment
electrical
- Four integrated front halogen lights, two rear halogen
blades
- VPAT XL blade
- VPAT LGP blade
- VPAT Intermediate blade
operator environment
- Radio, AM/FM, Bluetooth®
other
- Counterweight, rear
- Winch, retrieval
- Heater, engine, coolant, 120 volt
- Starting aid, ether
- Extended life coolant, –50° C (–58° F)
