735 Bare Chassis Articulated Truck

At a glance data:

Engine Model:
Cat® C13
Bore:
5.1in
Rated Payload:
43.1ton (US)

Overview

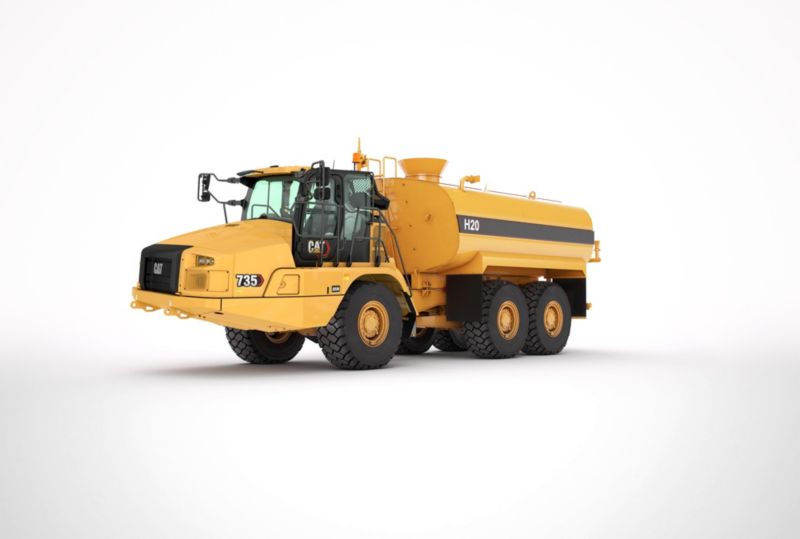

The Cat® OEM 735 Bare Chassis is available in both standard and long wheel base. With up to a 38.4 tonnes (42.3 tons) capacity, the 735 bare chassis offers proven reliability, durability, high productivity, superior operator comfort and lower operating costs. The long wheel base configuration accommodates longer specialty OEM bodies, while retaining high-quality steering, braking and ride characteristics.

The Cat 735 features a world-class cab design, re-engineered using global operator feedback to advance comfort and ease of operation. Enhancements include new controls, transmission-protection features, hoist-assist system, advanced automatic traction control system, stability-assist machine rollover warning system, and a fuel saving ECO mode.

Category:
Articulated Truck Bare Chassis

Brand:
Cat

Engine

Engine Model:
Cat® C13
Bore:
5.1in
Stroke:
6.2in
Displacement:
736in³
Gross Power - SAE J1995:2014:
434hp
Net Power - SAE J1349:2011:
424hp
Peak Engine Torque Gross (SAE J1995):
1614lb/ft
Peak Engine Torque Speed:
1200r/min
Peak Engine Torque Net (SAE J1349):
1597lb/ft
Net Power - ISO 14396:
447hp
No Engine De-rating Required Below:
12500ft
Engine Model - U.S. EPA Tier 4 Final/EU Stage IV/Japan 2014 (Tier 4 Final)/Korea Tier 4 Final:
Cat® C13

Wheel Base Length

Standard Wheel Base:
156.7in
Long Wheel Base:
215.2in

Weights

Rated Payload:
43.1ton (US)

Transmission

Forward - 1:
5mile/h
Forward - 2:
9mile/h
Forward - 3:
14mile/h
Forward - 4:
22mile/h
Forward - 5:
30mile/h
Forward - 6:
35mile/h
Reverse - 1:
6mile/h

Service Refill Capacities

Fuel Tank:
108.8gal (US)
Cooling System:
21.9gal (US)
Hydraulic System:
29.1gal (US)
Engine Crankcase:
10gal (US)
Transmission:
12.3gal (US)
Final Drives/Differential:
33gal (US)
Output Transfer Gear Box:
5.5gal (US)
DEF Tank:
5.3gal (US)

Sound Levels

Interior Cab:
72dB(A)

Standards

Brakes:
ISO 3450:2011
Cab - FOPS:
ISO 3449:2005 Level II
Cab - ROPS:
ISO 3471:2008
Steering:
ISO 5010:2019

Steering

Lock to Lock:
4.75 seconds at 60 rpm

Turning Circle

Turning Dimensions - SAE Turning Radius:
294in
Turning Dimensions - Inside Radius:
149in
Turning Dimensions - Aisle Width:
212in
Turning Dimensions - Clearance Radius:
318in
Turning Dimensions - Steer Angle - Left/Right:
45°
Note:
Dimensions are for machines equipped with 750/65 R25 tires.

Standard Equipment

for more information on 735 bare chassis options, please contact caterpillar oem solutions at oem_solutions@cat.com.

note

  • Standard and optional equipment may vary. Consult your Cat dealer for details.

operator environment

  • Secondary steering – electro hydraulic
  • Seats:
    – Operator: fully adjustable, air suspension
    – Trainer: padded with lap belt
  • Glass windows:
    – Front, laminated and tinted
    – Sides and rear, toughened and tinted
  • Sun visor
  • Adjustable air vents
  • Retractable belt: Operator seat and second seat
  • Windows opening both sides, tinted
  • Windshield wiper and washer, two speed, intermittent (front)
  • Windshield wiper and washer, two speed (rear)
  • Touchscreen display incorporating the rearview camera video feed
  • Liquid Crystal Display (LCD):
    – Alert indicator
    – Selected gear and direction
    – Speed or auto shift
    – Review Operation and Maintenance Manual (OMM)
    – Primary steering failure warning
    – Seat belt warning
    – Secondary steering failure warning
    – Diesel Particulate Filter (DPF) regeneration filter
    – Machine Security System (MSS) ready
    – Secondary steering energy source engaged
    – Hour meter
    – Retarder active
  • Storage:
    – Cup holder
    – Flask receptacle
    – Under seat storage
    – Door pocket
    – Behind operator seat storage
    – Coat hook
  • Heater and defroster with four-speed fan
  • Tilt and telescopic steering wheel
  • Mirrors: extensive arrangement for improved visibility
  • Combined gear selection and hoist control lever
  • Machine operation monitoring system includes:
    – Action lamp
    – Engine oil pressure
    – Primary steering system
    – Left and right turn signal
    – High beam
    – Coolant temperature
    – Tachometer
    – Parking brake
    – Fuel level
    – Transmission oil temperature
    – Brake system
    – Transmission hold
    – Hoist control
    – Hydraulic system
    – Charging system
    – Retarder
    – Transmission fault
    – Traction control system
    – Check engine lamp
  • Air conditioning with R134A refrigerant

cat technologies

  • Product Link
  • Cat Detect with Stability Assist

electrical and lighting

  • Horn
  • Electrical system: 24-volt, 5A 24- to 12-volt converter
  • Lighting systems:
    – Cab interior
    – Two head lamps
    – Two width marker
    – Two reversing
    – Work light/cab access light
    – Two stop/tail lights
    – Front and rear direction indicators
  • Main disconnect switch
  • Batteries (two) maintenance free
  • Remote starting receptacle (cables not included)

powertrain

  • Retarder: engine compression brake
  • Cat C13 engine
  • Auto shift six-speed forward and single speed reverse transmission
  • Cat Clean Emission Module (CEM) and exhaust aftertreatment package
  • Differentials: standard with automatic clutched inter- and cross-axle differential locks
  • Dual circuit oil immersed, enclosed brakes – all wheels
  • Three axle, six-wheel drive

safety

  • Reverse alarm
  • Rearview camera
  • ROPS/FOPS cab

guards

  • Axle
  • Crankcase
  • Rear window
  • Radiator

other standard equipment

  • Vandalism protection: lockable caps
  • Sound suppression (only standard in Europe)
  • Tires, six 750/65 R25
  • S·O·S sampling valves

Optional Equipment

note

  • Standard and optional equipment may vary. Consult your Cat dealer for details.

optional equipment

  • Roof mounted High Intensity Discharge (HID) work lights
  • Cold weather coolant –51° C (–60° F)
  • Machine Security System (MSS)
  • Exhaust heated body
  • Flashing LED beacon
  • Heated/cooled seat
  • Product Link Elite: PLE641 (cellular). Product Link is optional.
  • Fast fuel fill
  • Bluetooth radio stereo system
  • Window blinds
  • Cold weather start attachment
  • Cat Production Measurement payload monitoring system
  • Engine block heater
  • Auto lube installation for automatic greasing of bearings
  • Four-point seat belt
  • Heated rearview motorized mirrors
  • Sound suppression (only standard in Europe)
  • Wheel chocks
  • Infrared glass – high ambient cab
  • Fuel additive – anti-waxing
  • Ether start
  • Bare chassis (no body) standard wheel base
