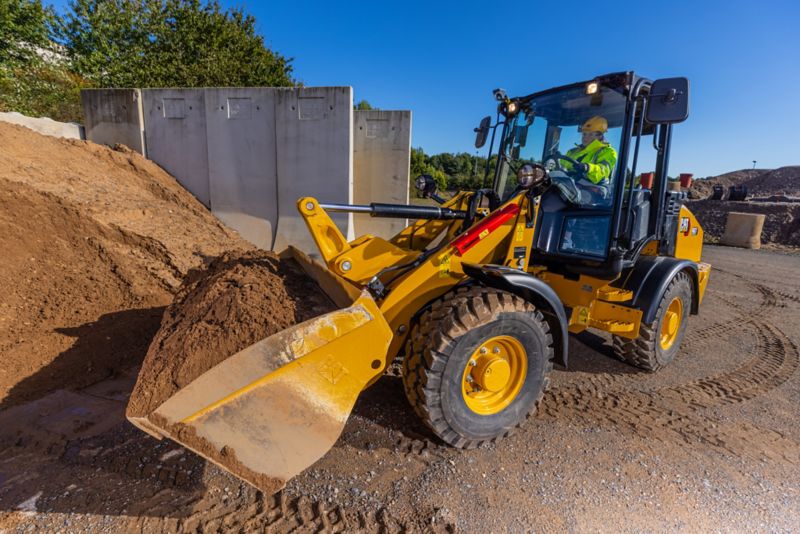

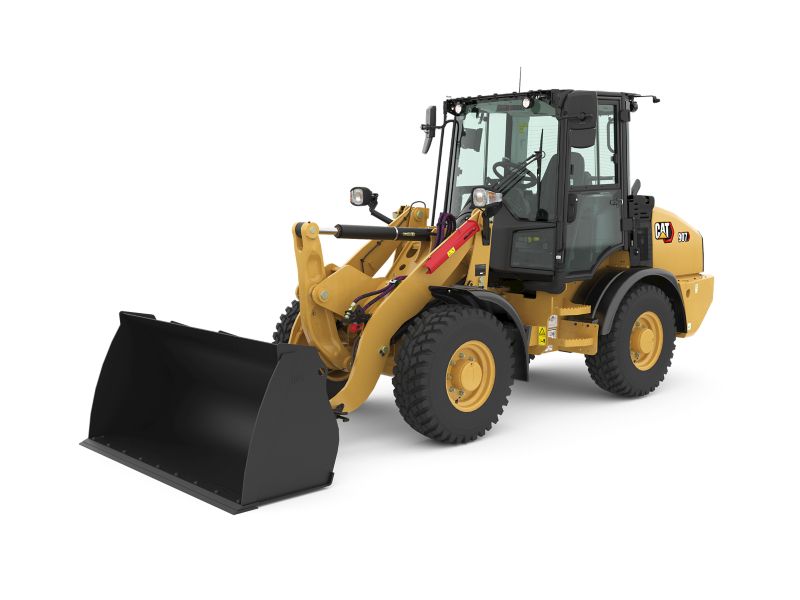

Cat 907 Compact Wheel Loader

new - Products
Cat 907 Compact Wheel Loader

At a glance data:

Maximum Gross Power:

74.7hp

Engine Model:

Cat C2.8*

Maximum Engine Speed:

2550 rpm

Maximum Gross Power - Rated Engine Speed:

2400r/min

Print 907 Compact Wheel Loader Product Brochure Attachments for Compact Wheel Loaders Brochure 906/907/908 Wheel Loaders Family Product Brochure 906/907/908 Options and Accessories Kit Guide

Overview

Cat® wheel loaders set the standard for productivity, fuel efficiency and operator comfort. The Cat 907 Compact Wheel Loader has a high torque C2.8 engine that works in conjunction with an intelligent hystat power train to deliver exceptional fuel efficiency. “Shift on the go” locking differentials and hydrostatic transmission provide smooth and powerful operation while increasing the efficiency of machine cycles.

Category:

Compact Wheel Loaders

Brand:

Cat

Engine

Maximum Gross Power:

74.7hp

Engine Model:

Cat C2.8*

Maximum Engine Speed:

2550 rpm

Maximum Gross Power - Rated Engine Speed:

2400r/min

Maximum Gross Power - SAE J1995:

74.7hp

Maximum Gross Power - ISO 14396:

74.3hp

Maximum Gross Power - ISO 14396 (metric):

75.3mhp

Rated Net Power - Rated Engine Speed:

2400r/min

Rated Net Power - SAE J1349:

72.7hp

Rated Net Power - ISO 9249:

72.1hp

Rated Net Power - 2,400 rpm - ISO 9249 (metric):

73.1mhp

Maximum Gross Torque - SAE J1995:

222lb/ft

Maximum Gross Torque - ISO 14396:

221lb/ft

Maximum Net Torque - SAE J1349:

218lb/ft

Maximum Net Torque - ISO 9249:

217lb/ft

Displacement:

171in³

Bore:

3.54in

Stroke:

4.33in

Note:

*Meets U.S. EPA Tier 4 Final and EU Stage V emission standards.

Note (1):

Advertised power is tested per the specified standard in effect at the time of manufacture.

Note (2):

Net power advertised is the power available at the flywheel.

Note (3):

#Maximum gross and net torque measured at 1,600 rpm.

Weights

Operating Weight:

12765lb

Buckets

Bucket Capacities:

0.75-1.55 m³ (1.0-2.0 yd³)

Bucket Capacities - General Purpose:

0.80-1.35 m³ (1.0-1.7 yd³)

Bucket Capacities - Light Material:

1.25-1.55 m³ (1.6-2.0 yd³)

Multi-Purpose:

0.75-1.1 m³ (1.0-1.4 yd³)

Note:

Bucket selection must be made with an understanding of the material density and application to ensure machine stability is maintained within the tipping loads stated per model and configuration.

Note (1):

Bucket capacities stated include BOCE, in line with ISO 7546.

Service Refill Capacities

Fuel Tank:

24Gal

Cooling System:

3.2Gal

Engine Crankcase:

2.3Gal

Axles - Front Center Differential:

2.3Gal

Axles - Rear Center Differential:

2.3Gal

Hydraulic System - Including Tank:

17.8Gal

Hydraulic Tank:

11.8Gal

Transmission:

0.6Gal

Note:

No Diesel Exhaust Fluid (DEF) fluid needed on this size engine.

Axles

Front:

Fixed (standard), Locking Differential (optional)

Rear:

Fixed (standard), Locking Differential (optional)

Note:

Oscillation of ±11 degrees via hitch between front and rear frames.

Steering

Steering Articulation Angle - Each Direction:

39°

Maximum Flow - Steering Pump:

12.3gpm

Maximum Working Pressure - Steering Pump:

3336psi

Steering Cycle Times – (full left to full right) – at High Idle:

2.8s

Number of Steering Wheel Turns - Full Left to Full Right or Full Right to Full Left:

3.25 turns or 4.00 turns

Transmission

Forward and Reverse - Speed Range Creep#:

6mile/h

Forward and Reverse - Speed Range 1*:

6mile/h

Forward and Reverse - Speed Range 2** - High Speed:

10.5mile/h

Forward and Reverse - Speed Range 2** - Standard:

12mile/h

Forward and Reverse - Speed Range 3***:

25mile/h

Note:

#Factory default shown, can be adjusted to any speed up to 19 km/h (12 mph).

Note (1):

*Creep function not available in this gear or above.

Note (2):

**Max speed dependent on model and configuration (standard vs. high speed transmission).

Note (3):

***Reverse is 30 km/h (19 mph).

Tires

Tire Size - Standard:

*405/70 R18 SPT9

Tire Size - Optional:

405/70 R18 Powerloads

Tire Size - Optional (1):

340/80 R18 XMCL/Bibload

Tire Size - Optional (2):

340/80 R18 TRI 2

Tire Size - Optional (3):

40X14-20 TL, SM/TR

Tire Size - Optional 4:

340/80 R18 Duraforce

Note:

*This tire has been used for all dimension, stability and performance data.

Note (1):

Other tire choices are available. Contact your Cat dealer for details.

Note (2):

Caterpillar recommends that you consult a tire supplier to evaluate all conditions before selecting a tire model.

Cab

ROPS:

ISO 3471:2008

FOPS:

ISO 3449:2005 Level II

Note (1):

Canopy and cab, Rollover Protective Structures (ROPS) are available worldwide. Canopy not available in EU.

Note (2):

The declared dynamic operator sound pressure levels per ISO 6396:2008*, when properly installed and maintained, is 71 dB(A).

Note (3):

*Measurements were conducted with the cab doors and windows closed.

Note (4):

The labelled sound power level for the CE marked configurations when measured according to the test procedure and conditions specified in 2000/14/EC is 101 dB(A). 99 dB(A) Low Sound – Option available.

Loader Hydraulic System

Main Relief - 1st Auxiliary (3rd slice):

3408psi

Main Relief - 1st Auxiliary (3rd slice) - Standard Flow*:

21gpm

Main Relief - 1st Auxiliary (3rd slice) - High Flow*:

32gpm

Main Relief - 2nd Auxiliary (4th slice):

3408psi

Main Relief - 2nd Auxiliary (4th slice) - Flow:

12gpm

Hydraulic Cycle Time - Rackback:

2.2s

Hydraulic Cycle Time - Lift:

Hydraulic Cycle Time - Dump:

1.6s

Hydraulic Cycle Time - Float Down:

2.8s

Note:

* Maximum flow stated, actual flow delta could be 6% from data shown. Also adjustable from 20% to 100% of maximum flow through display.

Dimensions - With HPL-V Coupler - Approximate#

Height: Ground to Cab**:

8.5ft

Height: Ground to Beacon**:

9.08ft

Height: Ground Axle Center**:

1.58ft

Height: Ground Clearance**:

1ft

Length: Overall*:

17.58ft

Length: Rear Axle to Bumper:

4.58ft

Length: Hitch to Front Axle:

3.58ft

Length: Wheel Base:

7.08ft

Length: Front Axle to Front of Coupler:

3.5ft

Clearance: Bucket at 45° *:

8.25ft

Clearance: Load over Height**:

9.5ft

Clearance: Level Bucket**:

9.92ft

Height: Bucket Pin**:

10.67ft

Height: Overall**:

13.5ft

Reach: Bucket at 45° *:

2.33ft

Carry Height: Bucket Pin:

1.08ft

Dig Depth**:

0.33in

Width: Bucket:

6.75ft

Width: Tread Center:

4.67ft

Turning Radius: Over Bucket:

14.75ft

Width: Over Tires:

6.07ft

Turning Radius: Outside of Tires:

12.92ft

Turning Radius: Inside of Tires:

6.75ft

Rack Angle at Full Lift:

56°

Dump Angle at Full Lift:

45°

Rack Angle at Carry:

51°

Departure Angle - Degrees:

30°

Articulation Angle - Degrees:

39°

Operating Weight: Bucket ^:

12689lb

Tipping Load - Straight - ISO 14397-1 †:

9773lb

Tipping Load - Full Turn - ISO 14397-1 †:

8235lb

Operating Weight: Carriage and Tines ^^:

12220lb

Tipping Load - Straight †:

7807lb

Tipping Load - Full Turn †:

6569lb

80% of Tip: Firm and Level EN474-3 ††:

5255lb

Note (1):

*Vary with bucket

Note (2):

**Vary with tire

Note (3):

^Horizontal Pin Lock Coupler (HPL-V) or Vertical Pin Coupler (SSL),1.05 m3 (1.4 yd3) general purpose bucket.

Note (4):

^^Horizontal Pin Lock Coupler (HPL-V) or Vertical Pin Coupler (SSL), class II carriage, 1220 mm (4 ft) tines (500 mm [20 in] load center).

Note (5):

†Full compliance to ISO 14397-1 (2007) Sections 1 thru 6 (fork 500 mm [20 in] load center), which requires 2% verification between calculation and testing.

Note (6):

††Full compliance to EN474-3 and SAE J1197.

Note (7):

#HPL-A weight, tipping and rated loads are within 1% of the HPL-V.

Note (8):

Dimensions listed are for a machine configured with standard cab, heater, 20 km/h (12 mph), standard guarding, 80 kg (176 lb) operator, full fluids, SPT9 405/70 R18 tires and 1.05 m3 (1.4 yd3) general purpose bucket with bolt-on cutting edge or a class II fork carriage and tines, (tire supplier variability can impact dimensions by 2%).

Note (9):

Note: Goodyear POWERLOAD® tires can add up to approximately 140 kg (305 lb) to the full turn tip load and reduce vertical height by approximately 25 mm (1 in) compared to SPT9.

Dimensions - With SSL Coupler - Approximate

Height - Ground to Cab:

8.5ft

Height: Ground to Beacon**:

9.08ft

Height: Ground Axle Center**:

1.58ft

Height - Ground Clearance:

1ft

Length - Overall with Bucket:

18.17ft

Length: Rear Axle to Bumper:

4.58ft

Length: Hitch to Front Axle:

3.58ft

Length - Wheel Base:

7.08ft

Length: Front Axle to Front of Coupler:

4.33ft

Clearance - Bucket at 45°:

7.83ft

Clearance: Load over Height**:

9.5ft

Clearance - Level Bucket:

9.92ft

Height - Bucket Pin:

10.67ft

Height: Overall**:

13.83ft

Reach - Bucket at 45°:

2.67ft

Carry Height: Bucket Pin:

1.17ft

Dig Depth:

3in

Width - Bucket:

6.75ft

Width - Tread Center:

4.67ft

Turning Radius - Over Bucket:

15ft

Width - Over Tires:

6.08ft

Turning Radius: Outside of Tires:

12.92ft

Turning Radius - Inside Tire:

6.75ft

Rack Angle at Full Lift:

51°

Dump Angle at Full Lift:

50°

Rack Angle at Carry:

46°

Departure Angle - Degrees:

30°

Articulation Angle - Degrees:

39°

Operating Weight: Bucket ^:

12897lb

Tipping Load – Straight – ISO 14397-1 †:

8653lb

Tipping Load – Full Turn – ISO 14397-1 †:

7257lb

Operating Weight: Carriage and Tines ^^:

12414lb

Tipping Load - Straight †:

7416lb

Tipping Load - Full Turn †:

6266lb

80% of Tip: Firm and Level EN474-3 ††:

5013lb

Note (1):

*Vary with bucket

Note (2):

**Vary with tire

Note (3):

^Horizontal Pin Lock Coupler (HPL-V) or Vertical Pin Coupler (SSL),1.05 m3 (1.4 yd3) general purpose bucket.

Note (4):

^^Horizontal Pin Lock Coupler (HPL-V) or Vertical Pin Coupler (SSL), class II carriage, 1220 mm (4 ft) tines (500 mm [20 in] load center).

Note (5):

†Full compliance to ISO 14397-1 (2007) Sections 1 thru 6 (fork 500 mm [20 in] load center), which requires 2% verification between calculation and testing.

Note (6):

††Full compliance to EN474-3 and SAE J1197.

Note (7):

#HPL-A weight, tipping and rated loads are within 1% of the HPL-V.

Note (8):

Note (9):

Note: Goodyear POWERLOAD® tires can add up to approximately 140 kg (305 lb) to the full turn tip load and reduce vertical height by approximately 25 mm (1 in) compared to SPT9.

Sustainability

Recyclability:

93%

Standard Equipment

electrical

Product Link™
Service (Electronic Technician™)
Lights, roading, front halogen
Lights, rear stop and turn, LED
Cab mounted fuse panel
Battery disconnect switch
Battery, heavy duty, 12V, 90Ah and 1,000 CCA
Alternator, 100 amp sealed

hydraulics

Motor, single drive with dedicated implement and steering pumps
Multi-function lift and tilt with loader arm float
Joystick, single lever, single auxiliary roller
Implement valve, pressure compensated
Hystat displacement pump, infinitely variable
Caterpillar HYDO™ Advanced 10 hydraulic oil
Coupler/pin on attachment ready
Demand cooling fan, hydraulically driven
Dead engine lower, lift valve, manual
Electro-hydraulic, fully proportional controls
Hydraulic pilot shut off switch, in cab

operator environment

Cab
–Doors (2), fixed glass
–Wipers, front and rear, full front coverage
–Windshield, front single piece
–Window, rear heated
–Radio ready, speakers and wiring
–Air vents, (4) screen, (7) directional
–Heating, mechanical control unit
–Sun visor, solid, front full width
–Interior light (incandescent)
Seat, manual height adjustment, (cab) fabric with adjustable left arm rest, (canopy) vinyl
Joystick, seat mounted, standard multifunction
–FNR, auxiliary roller, speed range select, continuous flow, differential lock, horn
–Arm rest, padded right, multiple position vertical height
Display, analog and digital
–Gauges (2), hydraulic oil, engine coolant
–Digital with soft touch buttons – fuel level, speed range, speedometer, service hour meter, service/maintenance information, hydraulic and power train performance and aggressiveness settings, security passcode (multiple languages)
ROPS/FOPS certified canopy/cab
–12V power outlets, interior/exterior
–Pedals, raised, foot, brake/inching, accelerator
–Lever, parking brake
–Cup holders (2)
–CB radio clip, phone holder
–Door release, internal (left and right)
–Hook, large, coat and hard hat
–Floormat, heavy duty, easy clean
–Mirrors, (2) external breakaway, (1) internal
–Operator station on isolation mounts
–Steering wheel, spinner knob, horn in center
–Seat belt, orange, retractable, 51 mm (2 in)
–Storage, personal (trays [3], seat pocket)
–Steering column, tilt adjusted
–Column mounted multi function control: lights, roading, wipers, self canceling turn signals
–Quick coupler switch, in cab

other

Scheduled Oil Sampling (S·O·S℠) ports, engine oil and hydraulic oil
Recovery hitch with pin
Paint, Electro-Coat primer, gloss topcoat
Machine lifting/tie down points
Lockable, fuel cap, HVAC filters, nose cone
Lockable main and side engine enclosures
Loader arm safety brace
Ground level easy access daily service points
Fenders, front and rear

power train

Fuel pump, priming (manual)/water separator/drain
Engine oil, ECO drain tap and hose
Engine, auto idle shutdown, hibernation mode
Drive shaft, sealed for life, universal joints
Coolant, extended life, –36° C (–33° F)
Closed circuit breather
Axles, heavy duty, frame mounted with outboard planetary reduction
Air cleaner, two stage filter, with in cab audio/visual indicator on display
Cat C2.8 engine
–Diesel particulate filter (Fit for Life)
–Fuel, diesel, ultra low or low Sulphur
–Hydrostatic transmission, two speed, with inching function, “shift on the go”
–Power train mode, hystat
U.S. EPA Tier 4 Final and EU Stage V emissions compliant

Optional Equipment

electrical

Work tool wiring harness, (3) in cab switches
Push to start
Lighting packages, multiple; front, rear, engine bay (LED or HAL)

hydraulics

Quick disconnect auxiliary hydraulics
Reversing fan
Ride Control or load check valves
Connect under pressure and case drain
Caterpillar Bio HYDO Advanced hydraulic oil
Auxiliary flow, single standard (3) valve, single high flow (3) valve, dual high flow (4) valve

operator station

USB ports (2), interior
Sun visor, rear perforated
Storage, lockable box or lockable cooled box
Soft touch keypad options, 8 or 16 button
Secondary display, front or rear view camera
Seat packages; deluxe or premium
Seat belt options, multiple
Radio, FM or digital audio broadcast
Phone holder, spring loaded
Mirrors (2) electronically adjustable, heated external, plus lower parabolic mirror
Joystick, FNR, twin auxiliary roller, differential lock, horn
Interior light, door activated
Doors, sliding windows (left and right)
Air Conditioning, automatic temperature control (ATC)

other

Rotary sensors (snubbing, kickouts, parallel)
Couplers, vertical (SSL), horizontal (HPL-V, HPL-A)

power train

Power train mode, utility (includes keypad)
40 km/h (25 mph) hydrostatic transmission, 3-speed, “shift on the go”, secondary steering and boosted brakes
Fuel pump, priming, manual
Creep and throttle lock function
Cold start – jacket water heater, bypass valve
Antifreeze, extended life coolant, –50° C (–58° F)
