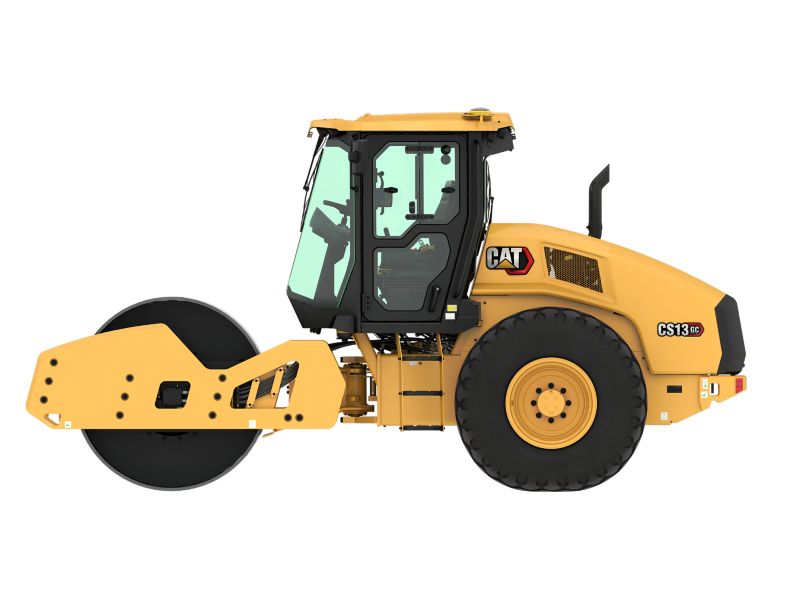

CS13 GC Vibratory Soil Compactor

At a glance data:

Gross Power:

122.9hp

Engine Power - ISO 14396:

121hp

Net Power - ISO 9249:

112.2hp

Net Power - SAE J1349:2011:

111.2hp

Print Download Brochure CS13 GC Product Brochure Vibratory Soil Compactor Selection Guide Paving Product Line Brochure Cat Technologies for Soil Compaction

Overview

The Cat® CS13 GC Vibratory Soil Compactors bring a balance of easy operation, low operating costs and performance-boosting technology to the jobsite. Using a proven vibratory system designed for high reliability, the CS13 GC smooth drum roller is ideally suited for granular soil applications or cohesive soil applications with the use of an optional padfoot shell kit.

Category:

Vibratory Soil Compactors

Brand:

Cat

Engine

Gross Power:

122.9hp

Engine Power - ISO 14396:

121hp

Net Power - ISO 9249:

112.2hp

Net Power - SAE J1349:2011:

111.2hp

Note (1):

Net power advertised is the power available at the engine flywheel when equipped with a fan at maximum speed, air cleaner, clean emissions module, and alternator.

Engine Model:

Cat® C3.6

Emissions:

U.S. EPA Tier 4 Final, EU Stage V, Korea Stage V

Stroke:

4.7in

Bore:

3.9in

Weights

Operating Weight - With Cab:

27900lb

Operating Weight - With ROPS/FOPS Canopy:

27560lb

Weight - Drum with Cab:

17051lb

Weight - Drum with ROPS/FOPS Canopy:

16955lb

Note (1):

Operating weights are approximate and consider full fluids and 75 kg (165 lb) operator. Cab weights include heat and air conditioning.

Vibratory System

Nominal Amplitude - High:

0.079in

Nominal Amplitude - Low:

0.039in

Centrifugal Force - Maximum:

56200lb

Centrifugal Force - Minimum:

33500lb

Static Linear Load - With Cab:

202.9lb/in

Static Linear Load - With ROPS/FOPS Canopy:

201.8lb/in

Dimensions

Compaction Width:

84in

Overall Length:

18.7ft

Overall Width:

7.5ft

Maximum Height:

9.9ft

Drum Diameter:

60.4in

Wheel Base:

9.8ft

Operating Specifications

Ground Clearance:

20.4in

Curb Clearance:

19.4in

Turning Radius - Inside Drum Edge:

12.7ft

Travel Speed - Maximum:

6.8mile/h

Service Refill Capacities

Fuel Tank Capacity:

56.3gal (US)

DEF Tank:

5gal (US)

Cooling System:

4.9gal (US)

Engine Oil - With Filter:

3.1gal (US)

Eccentric Weight Housings (combined):

6.9gal (US)

Axle and Final Drives:

2.6gal (US)

Hydraulic Tank:

6.1gal (US)

Sustainability

Recyclability:

95%

Standard Equipment

note

Standard and optional equipment may vary. Consult your Cat dealer for details.

operator environment

ROPS/FOPS Canopy with Handrails, Floor Mat, Interior Rear View Mirror
Vinyl Suspension Seat
Adjustable Tilting Steering Column
High Visibility 76 mm (3 in) Seat Belt
12-Volt Power Outlet
Horn, Backup Alarm

vibratory system

Smooth Drum
Pod-Style Eccentric Weight Housings
Dual Amplitude, Dual Frequency
Auto-vibe Function
Rear Adjustable Steel Scraper

technology solutions

VisionLink®
Remote Flash
Remote Troubleshoot
Remote Disable

powertrain

Cat® C3.6 Engine
Single Propel Pump
Fuel Filter, Water Separator, Priming Pump, Water Indicator
Eco-Mode
Radiator/Hydraulic Oil Cooler
Dual Braking System
Two-Speed Hydrostatic Transmission
Limited Slip Differential

electrical

12 -Volt Electrical System
150-Amp Alternator
900 Cold-cranking Amps Battery Capacity
Battery Disconnect Switch

other

Sight Gauges for Hydraulic Oil Level and Radiator Coolant Level
Scheduled Oil Sampling (S·O·S℠) Ports: Engine Oil, Hydraulic Oil, and Coolant
Working Lights (2 Forward, 2 Rear)
