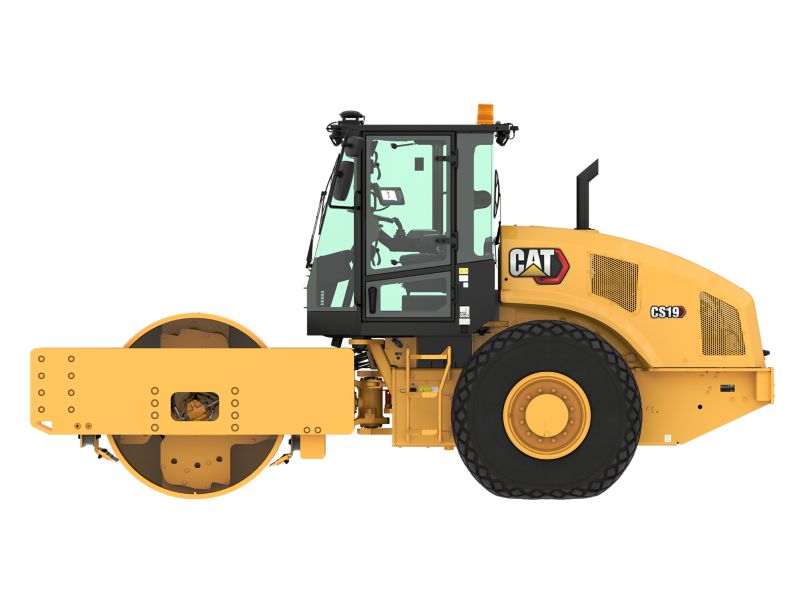

CS19 Vibratory Soil Compactor

At a glance data:

Gross Power:

175.7hp

Engine Power - ISO 14396:

173.5hp

Net Power - ISO 9249:

147.1hp

Net Power - SAE J1349:2011:

145.2hp

Print Download Brochure CS19 Product Brochure Vibratory Soil Compactor Selection Guide Paving Product Line Brochure Cat Technologies for Soil Compaction

Overview

The Cat® CS19 Vibratory Soil Compactor features a smooth drum and is ideally suited for granular soil applications or cohesive soil applications with the use of an optional padfoot shell kit. A reliable propel system improves performance and efficiency and compaction technology solutions help you reach target density faster.

Category:

Vibratory Soil Compactors

Brand:

Cat

Engine

Gross Power:

175.7hp

Engine Power - ISO 14396:

173.5hp

Net Power - ISO 9249:

147.1hp

Net Power - SAE J1349:2011:

145.2hp

Note (1):

Net power advertised is the power available at the engine flywheel when equipped with a fan at maximum speed, air cleaner, clean emissions module, and alternator.

Engine Model:

Cat® C4.4

Emissions:

U.S. EPA Tier 4 Final, Japan 2014

Stroke:

5in

Bore:

4.1in

Weights

Operating Weight - With Cab:

41641lb

Weight - Drum with Cab:

29637lb

Note (1):

Operating weights are approximate and consider full fluids and 80 kg (176 lb) operator. Cab weights include heat and air conditioning.

Vibratory System

Vibratory Frequency - Standard:

1680VPM

Variable Frequency Option Range:

23.3 - 28 Hz (1400-1680 vpm)

Nominal Amplitude - High:

0.083in

Nominal Amplitude - Low:

0.039in

Centrifugal Force - Maximum:

75234lb

Centrifugal Force - Minimum:

35163lb

Static Linear Load - With Cab:

348.8lb/in

Dimensions

Compaction Width:

84in

Overall Length:

20.1ft

Overall Width:

8.1ft

Maximum Height:

10.2ft

Drum Diameter:

60.4in

Wheel Base:

9.5ft

Operating Specifications

Ground Clearance:

16.8in

Curb Clearance:

21.1in

Turning Radius - Inside Drum Edge:

12.1ft

Travel Speed - Maximum:

7.1mile/h

Service Refill Capacities

Fuel Tank Capacity:

81.1gal (US)

DEF Tank:

5gal (US)

Cooling System:

7.4gal (US)

Engine Oil - With Filter:

3.1gal (US)

Eccentric Weight Housings (combined):

6.9gal (US)

Axle and Final Drives:

6.3gal (US)

Hydraulic Tank:

13.2gal (US)

Sustainability

Recyclability:

96%

Standard Equipment

note

Standard and optional equipment may vary. Consult your Cat dealer for details.

operator environment

ROPS/FOPS Cab with Climate Control, Cloth Seat, Exterior Rear View Mirrors
Adjustable Seat with Integrated Console
LCD Display with Lockable Vandalism Guard
Adjustable Tilting Steering Column with Integrated Cup Holders
Rear Vision Camera System with Color Touchscreen Display
High Visibility 50 mm (2 in) Seat Belt
12-volt Power Outlet
Horn, Backup Alarm

vibratory system

Smooth Drum
Pod-Style Eccentric Weight Housings
Dual Amplitude, Single Frequency
Auto-vibe Function
Single Adjustable Steel Scraper

technology solutions

VisionLink®

powertrain

Cat® C4.4 Engine
Air Cleaner, Dual Element
Three Speed Throttle Switch including Eco-mode
Automatic Speed Control (ASC)
Dual Propel Pumps; One for Drum Drive, One for Rear Axle
Fuel Filter, Water Separator, Priming Pump, Water Indicator
Tilting Radiator / Hydraulic Oil Cooler
Dual Braking System
Two-Speed Hydrostatic Transmission
Limited Slip Differential

electrical

24 volt Electrical System
100 ampere Alternator
750 Cold-cranking Amps Battery Capacity

other

Lockable Engine Enclosure, Hydraulic and Fuel Tanks
Sight Gauges for Hydraulic Oil Level and Radiator Coolant Level
S·O·S℠ Sampling Values: Engine Oil, Hydraulic Oil, and Coolant
Halogen Working Lights (4)
