At a glance data:
Gross Power - SAE J1995:2014:
562hp
Net Power - SAE J1349:2011:
496hp
Net Power - ISO 9249:2007:
502hp
Engine Model:
Cat® C18
Overview

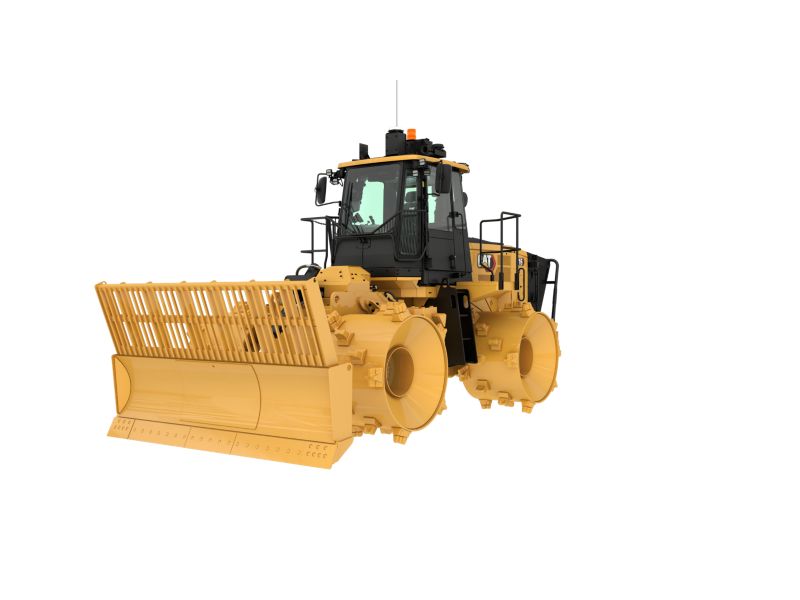

Cat Landfill Compactors are designed with durability built in, ensuring maximum availability through multiple life cycles. With optimized performance and simplified serviceability, our machines allow you to operate more efficiently and safely. Introduced in 1993, the 836 has been an industry leader for over 30 years. Focused on helping our customers succeed, we have continued to build upon each new series. The 836 continues our legacy of reliability, performance, safety, operator comfort, serviceability, and efficiency.
Category:
Landfill Compactors
Category:
Landfill Compactors
Brand:
Caterpillar
Brand:
Caterpillar
Engine
Gross Power - SAE J1995:2014:
562hp
Net Power - SAE J1349:2011:
496hp
Net Power - ISO 9249:2007:
502hp
Engine Model:
Cat® C18
Emissions:
Option 1 - U.S. EPA Tier 4 Final, EU Stage V, Korea Stage V and Japan 2014
Rated Speed:
1900 rpm
Engine Power - ISO 14396:2002:
553hp
Emissions:
Option 2 - Brazil MAR-1, equivalent to U.S. EPA Tier 3/EU Stage IIIA
Rated Speed:
1900 rpm
Net Power - SAE J1349:2011:
496hp
Net Power - ISO 9249:2007:
502hp
Gross Power - SAE J1995:2014:
562hp
Engine Power - ISO 14396:2002:
553hp
Peak Torque ( 1,400 rpm ):
2275lbf·ft
Torque Rise:
52%
Bore:
5.71in
Stroke:
7.2in
Displacement:
1104.5in³
High Idle Speed:
2120r/min
Low Idle Speed:
750r/min
Maximum Altitude - Without Derating:
7500ft
Note:
Net power advertised is the power available at the engine flywheel when the engine is equipped with a fan, air cleaner, clean emissions module and alternator.
Operating Specifications
Operating Weight (Tier 4 Final/Stage V):
124063lb
Operating Weight (Tier 3/Stage IIIA equivalent):
123321lb
Maximum Operating Weight (Tier 4 Final/Stage V):
126364lb
Maximum Operating Weight (Tier 3/Stage IIIA equivalent):
125622lb
Transmission
Transmission Type:
Planetary - Powershift - ECPC
Direct Drive - Forward 1:
4.3mile/h
Direct Drive - Forward 2:
7.8mile/h
Direct Drive - Reverse 1:
4.6mile/h
Direct Drive - Reverse 2:
8.2mile/h
Hydraulic System - Lift
Lift System - Circuit:
Flow Sharing Implement; Pilot Operated LS Valve w/EH
Lift System - Pump:
Variable displacement piston
Max Flow @ 2000 rpm:
79gpm
Relief Valve Setting - Lift:
4206psi
Cylinders, Double Acting: Lift, Bore, Stroke:
137.9 mm x 1021 mm (5.5 in x 40.2 in)
Pilot System:
Variable displacement piston
Pilot Relief Valve Setting:
551psi
Hydraulic System - Steering
Steering System - Circuit:
Flow Sharing Implement; Pilot, load sensing
Steering System - Pump:
Piston – Variable Displacement
Max Flow @ 2000 rpm:
79gpm
Relief Valve Setting - Steering:
3495lb/in²
Total Steering Angle:
86°
Steering Cycle Times - High Idle:
3.9s
Steering Cycle Times - Low Idle:
6.4s
Service Refill Capacities
Fuel Tank:
209.0gal (US)
Diesel Exhaust Fluid Tank:
9gal (US)
Cooling Systems - Tier 4 Final/EU Stage V:
40gal (US)
Cooling System - Tier 3/Stage IIIA Equivalent:
37.2gal (US)
Engine Crankcase:
16gal (US)
Transmission:
21.9gal (US)
Differential - Final Drives - Front:
49.0gal (US)
Differential - Final Drives - Rear:
50.0gal (US)
Hydraulic System - Implement/Steering:
46.2gal (US)
Hydraulic Tank Only:
27.2gal (US)
Note:
Cat U.S. EPA Tier 4 Final, EU Stage V, Korea Stage V and Japan 2014 diesel engines are required to use ULSD (ultra-low sulfur diesel fuel with 15 ppm of sulfur or less) and are compatible* with ULSD blended with the following lower-carbon intensity fuels** up to: • 20% biodiesel FAME (fatty acid methyl ester)*** • 100% renewable diesel, HVO (hydrotreated vegetable oil) and GTL (gas-to-liquid) fuels • Cat engines meeting Brazil MAR-1 emissions standards, equivalent to U.S. EPA Tier 3 and EU Stage IIIA, are compatible with diesel fuel blended with the following lower-carbon intensity fuels** up to: • 100% biodiesel FAME (fatty acid methyl ester)*** • 100% renewable diesel, HVO (hydrotreated vegetable oil) and GTL (gas-to-liquid) fuels Refer to guidelines for successful application. Please consult your Cat dealer or “Caterpillar Machine Fluids Recommendations” (SEBU6250) for details. * While Caterpillar engines are compatible with these alternative fuels, some regions may not allow their use. ** Tailpipe greenhouse gas emissions from lower-carbon intensity fuels are essentially the same as traditional fuels. *** Engines with no aftertreatment devices can use higher blends, up to 100% biodiesel (for use of blends higher than 20% biodiesel, consult your Cat dealer).
Air Conditioning System
Air Conditioning:
The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a or R1234yf. See the label or instruction manual for identification of the gas. • If equipped with R134a (Global Warming Potential = 1430), the system contains 1.4 kg (3.1 lb) of refrigerant which has a CO2 equivalent of 2.002 metric tonnes (2.206 tons).
Axles
Front:
Planetary – Fixed
Rear:
Planetary – Oscillating
Oscillation Angle:
±6°
Braking System
Service Brakes:
Multi Disc Wet (Enclosed) 2 WHL
Parking Brake:
Spring Applied, Hydraulic Released
Sound Performance - Tier 4 Final / Stage V
Operator Sound Pressure Level (ISO 6396:2008):
72dB(A)
Machine Sound Power Level (ISO 6395:2008):
112dB(A)
Operator Sound Pressure Level (ISO 6396:2008)*:
72dB(A)
Machine Sound Power Level (ISO 6395:2008)*:
109dB(A)
Note (1):
* Sound suppression equipped
Note (2):
The machine sound power level was measured according to ISO 6395:2008. The measurement was conducted at 70% of the maximum engine cooling fan speed.
Note (3):
The operator sound pressure level was measured according to ISO 6396:2008. The measurement was conducted at 70% of the maximum engine cooling fan speed.
Note (4):
Hearing protection may be needed when the machine is operated with a cab that is not properly maintained or when the doors or windows are open for extended periods or in a noisy environment.
Sound Performance - Tier 3 / Stage IIIA
Operator Sound Pressure Level (ISO 6396:2008):
72dB(A)
Machine Sound Power Level (ISO 6395:2008):
112dB(A)
Operator Sound Pressure Level (ISO 6396:2008)*:
72dB(A)
Machine Sound Power Level (ISO 6395:2008)*:
110dB(A)
Note (1):
* Sound suppression equipped
Note (2):
The machine sound power level was measured according to ISO 6395:2008. The measurement was conducted at 70% of the maximum engine cooling fan speed.
Note (3):
The operator sound pressure level was measured according to ISO 6396:2008. The measurement was conducted at 70% of the maximum engine cooling fan speed.
Note (4):
Hearing protection may be needed when the machine is operated with a cab that is not properly maintained or when the doors or windows are open for extended periods or in a noisy environment.
Dimensions (Approximate)
Height to Top of Beacon:
15.2ft
Height to Top of Air Conditioning Condenser:
15.2ft
Height - Cab Roof:
14.1ft
Height - Top of Exhaust Pipe:
15.1ft
Height - Top of Hood:
11.3ft
Ground Clearance to Hitch:
2.1ft
Ground Clearance to Transmission Guard:
2.1ft
Ground Clearance to Bottom of Bumper:
3.2ft
Centerline of Rear Axle to Rear Compactor Guard:
11.3ft
Hitch to Centerline of Front Axle:
7.5ft
Wheel Base:
14.9ft
Width over Front Striker Bars:
12.9ft
Width over Rear Striker Bars:
12.9ft
Width over Platform:
10.5ft
Width over Drums:
14.0ft
Overall Machine Length with Semi U-Blade:
35.8ft
Straight Blade
Capacity:
25.9yd³
Overall Width:
17.0ft
Height:
7.4ft
Height of Cutting Edge:
3.7ft
Digging Depth:
1.2ft
Ground Clearance:
5.7ft
Turning Radius – Outside Corner of Blade:
28.7ft
Turning Radius - Inside of Wheels:
11.9ft
Weight:
6894lb
Total Operating Weight:
123000lb
Semi U-Blade
Capacity:
29.3yd³
Overall Width:
17.4ft
Height:
7.5ft
Height of Cutting Edge:
4.1ft
Digging Depth:
1.2ft
Ground Clearance:
5.7ft
Turning Radius – Outside Corner of Blade:
28.9ft
Turning Radius – Inside of Wheels:
11.9ft
Weight:
7963lb
Total Operating Weight:
124063lb
U-Blade
Capacity:
33.6yd³
Overall Width:
17.4ft
Height:
7.2ft
Height of Cutting Edge:
4.1ft
Digging Depth:
3.1ft
Ground Clearance:
3.9ft
Turning Radius – Outside Corner of Blade:
28.8ft
Turning Radius – Inside of Wheels:
11.9ft
Weight:
7696lb
Total Operating Weight:
123785lb
Wheels
Combination Tips (Weight Group):
28250lb
Plus Tips - Weight (Group):
29784lb
Paddle Tips - Weight (Group):
272227lb
Diamond Tips Weight (Group):
32659lb
Outside Diameter:
83.8in
Outside Diameter - Diamond:
84.3in
Drum Diameter:
69.7in
Drum Width:
55.1in
Feet Per Row:
8
Feet Per Wheel:
40
Replaceable:
Weld on
Width Over Drums:
4280mm
Tip Height:
179mm
Tip Height - Diamond:
7.25in
Standard Equipment
note
- Standard and optional equipment may vary. Consult your Cat dealer for details.
powertrain
- Advanced Productivity Electronic Control System (APECS)
- Air-to-air aftercooler
- Brakes, fully hydraulic, enclosed, wet multiple disc brakes
- Cat Clean Emission Module (Tier 4 Final/Stage V only)
- Electro hydraulic parking brake
- Engine, Cat C18 configured for two emissions options: Tier 4 Final/Stage V, Korea Stage V, and Japan 2014 or Brazil MAR-1 (Tier 3/Stage IIIA equivalent)
- Fuel priming pump, electric
- Fuel-to-air cooler
- Ground level emergency engine shutdown switch
- Guard (3 piece) transmission
- Heat shield, turbo and exhaust manifold
- Hydraulically driven demand fan
- Integrated braking
- Radiator, Aluminum Modular Radiator (AMR)
- Separated cooling system
- Starting aid (ether)
- Throttle lock
- Torque converter with lockup clutch (LUC)
- Turbine precleaner, engine air intake
- Transmission, planetary, with 2F/2R speed range control
- Underhood ventilation system
electrical
- Alarm, back-up
- Alternator, 150 amp
- Batteries, maintenance-free (4-1,000 CCA)
- Converter, 10-15 amp, 24V to 12V
- Lighting system, LED (front and rear)
- Lighting, access stairway
- Starter, electric (heavy duty)
- Starter lockout (ground level)
- Auxiliary jump start receptacle
- Transmission lockout (ground level)
operator environment
- Air conditioner w/roof-mounted condenser
- Cab, sound-suppressed and pressurized
- Internal four-post rollover protective structure/falling objects protective structure (ROPS/FOPS)
- Radio ready for (entertainment) includes antenna, speakers and converter (12V, 10-15 amp) 12V power port for mobile phone or laptop connection
- Camera, rear vision
- Coat and hard hat hooks
- Flip-up armrest
- Heater and defroster
- Horn group (trumpet)
- Hydraulic controls (floor mounted)
- Implement hydraulic lockout
- Light, (dome) cab
- Lunchbox and beverage holders
- Instrumentation, Gauges: – DEF fluid level (Tier 4 Final/Stage V) – Hydraulic oil temperature – Speedometer/tachometer – Torque converter temperature
- Instrumentation, Warning Indicators: – Action alert system, three category – Axle/brake oil temp, front – Brake oil pressure – Electrical system, low voltage – Engine failure malfunction alert and action lamp
- Mirrors, heated, rearview (externally mounted)
- Radio, CB (ready)
- Premium plus seat containing forced air heating and cooling, 2-way thigh adjustment, power lumbar and back bolster adjustment, ride stiffness adjustment, dynamic end dampening, and leather finish
- Seat belt with minder, retractable, 76 mm (3") wide
- Steering and Transmission Integrated Control (STIC™) system with lockout
- Glass (window) - rubber mounted glass
- Transmission gear (indicator)
- Vital Information Management System (VIMS™) with graphical information display: external data port, customizable operator profiles
- Wet-arm wipers/washers (front and rear)
- Intermittent wipers (front and rear)
wheels and cleaner bars
- Striker bars
guards
- Guards, axle (front and rear)
- Guards, cab window
- Guards, crankcase and powertrain, hydraulically powered
- Guard, driveshaft
- Guard, differential
- Guards, rear fan and grill
blades
- Bulldozer arrangement is included in the standard equipment. Bulldozer blades are optional.
fluids
- Antifreeze, premixed 50% concentration of extended life coolant with freeze protection to –34° C (–29° F)
other standard equipment
- Auto Blade Positioner (ABP)
- Demand fan/swing out (hydraulic reversible)
- Doors, service access locking
- Ecology drains for engine, radiator, hydraulic tank
- Electronic clutch pressure control and remote mounted pressure taps
- Emergency righthand platform exit
- Engine, crankcase, 500 hour interval with CJ-4 oil
- Fuel tank, 793 L (210 gal)
- Hitch, drawbar with pin
- Hoses, Cat XT™
- Hydraulic, engine, and transmission oil coolers
- Hydraulic, steering and brake filtration/screening system
- Oil sampling valves
- Product Link™ - Cellular
- Stairways, fixed-L/R (rear access)
- Steering, load sensing
- Vandalism protection caplocks
- Venturi stack
Optional Equipment
note
- Standard and optional equipment may vary. Consult your Cat dealer for details.
various blades:
- Straight blade
- U-blade
- Semi U-blade
various tip and wheel arrangements:
- Paddle
- Plus
- Diamond
wheels and cleaner bars
- Wheels and tips: wheel arrangements - 7" combination tips
