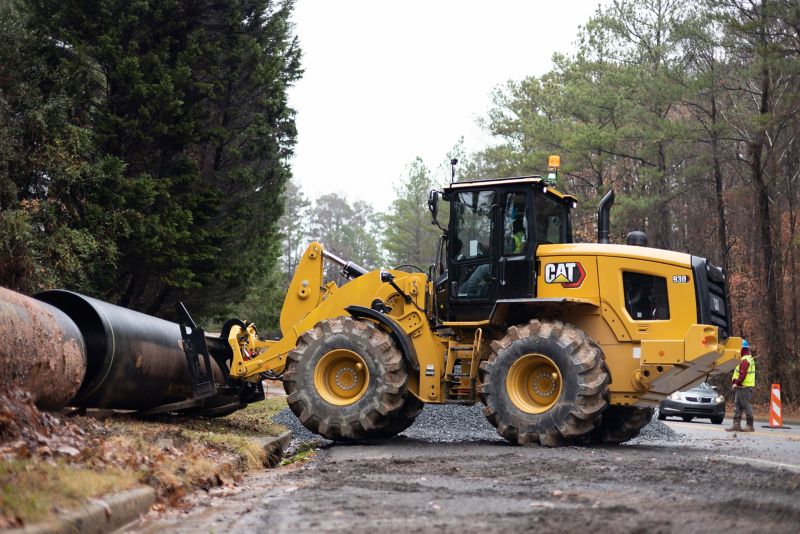

930 Small Wheel Loader

new - Products
930 Small Wheel Loader

At a glance data:

Rated Gross Power - SAE J1995:

170hp

Engine Model:

Cat C7.1*

Performance Mode:

Automatic

Rated Gross Power - Rated Engine Speed:

1800r/min

Print 930 Product Brochure 926/930/938 Small Wheel Loader Family Product Brochure Small Wheel Loader Attachments Brochure

Overview

Cat® wheel loaders set the standard for productivity, fuel efficiency, operator comfort and low operating costs. The Cat 930 Small Wheel Loader features a high torque C7.1 engine that works in conjunction with an intelligent hydrostatic power train to deliver exceptional fuel efficiency. Meets U.S. EPA Tier 4 Final and EU Stage V emission standards, designed to manage itself so you can concentrate on your work. Extended service intervals to 1000 hours reduce fluid and filter use by up to 45% (compared to previous M Series models) while keeping operating cost low.

Category:

Small Wheel Loaders

Brand:

Cat

Engine

Rated Gross Power - SAE J1995:

170hp

Engine Model:

Cat C7.1*

Performance Mode:

Automatic

Rated Gross Power - Rated Engine Speed:

1800r/min

Rated Gross Power - SAE J1995 (DIN):

172mhp

Rated Engine Power - ISO 14396:

168hp

Rated Engine Power - ISO 14396 (DIN):

170mhp

Rated Net Power - SAE J1349 at Minimum Fan Speed:

165hp

Rated Net Power - ISO 9249 at Minimum Fan Speed:

165hp

Rated Net Power - ISO 9249 (DIN) at Minimum Fan Speed:

167mhp

Maximum Gross Torque - Engine Speed:

1400r/min

Maximum Gross Torque - SAE J1995:

608ft·lbf

Maximum Gross Torque - ISO 14396:

601ft·lbf

Maximum Net Torque - SAE J1349:

593ft·lbf

Maximum Net Torque - ISO 9249:

595ft·lbf

Displacement:

427in³

Bore:

4in

Stroke:

5in

Note:

*Meets U.S EPA Tier 4 Final, EU Stage V off-highway, and Japan 2014 emission standards.

Note (1):

Advertised power is tested per the specified standard in effect at the time of manufacture

Note (2):

Net power ratings are tested at the reference conditions for the specified standard and denote power available at the flywheel when engine is equipped with alternator, air cleaner, emission components and fan at specified speed.

Note (3):

No derating required up to 3000 m (10,000 ft) altitude. Auto derate protects hydraulic and transmission systems.

Weights

Operating Weight:

31124lb

Operating Weight - High Lift:

31633lb

Buckets

Bucket Capacities:

1.9-5.0 m3 (2.5-6.5 yd3)

Steering

Steering Cylinder - Bore Diameter:

2.8in

Steering Cylinder - Rod Diameter:

1.6in

Steering Cylinder - Stroke:

17.2in

Maximum Flow - Steering Pump:

34gpm

Maximum Working Pressure - Steering Pump:

3500psi

Steering Cycle Times (Full Left to Full Right) - Minimum RPM: Pump Flow Limited:

2.8s

Steering Cycle Times (Full Left to Full Right) - Maximum RPM: 90 RPM Steering Wheel Speed:

2.4s

Loader Hydraulic System

Maximum Flow - Implement Pump:

50gpm

Maximum Flow - Implement Pump - 3rd Function Maximum Flow*:

50gpm

Maximum Flow - Implement Pump - 4th Function Maximum Flow*:

42gpm

Maximum Working Pressure - Implement Pump:

3771psi

Relief Pressure - Tilt Cylinder:

4061psi

Relief Pressure - Tilt Cylinder - 3rd and 4th Function Maximum Working Pressure:

3771psi

Relief Pressure - Tilt Cylinder - 3rd and 4th Function Relief Pressure:

4061psi

Lift Cylinder: Standard Lift Linkage - Bore Diameter:

4.7in

Lift Cylinder: Standard Lift Linkage - Rod Diameter:

2.6in

Lift Cylinder: Standard Lift Linkage - Stroke:

28.7in

Tilt Cylinder: Standard Lift Linkage - Bore Diameter:

5.9in

Tilt Cylinder: Standard Lift Linkage - Rod Diameter:

3.5in

Tilt Cylinder: Standard Lift Linkage - Stroke:

21.9in

Hydraulic Cycle Time - Raise, Ground Level to Maximum Lift:

5.1s

Hydraulic Cycle Time - Dump (at Maximum Lift Height):

1.5s

Hydraulic Cycle Time - Float Down, Maximum Lift to Ground Level:

2.7s

Hydraulic Cycle Time - Total Cycle Time:

9.3s

Note:

*3rd and 4th function flow is fully adjustable from 20% to 100% of maximum flow through the secondary display when equipped.

Service Refill Capacities

Fuel Tank:

51.5gal (US)

Cooling System:

7.9gal (US)

Engine Crankcase:

5.3gal (US)

Transmission - Gear Box:

2.2gal (US)

Front Axles:

6.9gal (US)

Rear Axles:

6.6gal (US)

Hydraulic System - Including Tank:

43.6gal (US)

Hydraulic Tank:

23.8gal (US)

Diesel Exhaust Fluid (DEF) Tank:

5gal (US)

Note:

DEF used in Cat systems must meet the requirements outlined in the International Organization for Standardization (ISO) standard 22241-1:2019.

Transmission

Forward and Reverse - Range 1*:

1-13 km/h (0.6-8 mph)

Forward and Reverse - Range 2:

8mile/h

Forward and Reverse - Range 3:

17mile/h

Forward and Reverse - Range 4:

25mile/h

Note:

*Creeper control allows maximum speed range adjustability from 1 km/h (0.6 mph) to 13 km/h (8 mph) in Range 1 through the secondary display when equipped. Factory default is 7 km/h (4.4 mph).

Tires

Standard Size:

20.5 R25, radial (L-3)

Other Choices Include:

20.5 R25, radial (L-2), 20.5 R25, radial (L-5), 20.5-25 12PR (L-2), 20.5-25 12PR (L-3), 20.5-25 16PR (L-5), 17.5 R25, radial (L-2), 17.5 R25, radial (L-3), 17.5 R25, radial (L-5), 550/65 R25 radial (L-3), Skidder/Agriculture

Note (1):

Other tire choices are available. Contact your Cat dealer for details.

Note (2):

In certain applications, the loader’s productive capabilities may exceed the tire’s tonnes-km/h (ton-mph) capabilities.

Note (3):

Caterpillar recommends that you consult a tire supplier to evaluate all conditions before selecting a tire model.

Cab

ROPS:

ISO 3471:2008

FOPS:

ISO 3449:2005 LEVEL II

Axles

Front:

Fixed; Locking differential (standard)

Rear:

Oscillating ± 11 degrees; Open differential (standard); Limited slip differential (optional)

Air Conditioning System

Air Conditioning:

The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 1.9 kg (4.2 lb) of refrigerant which has a CO2 equivalent of 2.717 metric tonnes (2.99 tons).

Sound

Operator Sound Pressure (ISO 6396:2008):

68dB(A)

Average Exterior Sound Pressure (ISO 6395:2008):

101dB(A)

Note (1):

European Union Directive 2000/14/EC and UK Noise Regulation 2001 No. 1701.

Sustainability

Recyclability:

95%

Dimensions with Bucket - Standard Lift

Height - Ground to Cab**:

10.92ft

Height - Ground to Beacon**:

12.17ft

Height - Ground to Axle Center**:

2.25ft

Height - Ground Clearance**:

1.33ft

Length - Overall*:

24.67ft

Length - Rear Axle to Bumper:

6.5ft

Length - Hitch to Front Axle:

4.92ft

Length - Wheel Base:

9.83ft

Clearance - Bucket at 45°*:

9.25ft

Clearance - Load over Height**:

10.9ft

Clearance - Level Bucket**:

11.75ft

Height - Bucket Pin**:

12.83ft

Height - Overall**:

16.9ft

Reach - Bucket at 45°*:

3.5ft

Carry Height - Bucket Pin:

1.25ft

Dig Depth**:

3.9in

Width - Bucket:

8.33ft

Width - Tread Center:

6.33ft

Turning Radius - Over Bucket:

19.5ft

Width - Over Tires:

8.33ft

Turning Radius - Outside of Tires:

17.75ft

Turning Radius - Inside of Tires:

9.33ft

Rack Angle at Full Lift:

54°

Dump Angle at Full Lift:

49°

Rack Angle at Carry:

43°

Departure Angle:

33°

Articulation Angle:

40°

Operating Weight:

31124lb

Note (1):

*Vary with bucket.

Note (2):

**Vary with tire.

Note (3):

Dimensions listed are for a machine configured with 2.1 m³ (2.7 yd³) general purpose Fusion™ bucket, bolt-on cutting edge, standard counterweights, additional guarding, 80 kg (176 Ib) operator and 20.5 R25 (L-3) XHA2 tires.

Dimensions with Bucket - High Lift

Height - Ground to Cab**:

10.92ft

Height - Ground to Beacon**:

12.17ft

Height - Ground to Axle Center**:

2.25ft

Height - Ground Clearance**:

1.33ft

Length - Overall*:

27.3ft

Length - Rear Axle to Bumper:

6.5ft

Length - Hitch to Front Axle:

4.92ft

Length - Wheel Base:

9.83ft

Clearance - Bucket at 45°*:

11.25ft

Clearance - Load over Height**:

11.58ft

Clearance - Level Bucket**:

13.67ft

Height - Bucket Pin**:

14.75ft

Height - Overall**:

18.83ft

Reach - Bucket at 45°*:

4.58ft

Carry Height - Bucket Pin:

2.08ft

Dig Depth**:

5.3in

Width - Bucket:

8.33ft

Width - Tread Center:

6.33ft

Turning Radius - Over Bucket:

20.75ft

Width - Over Tires:

8.33ft

Turning Radius - Outside of Tires:

17.75ft

Turning Radius - Inside of Tires:

9.33ft

Rack Angle at Full Lift:

53°

Dump Angle at Full Lift:

48°

Rack Angle at Carry:

49°

Departure Angle:

33°

Articulation Angle:

40°

Operating Weight:

31633lb

Note (1):

*Vary with bucket.

Note (2):

**Vary with tire.

Note (3):

Standard Equipment

note: not all features are available in all regions.

operator environment

75 mm (3 in) retractable seatbelt
Automatic temperature control
Cab, enclosed ROPS/FOPS pressurized and sound suppressed
Push to Start
8 Inch Touch Screen
Jog Dial with screen control
Programmable Joystick
Cup holders
External mirrors with lower parabolic
Ground level cab door release
Hydraulic control lockout
Interior cab lighting, door
Lunch box storage
Operator Not Present system
Radio ready speakers
Rear window defrost, electric
Seat mounted electronic implement controls, adjustable
Sliding glass on side window
Column mounted multi function control lights, wipers, turn signal
Suspension seat, fabric
Tilt steering wheel
Tinted front glass
Wet arm wiper/washer, 2-speed and intermittent, front
Wet arm wiper washer, rear
Mounting Provision
Digital hour meter, odometer and tachometer
Digital ground speedometer and direction indicator
Engine coolant temperature gauge
Fuel and diesel exhaust fluid levels
Hydraulic oil temperature gauge

power train

Cat C7.1 engine
Auto idle shut down feature
Auto Engine RPM
Tier 4 Final/EU Stage V compliant
Turbocharged and aftercooled
Filtered crankcase breather
Diesel particulate filter
Selective catalyst reduction
Dry type air cleaner
Coolant protection to –34 °C (–29 °F)
Fuel priming pump, automatic
Fuel water separator
Differential lock in front axle
Axle seal guards
Enclosed wet disc full hydraulic brakes
Parking brake, electric
Lubed for life driveshafts
Hydrostatic transmission with electronic control
Operator modes (TC, Hystat, Single Pedal and Ice)
Directional shift aggressiveness (fast, medium, slow)
Auto Wheel Torque control, adjust wheel torque
Creeper control, adjust ground speed
Single plane cooling package, wide 6 fins per inch density
Hydraulically driven demand cooling fan
Scheduled Oil Sampling (S·O·SSM) port, engine, coolant, transmission

hydraulics

Automatic lift and bucket kickouts, adjustable in-cab
Bucket and fork modes, adjustable in-cab
Cylinder damping at kickout and mechanical end stops
Fine mode control (fast, medium, slow)
Hydraulic response setting (fast, medium, slow)
Hydraulic diagnostic connectors and S·O·S ports
Hydraulic sight gauge, visible
Load sensing hydraulics and steering
Seat mounted hydraulic joystick controls
Cat Payload 250 hours of Demo

electrical

Alternator, 115-amp, heavy duty
12V power supply in cab (2)
Batteries, 1,000 CCA (2) 24-volt system, disconnect switch
Back up alarm
Emergency shutdown switch
LED rear stop and turn lights
Heavy duty gear reduction starter
Product Link™ Elite
Remote jump start post
Resettable main and critical function breakers
Roading lights front and rear

other

Large-access enclosure doors with adjustable close/open force
Parallel lift loader linkage
Recovery hitch with pin
Remote mounted lubrication points
Lockable compartments
1000-hour Service Intervals (after initial 500)

Optional Equipment

note: not all features are available in all regions.

operator environment

Joystick steering – 25 mph (40 kph) capable
Radio packages
Telescoping Steering Column
Deluxe seat – fully adjustable fabric air suspension seat with mid seat backrest
Premium seat – fully adjustable leather and fabric air suspension with high backrest and air lumbar support. Seat is heated and ventilated on bottom cushion and backrest.
Rear Object Detection
Multi View Camera
Front View Camera, roof mounted
Heated external Mirrors (2)
Electrically adjustable and heated external mirrors (2)
Internal Mirrors (2)
Sunscreen, front and rear
Windshield Washing Platform
Powered precleaned for cab air
Cab guarding
