At a glance data:
Maximum Rating:
1500 ekW
Minimum Rating:
1500 ekW
Emissions/Fuel Strategy:
U.S. EPA Tier 2
Voltage:
220 - 600 Volts
Overview

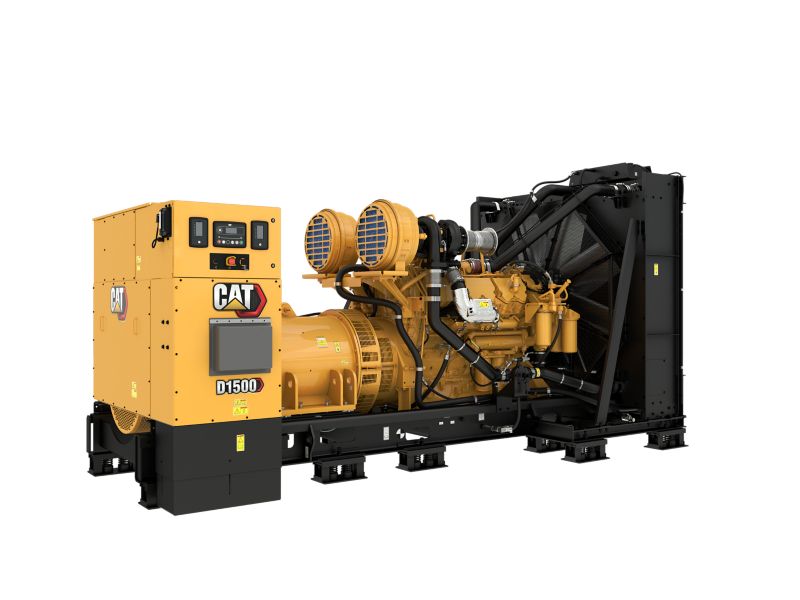

C32B 1500 ekW 60Hz Diesel Generator Set for Standby and Mission Critical applications
Category:
Diesel Generator Sets
Category:
Diesel Generator Sets
Brand:
Caterpillar
Brand:
Caterpillar
Generator Set Specifications
Maximum Rating:
1500 ekW
Minimum Rating:
1500 ekW
Emissions/Fuel Strategy:
U.S. EPA Tier 2
Voltage:
220 - 600 Volts
Frequency:
60 Hz
Speed:
1800 rpm
Duty Cycle:
Standby / Mission Critical
Engine Specifications
Engine Model:
C32 TA, V-12, 4-Stroke Water-Cooled Diesel
Bore:
5.71in
Stroke:
6.38in
Displacement:
1958.86in³
Compression Ratio:
14:1
Aspiration:
TA
Fuel System:
EUI
Governor Type:
Adem™A5
Generator Set Dimensions
Length - Minimum:
191.4in
Length - Maximum:
200in
Width - Minimum:
90in
Width - Maximum:
90in
Height - Minimum:
102.4in
Height - Maximum:
102.4in
Dry Weight - Genset (minimum):
19511lb
Dry Weight - Genset (maximum):
21411lb
Standard Equipment
control panel
- GCCP1.2
cooling system
- Radiator
Optional Equipment
control panels
- CAT ECS 100 and CAT ECS 200
starting/charging
- Jacket water heater
general
- Single element or dual element air cleaner
- Circuit breaker panel, based on regional and product configuration
