At a glance data:
Engine Model:
Cat® C18
Net Power - ISO 9249:
542hp
Net Power - ISO 9249 (DIN):
550hp (metric)
Engine Power - ISO 14396:
543hp
Overview

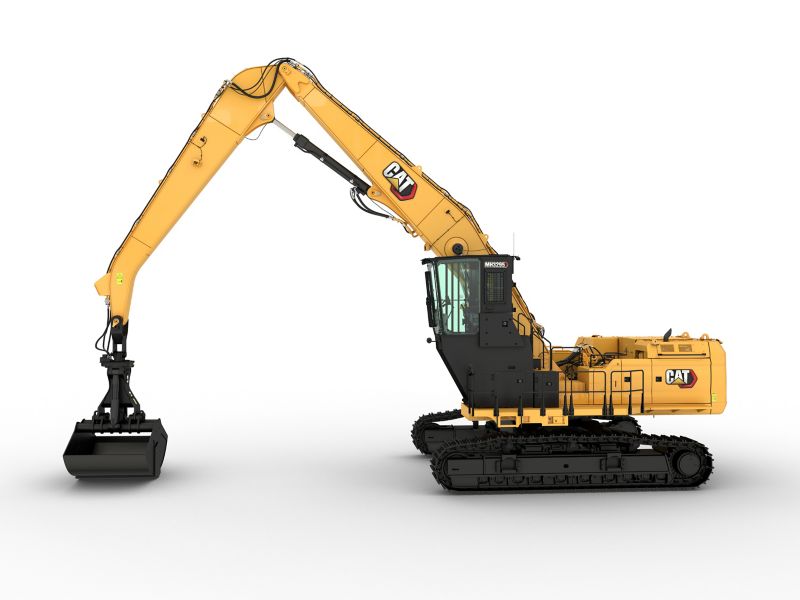

The Cat® MH3295 material handler is built for productivity, safety, and long-term value. With a purpose-built design, advanced electro-hydraulic controls, and a smooth, dedicated swing pump, operators can move more material with great precision and less effort. The wide undercarriage helps ensure machine stability, while shared service parts and easy-access maintenance features help reduce downtime and operating costs. A comfortable cab, high visibility, and technologies like Cat Payload and 2D E-fence help operators work efficiently and safely all day. The MH3295 is designed to help boost jobsite performance and deliver long lasting durability.
Category:
Track Material Handlers
Category:
Track Material Handlers
Brand:
Cat
Brand:
Cat
Engine
Engine Model:
Cat® C18
Net Power - ISO 9249:
542hp
Net Power - ISO 9249 (DIN):
550hp (metric)
Engine Power - ISO 14396:
543hp
Engine Power - ISO 14396 (DIN):
551hp (metric)
Bore:
6in
Stroke:
7in
Displacement:
1105in³
Biodiesel Capability:
Up to B20¹
Emissions:
Meets U.S. EPA Tier 4 Final, EU Stage V, Japan 2014, and China Nonroad Stage IV emission standards.
Note (1):
Net power advertised is the power available at the flywheel when the engine is equipped with fan, air cleaner, Clean Emission Module (CEM) exhaust gas aftertreatment, alternator, and cooling fan running at intermediate speed. Rated speed 1,900 rpm. Advertised power is tested per the specified standard in effect at the time of manufacture.
Note (2):
¹Cat diesel engines are required to use ULSD (ultra-low sulfur diesel fuel with 15 ppm of sulfur or less) and are compatible* with ULSD blended with the following lower-carbon intensity fuels** up to: 20% biodiesel FAME (fatty acid methyl ester)*** or 100% renewable diesel, HVO (hydrotreated vegetable oil) and GTL (gas-to-liquid) fuels. Refer to guidelines for successful application. Please consult your Cat dealer or “Caterpillar Machine Fluids Recommendations” (SEBU6250) for details. *While Caterpillar engines are compatible with these alternative fuels, some regions may not allow their use. **Tailpipe greenhouse gas emissions from lower-carbon intensity fuels are essentially the same as traditional fuels. ***Engines with no aftertreatment devices are compatible with higher blends, up to 100% biodiesel (for use of blends higher than 20% biodiesel, consult your Cat dealer).
Transmission
Maximum Travel Speed:
2.8mile/h
Maximum Drawbar Pull:
53729lbf
Gradeability:
28°/53%
Hydraulic System
Maximum Pressure - Implements:
5080psi
Maximum Pressure - Swing:
4496psi
Maximum Pressure - Travel:
5080psi
Swing Mechanism
Swing Speed*:
5.4r/min
Swing Torque:
267300lbf·ft
Note (1):
*For CE-marked machine default value may be set lower.
Weights
Operating Weight:
222100lb
Note (1):
Operating weight includes 10.6 m (34'9") Short boom, 8.1 m (26'7") Drop Nose stick, 750 mm (30") double grouser shoes, 15.5 mt (34,060 lb) counterweight and no work tool.
Service Refill Capacities
Fuel Tank Capacity:
322.3gal (US)
Cooling System:
18.8gal (US)
Engine Oil:
17.7gal (US)
Final Drive - Each:
5.3gal (US)
Hydraulic System - Including Tank:
195.5gal (US)
Hydraulic Tank:
114.1gal (US)
Diesel Exhaust Fluid (DEF) Tank:
21.1gal (US)
Dimensions
Boom:
Short Boom 10.6 m (34'9")
Stick:
8.1 m (26'7") Drop Nose stick
Operating Height - To Top of Cab (Fixed):
19.7ft
Shipping Height - Cab Tipped:
12.4ft
Height - Top of Exhaust:
13.3ft
Shipping Length (without stick):
34.3ft
Upper Frame Width (includes walkways and handrails):
19.2ft
Tail Swing Radius:
15.9ft
Counterweight Clearance:
5.6ft
Ground Clearance:
2.8ft
Track Length to Center of Rollers:
19.4ft
Track Length:
23.5ft
Track Gauge-Retracted:
13.4ft
Track Gauge- Extended:
15.9ft
Undercarriage Width-Retracted,750 mm (30”) shoes:
16.5ft
Undercarriage Width-Extended:
19ft
Working Ranges
Maximum Reach:
57.7ft
Boom:
Short Boom 10.6 m (34'9")
Stick:
8.1 m (26'7") Drop Nose stick
Maximum Height:
59.2ft
Minimum Swing Radius-Front:
19.3ft
Maximum Depth:
23.2ft
Boom Pin Height:
44.2ft
Air Conditioning System
Note (1):
The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 2.8 kg (6.17 lb) of refrigerant which has a CO2 equivalent of 4.004 metric tonnes (4.414 tons).
Standard Equipment
note
- Standard and optional equipment may vary. Consult your Cat dealer for details.
booms and sticks
- Short Boom 10.6 m (34'9")
- 8.1 m (26'7") Drop Nose stick
cab
- High-resolution 254 mm (10") LCD touchscreen monitor
- Automatic bi-level air conditioner
- Keyless push-to-start engine control
- Heated and cooled seat with air-adjustable suspension
- 1829 mm (72") fixed riser
- Polycarbonate windows
- LED dome and floor lights
- Rear entry
cat technology
- VisionLink™
- Remote Flash and Remote Troubleshoot
- Cat Payload
electrical system
- Maintenance-free batteries
- LED lights on boom, stick, cab, and storage box
- Centralized electrical disconnect switch
- Power fuse module
engine
- Three selectable modes: Power, Smart, Eco
- Up to 3000 m (9,840 ft) altitude capability without engine power de-rate
- Cold start capability -18°C (0°F)
- Double element air filter with integrated pre-cleaner
- Automatic engine speed control
- 95 amp alternator
- Single plane three horizontal cooling system
- On-demand electric cooling fans with auto-reverse function
hydraulic system
- Electronic main control valve
- Automatic hydraulic oil warm up
- Automatic swing brake
- Boom and stick lowering check valves
- Boom and stick regeneration circuit
- Medium pressure (grapple rotate)
- High performance hydraulic return filter
- Two travel speed modes
safety and security
- Right-hand handrail and hand hold
- Signal/warning horn
- Secondary engine shutoff switch
- Rearview, left-side, and right-side-view cameras
- Cab avoidance
- 2D E-fence
- Swing Assist
- Lockable external tool/storage box and fuel drain compartment
- Easy lock cab tilting system
service and maintenance
- Scheduled Oil Sampling (S·O·S℠) ports
- Grouped location for engine oil and fuel filters
Optional Equipment
note
- Standard and optional equipment may vary. Consult your Cat dealer for details.
cab
- Auxiliary relay
hydraulic system
- Joystick steering
safety and security
- Inspection lighting
undercarriage and structures
- Counterweight 15450 kg (34,060 lb)
- Counterweight 17400 kg (38,360 lb)
