At a glance data:
Operating Weight - 9 Wheel Base Machine:
11466lb
Operating Weight - Maximum Ballast:
33069lb
Compaction Width:
69in
9 Wheel Compaction Width - With Radial Tire:
68in
Overview

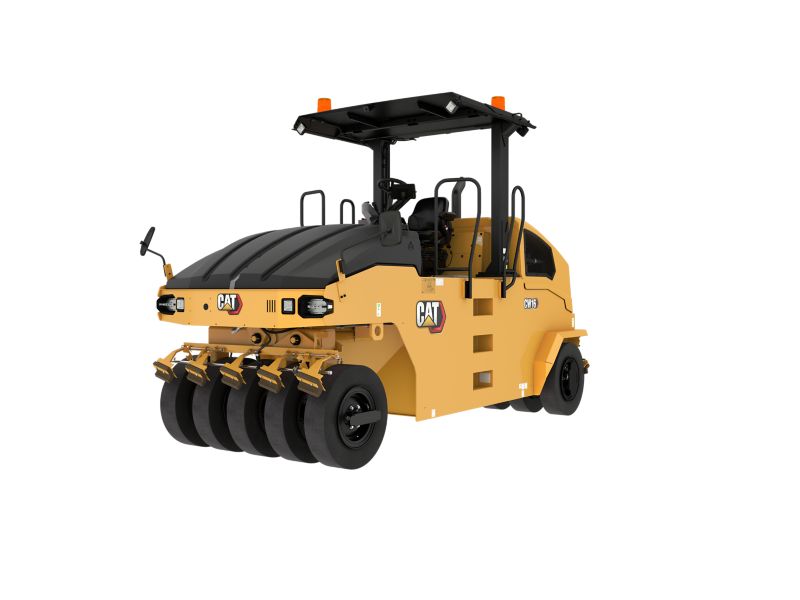

The Cat® CW16 is a standard 9-wheel Pneumatic Roller with an operating weight range of 5200 kg to 15 000 kg (11,164 lb - 33,069 lb) and compaction width of 1754 mm (69"). An optional 11-wheel option increases the compaction width to 2132 mm (84"). Equipped with an efficient Cat engine, this machine delivers smooth, reliable performance on grades and soft base materials.
Category:
Pneumatic Rollers
Category:
Pneumatic Rollers
Brand:
Cat
Brand:
Cat
Weights
Operating Weight - 9 Wheel Base Machine:
11466lb
Operating Weight - Maximum Ballast:
33069lb
Operating Specifications
Compaction Width:
69in
9 Wheel Compaction Width - With Radial Tire:
68in
Dimensions
Overall Length:
14.1ft
Height - ROPS:
9.8ft
Height - Steering Wheel:
91in
Operating Specifications
Travel Speed - Maximum:
12mile/h
Ground Clearance:
9.5in
Inside Turn Radius - 9 Wheel:
148in
Turning Radius - Outside:
255in
Engine
Engine Model:
Cat C3.6
Gross Power:
100.6hp
Service Refill Capacities
Fuel Tank Capacity:
38gal (US)
Water Spray Tank Capacity:
92gal (US)
Standard Equipment
operating environment
- Platform ROPS/FOPS
- Propel lever with 4-button control
- Power steering
- Rotating operating station
- Seat belt, high visibility, 76 mm (3")
- Suspension seat
- Vandalism protection
- Adjustable armrests
powertrain
- Cat C3.6, 4-cylinder
- Variable-speed transmission
electrical system
- 120 amp alternator
- 12-volt charging system
- Automotive-type fuse system
- Battery - maintenance-free
- Cat Electronic Technician (Cat ET)
- Remote start/charge receptacle
wheels and spray system
- 9-wheel system
- Front wheel oscillation
- Pressurized spray system
service and maintenance
- Grouped filters with ground level access
- Remote access drains
- Sampling ports for Scheduled Oil Sampling
- Sight Gauges
safety
- Horn, warning (front & rear)
- LED Working Lights
- Steps, front drum fuel refill
- Warning, LED safety beacons
Optional Equipment
operating environment
- Mirrors
- Sun canopy
- Suspension seat - with heat
technology
- Infrared asphalt temperature sensors
- GNSS Mapping - Temperature and Passcount
- VisonLink™
powertrain
- Hitch - offset
wheels and spray system
- 11-wheel system
- Ballast_factory installed steel blocks
- Edge management - cutoff, bevel
- Rear fender_11 wheel
- Spare tire
- Thermal aprons
- Tires_12-ply Radial
- Tires_14-ply Bias
service and maintenance
- Hydraulic oil_bio-degradeable
safety
- Cameras - front and rear
- LED Working Lights with turn signals
- LED Auxiliary Lighting 1000/2000 Lumin
- Mirror package
- Steps, rear drum water spray refill
