At a glance data:
Engine Model:
Cat® C13B
Bore:
5.1in
Rated Payload:
35.3ton (US)
Heaped (SAE 2:1):
26.2yd³
Overview

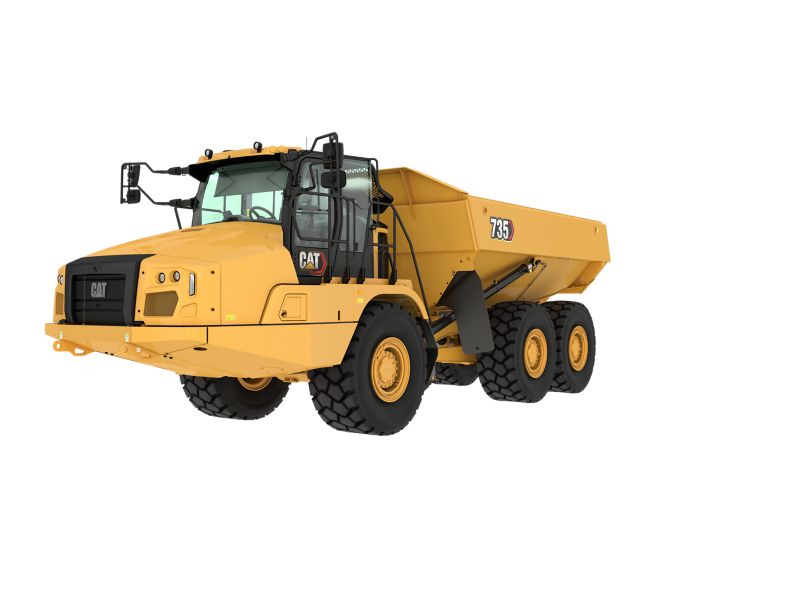

For tough quarry and mining jobs, rely on the Cat® 735 articulated truck. Its 35.3-ton (32-tonne) payload capacity is pass-matched with excavators and loaders to help you move more material and boost productivity across any jobsite.
Category:
Three Axle Articulated Trucks
Category:
Three Axle Articulated Trucks
Brand:
Caterpillar
Brand:
Caterpillar
Engine
Engine Model:
Cat® C13B
Gross Power (SAE J1995):
436hp
Net Power (SAE J1349):
427hp
Engine Power (ISO 14396):
431hp
Bore:
5.1in
Stroke:
6.2in
Displacement:
763in³
Note (1):
Advertised power is tested at 1,800 rpm.
Note (2):
Advertised power is tested per the specified standard in effect at the time of manufacture.
Note (3):
Net power available at the flywheel when the engine is equipped with alternator, air cleaner, muffler, and fan at minimum speed.
Note (4):
Net power when the fan is at maximum speed is 319 kW (427 hp) per the SAE reference conditions.
Note (5):
Meets U.S. EPA Tier 4 Final, EU Stage V, Korea Stage V, and Japan 2014 emission standards.
Note (6):
Diesel exhaust fluid (DEF) used in Cat SCR systems must meet the requirements outlined in ISO 22241-1. ISO 22241-1 requirements are met by many brands of DEF, including those that carry the AdBlue or API certifications.
No Engine De-rating Below:
12500ft
Peak Engine Torque Gross (SAE J1995):
1627lbf·ft
Peak Engine Torque Net (SAE J1349):
1612lbf·ft
Peak Engine Torque Speed:
1200r/min
Weights
Rated Payload:
35.3ton (US)
Body Capacities
Heaped (SAE 2:1):
26.2yd³
Struck:
20.9yd³
Tailgate Heaped SAE 2:1:
28.4yd³
Tailgate Struck:
22.2yd³
Transmission
Forward - 1:
5mile/h
Forward - 2:
9mile/h
Forward - 3:
14mile/h
Forward - 4:
22mile/h
Forward - 5:
30mile/h
Forward - 6:
35mile/h
Reverse - 1:
6mile/h
Sound Levels
Interior Cab:
72dB(A)
Note (1):
The declared dynamic operator sound pressure level is 72 dB(A) when ISO 6396:2008 is used to measure the value for an enclosed cab. The measurement was conducted at 70% of the cooling fan’s maximum speed. The sound level may vary at different cooling fan speeds. The measurement was conducted with the cab doors and the cab windows closed. The cab was properly installed and maintained.
Note (2):
Hearing protection may be needed when operating with an open operator station and cab (when not properly maintained or doors/windows open) for extended periods or in noisy environments.
Operating Weights
Front Axle - Empty:
32584lb
Center Axle - Empty:
11199lb
Rear Axle - Empty:
10692lb
Total - Empty:
54476lb
Front Axle - Rated Load:
8938lb
Center Axle - Rated Load:
30805lb
Rear Axle - Rated Load:
30805lb
Total - Rated Load:
70548lb
Front Axle - Loaded:
41522lb
Center Axle - Loaded:
42005lb
Rear Axle - Loaded:
41498lb
Total - Loaded:
125024lb
Body Plate
Type:
High strength Brinell HB450 wear resistant steel
Body Plate Thickness
Front Plate:
0.28in
Base Plate:
0.51in
Side Plates:
0.43in
Service Refill Capacities
Fuel Tank:
105.7gal (US)
DEF Tank:
9.0gal (US)
Cooling System:
21.9gal (US)
Hydraulic System:
32.5gal (US)
Engine Crankcase:
11.4gal (US)
Transmission:
12.4gal (US)
Final Drives/Differential:
33gal (US)
Output Transfer Gear Box:
6.6gal (US)
Body Hoist
Raise Time:
12s
Lower Time:
11s
Standards
Brakes:
ISO 3450 – 2011
Cab - FOPS:
ISO 3449 Level II – 2005
Cab - ROPS:
ISO 3471 – 2008
Steering:
ISO 5010 – 2019
Turning Circle
Turning Dimensions - Steer Angle - Left/Right:
45°
Turning Dimensions - SAE Turning Radius:
294in
Turning Dimensions - Clearance Radius:
318in
Turning Dimensions - Inside Radius:
153in
Turning Dimensions - Aisle Width:
210in
Note:
Dimensions are for machines equipped with 750/65 R25 tires.
Steering
Lock to Lock:
4.75 seconds @ 60 rpm
Optimal Loader/Truck Pass Matching
Hydraulic Excavators: 350/352 - Passes:
4-5
Hydraulic Excavators: 336 - Passes:
5-6
Wheel Loaders: 972/972 XE - Passes:
3-4
Wheel Loaders: 966/966 XE - Passes:
4
Wheel Loader: 962 - Passes:
4-5
Wheel Loader: 950 - Passes:
5
Note:
An optimum system match gives you a major productivity advantage. The 735 is an excellent match for the Cat 350/352 and 336 Hydraulic Excavators; and Cat 972, 966, 962 and 950 Wheel Loaders. Having matched loading and hauling tools results in increased production and lower system costs per unit of volume moved.
Standard Equipment
note
- Standard and optional equipment may vary. Consult your Cat dealer for details.
operator environment
- Retractable belt: Operator seat and second seat
- Touchscreen display incorporating the rearview camera video feed
- Windshield wiper and washer, two speed, intermittent (front)
- Mirrors: exterior
- Windows opening side, tinted
- Heater and defroster with four-speed fan
- Glass windows:
– Front, laminated and tinted
– Sides and rear, toughened and tinted - Sun visor
- Secondary steering – electro hydraulic
- Machine operation monitoring system includes:
– Action lamp
– Engine oil pressure
– Primary steering system
– Left and right turn signal
– High beam
– Coolant temperature
– Tachometer
– Parking brake
– Fuel level
– Transmission oil temperature
– Brake system
– Transmission hold
– Hoist control
– Hydraulic system
– Charging system
– Retarder
– Transmission fault
– Traction control system
– Check engine lamp - Air conditioning
- Combined gear selection and hoist control lever
- Seats:
– Operator: fully adjustable, air suspension
– Trainer: padded with lap belt - Liquid Crystal Display (LCD):
– Alert indicator
– Selected gear and direction
– Speed or auto shift
– Review Operation and Maintenance Manual (OMM)
– Primary steering failure warning
– Seat belt warning
– Secondary steering failure warning
– Diesel Particulate Filter (DPF) regeneration filter
– Secondary steering energy source engaged
– Hour meter
– Retarder active - Storage:
– Cup holder
– Flask receptacle
– Under seat storage
– Door pocket
– Behind operator seat storage
– Coat hook - Tilt and telescopic steering wheel
- Adjustable air vents
technology
- Product Link Cellular PLE643
- Cat® Detect with Stability Assist
electrical and lighting
- Remote starting receptacle (cables not included)
- Electrical system: 24-volt, 10A 24- to 12-volt converter
- Horn
- Lighting systems:
– Cab interior
– Two head lamps
– Two width marker
– Two reversing
– Work light/cab access light
– Two stop/tail lights
– Front and rear direction indicators - Main disconnect switch
- Batteries (x2) maintenance free
powertrain
- Cat Clean Emission Module (CEM) and exhaust aftertreatment package
- Three axle, six-wheel drive
- Auto shift six-speed forward and single-speed reverse transmission
- Retarder: engine compression brake and hydraulic
- Dual circuit oil immersed, enclosed brakes – all wheels
- Cat C13B engine
- Differentials: standard with automatic clutched inter- and cross-axle differential locks
safety
- Rollover protective structure/Falling objects protective structure (ROPS/FOPS) cab
- Rearview camera
- Reverse alarm
guards
- Crankcase
- Front dump body spill guard, integral part of fabricated body
- Rear window
- Radiator
other standard equipment
- Vandalism protection: lockable caps
- Tires, six 750/65 R25
- Mud flaps: wheel arch and body mounted with transportation tiebacks
- Scheduled Oil Sampling (S•O•S) sampling valves
- Sound suppression (standard in some countries*)
*Countries are EU countries plus Iceland, Norway, Lichtenstein, Switzerland, Türkiye and UK.
Optional Equipment
note
- Standard and optional equipment may vary. Consult your Cat dealer for details.
operator environment
- Seat, heated/cooled
- Mirrors, heated motorized
- Infrared glass – high ambient cab
- Window blinds
- Radio, Bluetooth® stereo system
- Operator seat belt, four-point
- Windshield wiper and washer, two speed (rear)
technology
- Cat® Payload monitoring system
- Product Link Dual PLE683
- Operator Coaching
electrical and lighting
- Cold weather start attachment (2 additional batteries)
- Engine block heater
- Ether start
- Flashing LED beacon
- Roof mounted LED work lights
optional equipment
- Fuel additive – anti-waxing
- Scissor tailgate
- Exhaust heated body
- Cold weather coolant –51° C (–60° F)
- Auto lube installation for automatic greasing of bearings
- Bare chassis (no body) standard wheel base
- Bare chassis (no body) long wheel base
- Wheel chocks
- Body liners
- Fast fuel fill
