At a glance data:
Engine Model:
Cat® C15
Bore:
5.4in
Rated Payload:
40ton (US)
Heaped (SAE 2:1):
29.7yd³
Overview

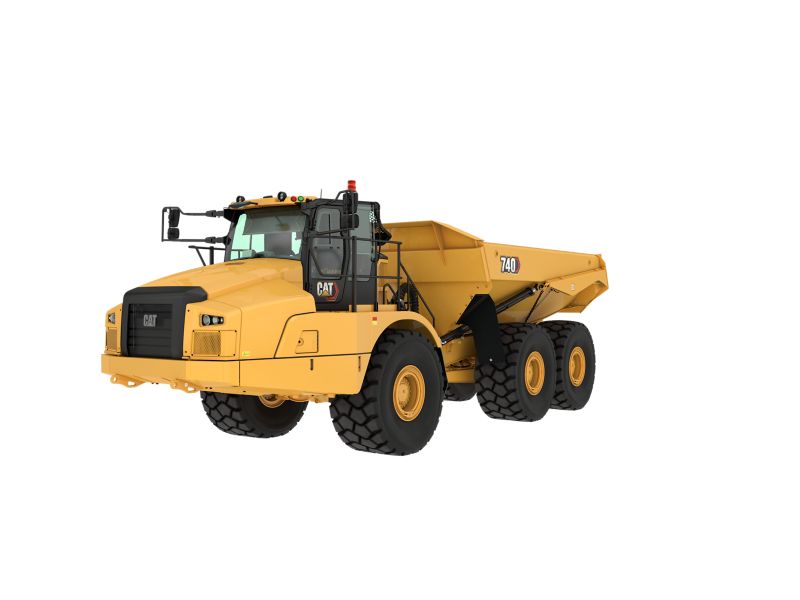

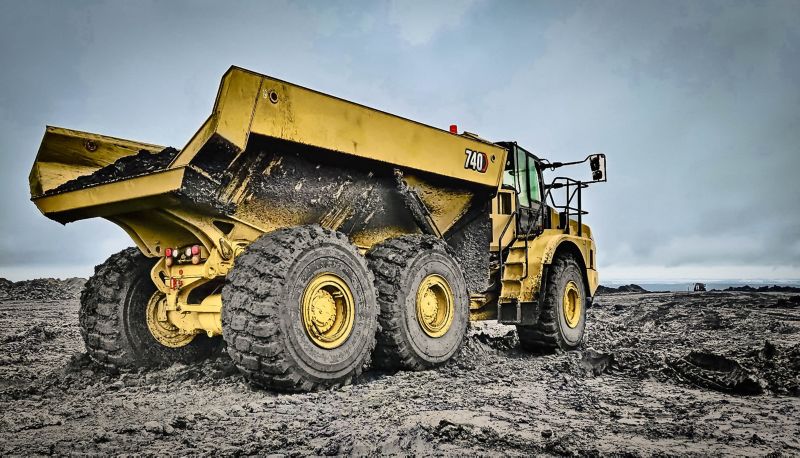

The Cat® 740 raises the bar for operator comfort and control. Its redesigned, world‑class cab is built to deliver a smoother, smarter, more intuitive experience. With upgraded controls, built‑in transmission protection, hoist assist, advanced automatic traction control, stability‑assist rollover warnings, and an ECO mode that cuts fuel use, the 740 is engineered to keep productivity high and operating costs low.
Category:
Three Axle Articulated Trucks
Category:
Three Axle Articulated Trucks
Brand:
Caterpillar
Brand:
Caterpillar
Engine
Engine Model:
Cat® C15
Gross Power (SAE J1995):
452hp
Net Power (SAE J1349):
439hp
Engine Power (ISO 14396):
447hp
Bore:
5.4in
Stroke:
6.75in
Displacement:
926in³
Note (1):
Advertised power is tested at 1,700 rpm.
Note (2):
Advertised power is tested per the specified standard in effect at the time of manufacture.
Note (3):
The net power advertised is the power available at the flywheel when the engine is equipped with alternator, air cleaner, aftertreatment, and fan at minimum speed.
Note (4):
Net power when the fan is at maximum speed is 327 kW (439 hp) per the SAE reference conditions.
Note (5):
Meets U.S. EPA Tier 4 Final, EU Stage V, Korea Stage V, and Japan 2014 emission standards.
Note (6):
Diesel exhaust fluid (DEF) used in Cat selective catalytic reduction (SCR) systems must meet the requirements outlined in ISO 22241-1. Requirements are met by many brands of DEF, including those that carry the AdBlue or API certifications.
No Engine De-rating Below:
10000ft
Peak Engine Torque Gross (SAE J1995):
1711lbf·ft
Peak Engine Torque Net (SAE J1349):
1670lbf·ft
Peak Engine Torque Speed:
1200r/min
Weights
Rated Payload:
40ton (US)
Body Capacities
Heaped (SAE 2:1):
29.7yd³
Struck:
23.2yd³
Tailgate Heaped SAE 2:1:
32yd³
Tailgate Struck:
24.4yd³
Transmission
Forward - 1:
4mile/h
Forward - 2:
5.3mile/h
Forward - 3:
7.3mile/h
Forward - 4:
9.2mile/h
Forward - 5:
12.2mile/h
Forward - 6:
14.9mile/h
Forward - 7:
20.6mile/h
Forward - 8:
24.7mile/h
Forward - 9:
35.7mile/h
Reverse - 1:
4.2mile/h
Reverse - 2:
9.8mile/h
Sound Levels
Interior Cab:
72dB(A)
Note (1):
The declared dynamic operator sound pressure level is 72 dB(A) when ISO 6396:2008 is used to measure the value for an enclosed cab. The measurement was conducted at 70% of the cooling fan’s maximum speed. The sound level may vary at different cooling fan speeds. The measurement was conducted with the cab doors and the cab windows closed. The cab was properly installed and maintained.
Note (2):
Hearing protection may be needed when operating with an open operator station and cab or when not properly maintained or with doors/windows open for extended periods or in noisy environments.
Operating Weights
Front Axle - Empty:
43200lb
Center Axle - Empty:
14804lb
Rear Axle - Empty:
14562lb
Total - Empty:
72565lb
Front Axle - Rated Load:
7002lb
Center Axle - Rated Load:
36513lb
Rear Axle - Rated Load:
36513lb
Total - Rated Load:
80027lb
Front Axle - Loaded:
50201lb
Center Axle - Loaded:
51317lb
Rear Axle - Loaded:
51074lb
Total - Loaded:
152593lb
Body Plate
Type:
High strength Brinell HB450 wear resistant steel
Body Plate Thickness
Front Plate:
0.28in
Base Plate:
0.51in
Side Plates:
0.43in
Service Refill Capacities
Fuel Tank:
145.3gal (US)
Cooling System:
23.7gal (US)
Brake Cooling Tank:
17.7gal (US)
Steering/Hoist Hydraulic System:
36.9gal (US)
Engine Crankcase:
13.7gal (US)
Transmission - OTG:
19.8gal (US)
Final Drive - Each:
1.3gal (US)
Axles - Each:
15.8gal (US)
DEF Tank:
6.5gal (US)
Body Hoist
Raise Time:
12s
Lower Time:
12s
Standards
Brakes:
ISO 3450 – 2011
Cab - FOPS:
ISO 3449 Level II – 2005
Cab - ROPS:
ISO 3471 – 2008
Steering:
ISO 5010 – 2019
Turning Circle
Turning Dimensions - Steer Angle - Left/Right:
45°
Turning Dimensions - SAE Turning Radius:
303in
Turning Dimensions - Clearance Radius:
330in
Turning Dimensions - Inside Radius:
156in
Turning Dimensions - Aisle Width:
220in
Note:
Dimensions are for machines equipped with 29.5 R25 tires.
Steering
Lock to Lock:
4.75 seconds @ 60 rpm
Optimal Loader/Truck Pass Matching
Hydraulic Excavator: 374 - Passes:
3-4
Hydraulic Excavator: 352 - Passes:
5-6
Wheel Loader: 972 - Passes:
3
Wheel Loader: 966 - Passes:
4-5
Wheel Loader: 962 - Passes:
5
Note:
An optimum system match gives you a major productivity advantage. The 740 is an excellent match for the Cat 374 and 352 Hydraulic Excavators; and Cat 972, 966, and 962 Wheel Loaders. Having matched loading and hauling tools results in increased production and lower system costs per unit of volume moved.
Standard Equipment
note
- Standard and optional equipment may vary. Consult your Cat dealer for details.
operator environment
- Air conditioning
- Secondary steering – electro hydraulic
- Windshield wiper and washer, two speed, intermittent (front)
- Seats:
– Operator: fully adjustable, air suspension, retractable lap belt
– Trainer: padded with retractable lap belt - Adjustable air vents
- Touchscreen display incorporating the rearview camera video feed
- Storage:
– Cup holder
– Flask receptacle (under the secondary seat)
– Under seat storage
– Door pocket
– Behind seat storage
– Coat hook - Combined gear selection and hoist control lever
- Heater and defroster with four-speed fan
- Sun visor
- Windows (tinted) opening both sides
- Liquid Crystal Display (LCD):
– Alert indicator
– Selected gear and direction
– Speed or auto shift
– Operation and Maintenance Manual (OMM)
– Primary steering failure (warning)
– Seat belt warning
– Secondary steering failure
– Diesel Particulate Filter (DPF) regeneration filter
– Secondary steering energy source engaged
– Hour meter
– Retarder active - Mirrors: exterior
- Glass windows:
– Front, laminated and tinted
– Sides and rear, toughened and tinted - Tilt and telescopic steering wheel
- Machine operation monitoring system includes:
– Action lamp
– Engine oil pressure
– Primary steering system
– Left and right turn signal
– High beam
– Coolant temperature
– Tachometer
– Parking brake
– Fuel level
– Transmission oil temperature
– Brake system
– Transmission hold
– Hoist control
– Hydraulic system
– Charging system
– Transmission fault
– Traction control system
– Check engine lamp
technology
- Product Link Cellular PLE643
- Cat Detect with Stability Assist
electrical and lighting
- Electrical system: 24-volt, 10A 24- to 12-volt converter
- Horn
- Batteries (two) maintenance free
- Remote starting receptacle (cables not included)
- Main disconnect switch
- Lighting systems:
– Cab interior
– Two head lamps
– Two width marker
– Two reversing
– Work light/cab access light
– Two stop/tail lights
– Front and rear direction indicators
powertrain
- Automatic Retarder: engine compression brake
- Three axle, six-wheel drive
- Clean Emission Module (CEM) and exhaust aftertreatment package
- CX38 Transmission
- Auto shift nine-speed forward and two reverse transmission
- Cat C15 engine
- Dual circuit oil immersed, enclosed brakes – all wheels
- Differentials: standard with automatic clutched inter- and cross-axle differential locks
safety
- ROPS/FOPS cab
- Reverse alarm
- Rearview camera
guards
- Front dump body spill guard, integral part of fabricated body
- Radiator
- Crankcase
- Rear window
other standard equipment
- Vandalism protection: lockable caps
- S·O·S sampling valves
- Mud flaps: wheel arch and body mounted with transportation tiebacks
- Tires, six 875/65 R29 wide tires
- Sound suppression (standard in some countries*)
-*EFTA countries are EU countries plus Iceland, Norway, Lichtenstein, Switzerland, Türkiye and UK.
Optional Equipment
note
- Standard and optional equipment may vary. Consult your Cat dealer for details.
operator environment
- Windshield wiper and washer, two speed (rear)
- Mirrors, heated motorized
- Operator seat belt, four-point
- Radio, Bluetooth® stereo system
- Infrared glass – high ambient cab
- Window blinds
- Seat, heated/cooled
technology
- Product Link Dual PLE683
- Cat® Payload monitoring system
- Machine Security System (MSS)
electrical and lighting
- Cold weather start attachment
- Flashing LED beacon
- Ether start
- Roof mounted LED work lights
- Engine block heater
optional equipment
- Wheel chocks
- Exhaust heated body
- Bare chassis (no body) standard wheel base
- Scissor tailgate
- Body liners
- Fuel additive – anti-waxing
- Auto lube installation for automatic greasing of bearings
- Cold weather coolant –51° C (–60° F)
- Fast fuel fill
- Bare chassis (no body) long wheel base
