At a glance data:
Net Power - ISO 9249:
133hp
Engine Model:
Cat C3.6
Overview

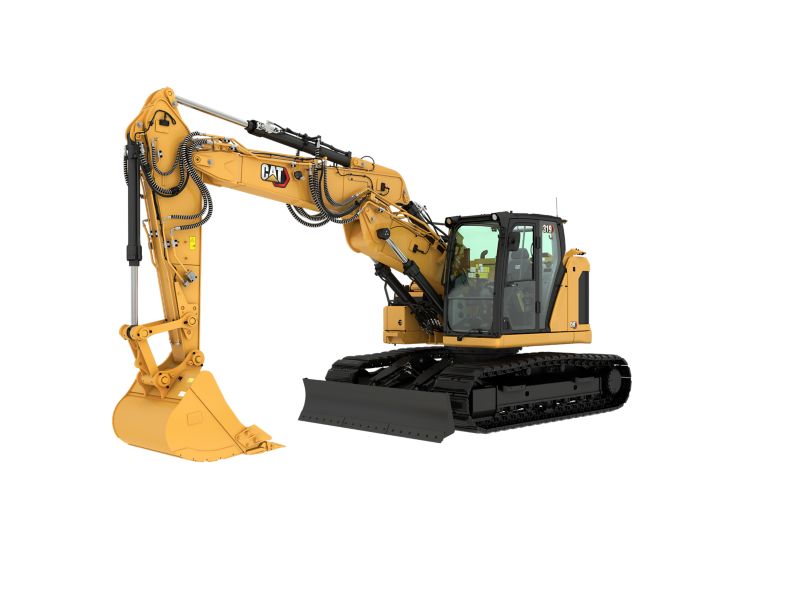

The Cat® 319 hydraulic excavator offers powerful performance, stability, and productivity for construction, utility work, and road maintenance jobs. Operate with confidence in tight spaces with a compact design, while Cat technologies help deliver precision and safety on the jobsite.
Category:
Small Excavators
Category:
Small Excavators
Brand:
Cat
Brand:
Cat
Engine
Net Power - ISO 9249:
133hp
Net Power - ISO 9249 (DIN):
134hp (metric)
Engine Model:
Cat C3.6
Engine Power - ISO 14396:
134hp
Engine Power - ISO 14396 (DIN):
136hp (metric)
Bore:
4in
Stroke:
5in
Displacement:
220in³
Biodiesel Capability:
Up to B20¹
Emissions:
Meets U.S. EPA Tier 4 Final and EU Stage V emission standards.
Note (1):
Net power advertised is the power available at the flywheel when the engine is equipped with fan, air intake system, exhaust system and alternator with engine speed at 2,200 rpm. Advertised power is tested per the specified standard in effect at the time of manufacture.
Note (2):
¹Cat diesel engines are required to use ULSD (ultra-low sulfur diesel fuel with 15 ppm of sulfur or less) and are compatible* with ULSD blended with the following lower-carbon intensity fuels** up to: 20% biodiesel FAME (fatty acid methyl ester)*** or 100% renewable diesel, HVO (hydrotreated vegetable oil) and GTL (gas-to-liquid) fuels. Refer to guidelines for successful application. Please consult your Cat dealer or “Caterpillar Machine Fluids Recommendations“ (SEBU6250) for details. *While Caterpillar engines are compatible with these alternative fuels, some regions may not allow their use. **Tailpipe greenhouse gas emissions from lower-carbon intensity fuels are essentially the same as traditional fuels. ***Engines with no aftertreatment devices are compatible with higher blends, up to 100% biodiesel (for use of blends higher than 20% biodiesel, consult your Cat dealer).
Hydraulic System
Main System - Maximum Flow:
296 L/min (78 gal/min)
Maximum Pressure - Equipment:
5076psi
Maximum Pressure - Travel:
5076psi
Maximum Pressure - Swing:
3785psi
Swing Mechanism
Swing Speed:
9.2r/min
Maximum Swing Torque:
45140lbf·ft
Note (1):
*For CE-marked machine default value may be set lower
Weights
Operating Weight:
44100lb
Note (1):
*Long undercarriage, 5.1 m (16'9") Reach Boom, 3.1 m (10'2") Reach Stick, General Duty (GD) 1.0 m³ (1.31 yd³) bucket, and 700 mm (28") triple grouser track shoes.
Service Refill Capacities
Fuel Tank Capacity:
60.5gal (US)
Cooling System:
5gal (US)
Engine Oil:
2.9gal (US)
Final Drive - Each:
1.6gal (US)
Hydraulic System - Including Tank:
21.9gal (US)
Hydraulic Tank:
20.1gal (US)
DEF Tank:
5.5gal (US)
Dimensions
Boom:
Reach 5.1 m (16'9")
Stick:
Reach 3.1 m (10'2")
Bucket:
GD 1.0 m³ (1.31 yd³)
Shipping Height - Top of Cab:
9.6ft
Handrail Height:
9.8ft
Shipping Length:
26.6ft
Shipping Length - with Blade:
28.4ft
Tail Swing Radius:
5.7ft
Counterweight Clearance:
3.3ft
Ground Clearance:
1.5ft
Track Length:
13.4ft
Length to Center of Rollers:
10.7ft
Track Gauge:
7.2ft
Transport Width:
9.5ft
Working Ranges and Forces
Maximum Digging Depth:
21.5ft
Boom:
Reach 5.1 m (16'9")
Stick:
Reach 3.1 m (10'2")
Bucket:
GD 1.0 m³ (1.31 yd³)
Maximum Reach at Ground Level:
30.2ft
Maximum Cutting Height:
29.7ft
Maximum Loading Height:
21.1ft
Minimum Loading Height:
6.1ft
Maximum Depth Cut for 2440 mm (8 ft) Level Bottom:
20.8ft
Maximum Vertical Wall Digging Depth:
17.1ft
Minimum Working Equipment Radius:
9.6ft
Bucket Digging Force - ISO:
27650lbf
Stick Digging Force - ISO:
15960lbf
Air Conditioning System
Air Conditioning:
The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a or R1234yf. See the label or instruction manual for identification of the gas. If equipped with R134a (Global Warming Potential = 1430), the system contains 0.8 kg (1.8 lb) of refrigerant which has a CO2 equivalent of 1.144 metric tonnes (1.261 tons). If equipped with R1234yf (Global Warming Potential = 0.5), the system contains 0.7 kg (1.5 lb) of refrigerant which has a CO2 equivalent of 0.001 metric tonnes (0.001 tons).
Standard Equipment
note
- Standard and optional equipment may vary. Consult your Cat dealer for details.
cab
- Rollover Protective Structure (ROPS)
- Air suspension heated seat, 254 mm (10") touchscreen monitor
cat technologies
- VisionLink™
- Remote Flash
- Remote Troubleshoot
- Cat Grade with 2D
- Cat Assist
- Cat Payload
electrical system
- Maintenance free battery
- LED chassis light, left-side/right-side boom lights, cab lights
- Programmable time-delay LED working lights
engine
- Cat C3.6 single turbo diesel engine
- Three selectable modes: Power, Smart, Eco
- One-touch low idle with automatic engine speed control
- Automatic engine idle shutdown
- Down to -25°C (-13°F) cold start capability
- Electric fuel priming pump
- Electric cooling fans
- Single fuel filtration system with water separator and indicator
- Sealed double element air filter with integrated pre-cleaner
hydraulic system
- Electronic main control valve
- Single-type electronic main pump
- Boom and stick regeneration circuits
- Boom and stick drift reduction valve
- Automatic hydraulic oil warm up
- Automatic two-speed travel
safety and security
- Rear and right-side-view cameras
- Ground level accessible secondary engine shutoff switch in cab
- Service platform with anti-skid plate and countersunk bolts
- Signaling/warning horn
- Hydraulic lock out lever
- 2D E-fence
service and maintenance
- Grouped engine oil and fuel filters
- Ground-level engine oil dipstick
- Scheduled Oil Sampling (S·O·S℠) ports
- Integrated vehicle health management system
undercarriage and structures
- Grease lubricated track link
- Tie-down points
- 4.65 mt (10,200 lb) counterweight
Optional Equipment
note
- Standard and optional equipment may vary. Consult your Cat dealer for details.
boom and sticks
- 5.1 m (16'9") Reach Boom
- 2.64 m (8’8”) stub + 2.6 (8’6”) fore Variable Angle Boom
- 2.25 m (7'5") Reach stick (VA Boom only)
- 2.6 m (8'6") Reach stick
- 2.9 m (9'6") Reach stick
- 3.1 m (10'2") Reach stick
- 2.9 m (9'6") Thumb Ready stick (N Am only)
cab
- Operator Protective Guards (OPG)
- Auxiliary relay
cat technologies
- Operator Coaching
- Cat Advanced Payload
- Cat Grade with 2D with Attachment Ready Option (ARO)
- Cat Grade with 3D (single or dual GNSS)
- Cat Grade 3D Ready
electrical system
- 360° lighting
hydraulic system
- Boom and stick lowering check valves
safety and security
- Cat Detect - People Detection
- 360° visibility
- Swing alarm
- Inspection lighting
undercarriage and structures
- 500 mm (20") triple grouser track shoes (Europe only)
- 600 mm (24") triple grouser track shoes
- 600 mm (24") triple grouser track shoes with rubber pad
- 700 mm (28") triple grouser track shoes with additional steps
- 900 mm (35") triple grouser track shoes (Europe only)
- 2800 mm (9'2") blade
- 2900 mm (9'6") blade
