735 Bare Chassis Articulated Truck

new - Products
735 Bare Chassis Articulated Truck

At a glance data:

Engine Model:

Cat® C13

Bore:

5.1in

Rated Payload:

70600lb

Print Cat Articulated Trucks Bare Chassis Brochure 735 Bare Chassis Tech Specs

Overview

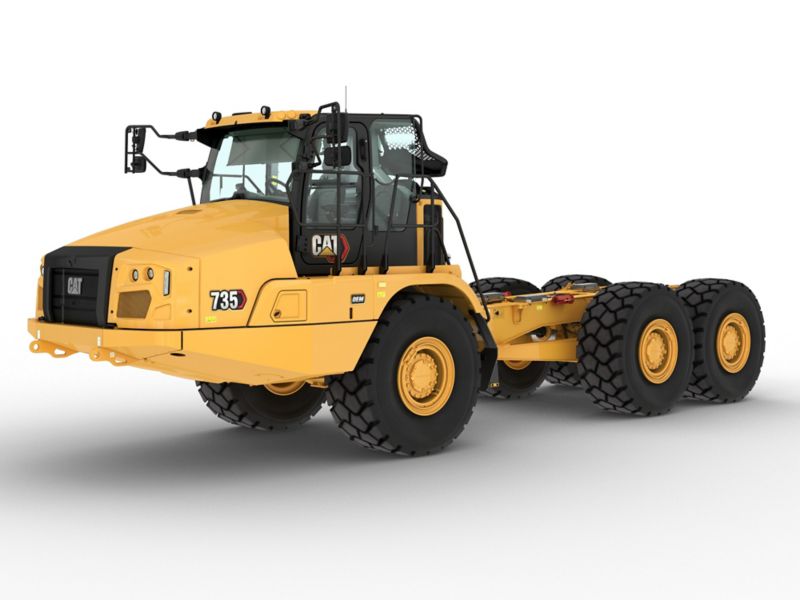

The Cat® OEM 735 Bare Chassis is available in both standard and long wheel base. With up to a 32 tonnes (35.3 tons) capacity, the 735 bare chassis offers proven reliability, durability, high productivity, superior operator comfort and lower operating costs. The long wheel base configuration accommodates longer specialty OEM bodies, while retaining high-quality steering, braking and ride characteristics.

The Cat 735 features a world-class cab design, re-engineered using global operator feedback to advance comfort and ease of operation. Enhancements include new controls, transmission-protection features, hoist-assist system, advanced automatic traction control system, stability-assist machine rollover warning system, and a fuel saving ECO mode.

Category:

Articulated Truck Bare Chassis

Brand:

Cat

Engine

Engine Model:

Cat® C13

Bore:

5.1in

Stroke:

6.2in

Displacement:

736in³

Gross Power - SAE J1995:2014:

436hp

Net Power - SAE J1349:2011:

427hp

Peak Engine Torque Net (SAE J1349):

1554lb/ft

Peak Engine Torque Speed:

1200r/min

Peak Engine Torque Gross (SAE J1995):

1579lb/ft

No Engine De-rating Required Below:

12500ft

Wheel Base Length

Standard Wheel Base:

156.7in

Long Wheel Base:

215.2in

Weights

Rated Payload:

70600lb

Transmission

Forward - 1:

5mile/h

Forward - 2:

9mile/h

Forward - 3:

14mile/h

Forward - 4:

22mile/h

Forward - 5:

30mile/h

Forward - 6:

35mile/h

Reverse - 1:

6mile/h

Service Refill Capacities

Fuel Tank:

105.7gal (US)

Cooling System:

21.9gal (US)

Hydraulic System:

32.5gal (US)

Engine Crankcase:

11.4gal (US)

Transmission:

12.3gal (US)

Final Drives/Differential:

33gal (US)

Output Transfer Gear Box:

6.6gal (US)

DEF Tank:

9gal (US)

Sound Levels

Interior Cab:

72dB(A)

Standards

Brakes:

ISO 3450:2011

Cab - FOPS:

ISO 3449:2005 Level II

Cab - ROPS:

ISO 3471:2008

Steering:

ISO 5010:2019

Steering

Lock to Lock:

4.75 seconds at 60 rpm

Turning Circle

Turning Dimensions - Clearance Radius:

318in

Turning Dimensions - Inside Radius:

149in

Turning Dimensions - SAE Turning Radius:

294in

Turning Dimensions - Aisle Width:

210in

Turning Dimensions - Steer Angle - Left/Right:

45°

Note:

Dimensions are for machines equipped with 750/65 R25 tires.

Standard Equipment

note

Standard and optional equipment may vary. Consult your Cat dealer for details.

for more information on 735 bare chassis options, please contact caterpillar oem solutions at oem_solutions@cat.com.

operator environment

Windshield wiper and washer, two speed, intermittent (front)
Mirrors: exterior
Machine operation monitoring system includes:
– Action lamp
– Engine oil pressure
– Primary steering system
– Left and right turn signal
– High beam
– Coolant temperature
– Tachometer
– Parking brake
– Fuel level
– Transmission oil temperature
– Brake system
– Transmission hold
– Hoist control
– Hydraulic system
– Charging system
– Retarder
– Transmission fault
– Traction control system
– Check engine lamp
Storage:
– Cup holder
– Flask receptacle
– Under seat storage
– Door pocket
– Behind operator seat storage
– Coat hook
10-inch touchscreen with Cat rearview camera
Seats:
– Operator: fully adjustable, air suspension
– Trainer: padded with lap belt
Retractable belt: Operator seat and second seat
Tilt and telescopic steering wheel
Sun visor
Liquid Crystal Display (LCD):
– Alert indicator
– Selected gear and direction
– Speed or auto shift
– Review Operation and Maintenance Manual (OMM)
– Primary steering failure warning
– Seat belt warning
– Secondary steering failure warning
– Diesel Particulate Filter (DPF) regeneration filter
– Machine Security System (MSS) ready
– Secondary steering energy source engaged
– Hour meter
– Retarder active
Adjustable air vents
Windshield wiper and washer, two speed (rear)
Secondary steering – electro hydraulic
Air conditioning with R134A refrigerant
Combined gear selection and hoist control lever
Glass windows:
– Front, laminated and tinted
– Sides and rear, toughened and tinted
Windows opening both sides, tinted
Heater and defroster with four-speed fan

cat technologies

Cat Detect with Stability Assist
Product Link
VisionLink
Push to Start with Operator ID
Product Link Cellular PLE643

electrical and lighting

Horn
Electrical system: 24-volt, 10A 24- to 12-volt converter
Remote starting receptacle (cables not included)
Batteries (two) maintenance free
Main disconnect switch
Lighting systems:
– Cab interior
– Two head lamps
– Two width marker
– Two reversing
– Work light/cab access light
– Two stop/tail lights
– Front and rear direction indicators
LED Rear Step Lights
Daylight running lights

powertrain

Cat C13A (LRC) or C13B (HRC) engine
Auto shift six-speed forward and single speed reverse transmission
Dual circuit oil immersed, enclosed brakes – all wheels
Retarder: engine compression brake
Differentials: standard with automatic clutched inter- and cross-axle differential locks
Cat Clean Emission Module (CEM) and exhaust aftertreatment package
Three axle, six-wheel drive
CX31 transmission

safety

Rearview camera
ROPS/FOPS cab
Reverse alarm
Dynamic Rollover Protection
Machine Speed Limiting

guards

Rear window
Crankcase
Radiator

other equipment

Vandalism protection: lockable caps
S·O·S sampling valves
Sound suppression (standard in some countries)
Mud flaps: wheel arch and body mounted with transportation tiebacks
Bare chassis (no body) standard wheel base

other standard equipment

Tires, six 750/65 R25
