C32B DE1500S Diesel Generator Set

At a glance data:

Standby Rating:
1500 ekW
Emissions/Fuel Strategy:
Low BSFC
Voltage:
400 to 415 Volts
Frequency:
60 Hz

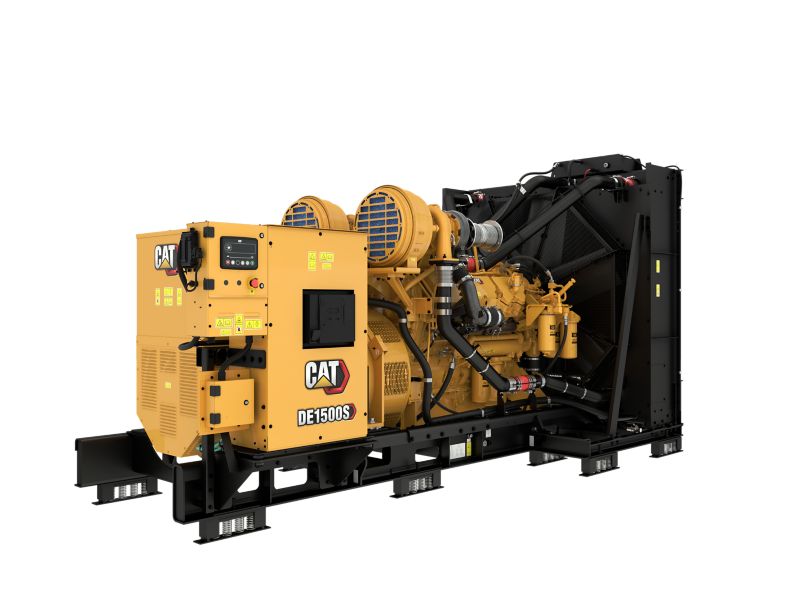

Front Left
Front Right
Print Electric Power Ratings Guide C32B, DE1500S,1500 ekW, 60Hz, Low BSFC Spec Sheet

Overview

Caterpillar is leading the power generation market with Power Solutions engineered to deliver unmatched flexibility, expandability, reliability, and cost-effectiveness.

Category:
Diesel Generator Sets

Brand:
Caterpillar

Generator Set Specifications

Standby Rating:
1500 ekW
Emissions/Fuel Strategy:
Low BSFC
Voltage:
400 to 415 Volts
Frequency:
60 Hz
Speed:
1800 rpm
Duty Cycle:
Standby, Mission Critical
Maximum Rating:
1500 ekW
Minimum Rating:
1500 ekW

Definitions and Conditions

Mission Critical:
1500 ekW

Engine Specifications

Engine Model:
C32B TA, V12, 4-Stroke Diesel
Bore:
5.7in
Stroke:
6.4in
Displacement:
1959in³
Compression Ratio:
14:1
Aspiration:
TA
Fuel System:
EUI
Governor Type:
ADEM™ A5

Generator Set Dimensions

Length - Minimum:
185.43in
Length - Maximum:
185.43in
Width - Minimum:
89.72in
Width - Maximum:
89.72in
Height - Minimum:
100.43in
Height - Maximum:
105.71in
Dry Weight - Genset (minimum):
18832lb
Dry Weight - Genset (maximum):
20155lb

Standard Equipment

air cleaner

  • Single Element

starting

  • Standard Batteries and Electric Starter

cooling system

  • Standard Radiator

alternator

  • 380 V
  • 480 V

alternator temperature rise

  • 80°C
  • 105°C
  • 125°C
  • 150°C

excitation

  • PM
  • IE

control panel

  • GCCP 1.3

connectivity

  • Cat® Product Link™ PL444 cellular

Optional Equipment

starting

  • Oversize Batteries and Heavy Duty Electric Starter

air cleaner

  • Dual Element

control panel

  • GCCP 1.4

cooling system

  • High Ambient Radiator

attachments

  • Anti-condensation Heater

mufflers

  • 15 dBA Industrial Grade

battery chargers

  • 20A
  • 10A
