At a glance data:
Pull-Down Capacity:
Up to 15 876 kg (Up to 35,000 lb)
Hole Diameter:
140-200 mm (5.5-7.87 in)
Engine:
Cat© C18
Bit Load:
Up to 16 964 kg (37,400 lb)
Overview

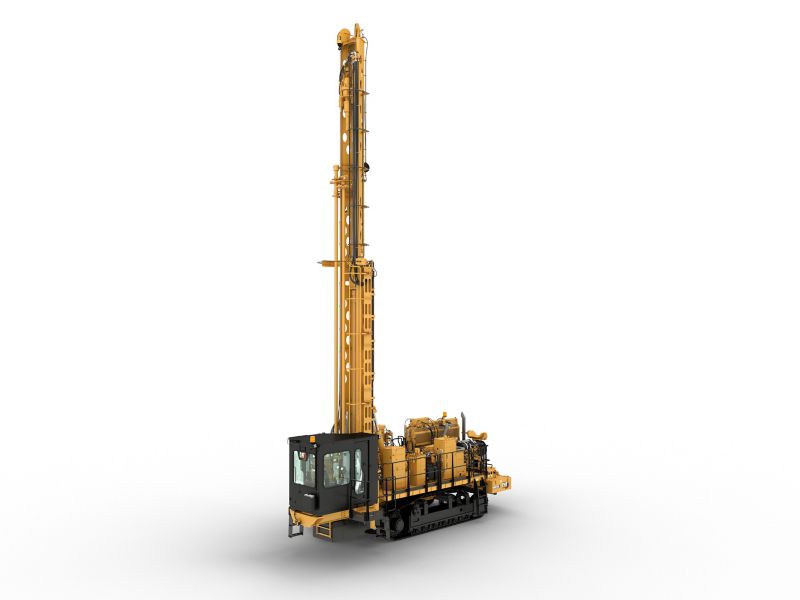

The Cat® MD6200 has the smallest shipping envelope of any drill in its class. It can be transported over the road with the mast on, so it can simply roll onto a truck when it’s time to move to another site. Additionally, its compact working envelope allows it to get it into position faster, reducing the time spent accessing drill patterns and moving between holes. Its oversized Cat 336 excavator-style undercarriage provides best-in-class tractive effort and drawbar pull and stands up to the toughest conditions on your site. Designed to drill holes from 127-200 mm (5.0-7.87 in) in diameter, the MD6200 is is optimized for single-pass or multi-pass drilling in both rotary and down-the-hole drilling modes.
Category:
Rotary Drills
Category:
Rotary Drills
Brand:
Caterpillar
Brand:
Caterpillar
Pull-Down/Hoisting Capacity
Pull-Down Capacity:
Up to 15 876 kg (Up to 35,000 lb)
Specifications
Hole Diameter:
140-200 mm (5.5-7.87 in)
Engine:
Cat© C18
Bit Load:
Up to 16 964 kg (37,400 lb)
Basic Specs
U.S. EPA Tier 2 Equivalent - Engine:
C18 @ 1,800 rpm
U.S. EPA Tier 2 Equivalent - Emissions:
U.S. EPA Tier 2 equivalent
U.S. EPA Tier 4 Final - Engine:
C18 @ 1,800 rpm
U.S. EPA Tier 4 Final - Emissions:
U.S. EPA Tier 4 Final
Compressor - Rotary Drilling:
32.6 cmm (1,150 cfm) @ 8.6 bar (125 psi)
Angle Drilling Available:
30 degrees to 0 degrees in 5-degree increments
Compressor Choices
DTH Drilling:
Includes tool lubrication system
Rotary Drilling:
Optional tool lubrication system
Note:
With the compressor's electronic controls plus variable volume control, the operator can adjust air output to reach optimal match of tool, flushing air and ground conditions. Both high and low pressure compressors contain this feature.
Receiver Tank Choices
Choice (1):
Low pressure 8.6 bar (125 psi)
Choice (2):
High pressure 24.1 bar (350 psi)
Cooling
Components (1):
Coolers with easy cleaning access
Components (2):
All cooler core sections are replaceable
Components (3):
Functional in ambient temperature of up to 52� C (125� F)
Components (4):
Automatic variable speed fan control
Climate Choices
Climate Level 1 Standard Fluids and Lubricants (1):
Rated down to -1C (30 F)
Climate Level 1 Standard Fluids and Lubricants (2):
Withstands high heat up to 52 C (125 F)
Frame and Work Deck
Features (1):
Jacks, mast pivot and deck are welded integrally to mainframe for maximum durability and long life
Features (2):
Slip resistant surfaces
Features (3):
Fuel tank capacity 833 L (220 gal)
Components (1):
Three leveling jacks provide leveling on a 7� bench (any orientation)
Components (2):
Heavy duty tow hooks (non-drill end)
Components (3):
Four (4) lift lugs, for use with cables or chains
Frame Access Choices
Choice (1):
Fixed access steps to the cab area
Choice (2):
Small platform to the cab includes fixed access steps
Drill Deck Misc.
Components (1):
Drill pipe thread greaser with remote fill tank that also accommodates disposable grease bucket
Undercarriage
Model:
Cat® 336 Excavator type
Carrier Rollers:
Three (3)
Triple Grousers (1):
600 mm (23.6 in); 0.89 bar (12.6 psi) ground pressure
Hydraulics
Components (1):
Two (2) main pumps: 85 cc (piston with proportional electronic controls)
Components (2):
One (1) auxiliary circuit pump: 45 cc (piston, load sensing)
Components (3):
One (1) fan pump: 45 cc (piston with proportional electronic controls)
Components (4):
One (1) charge pump: 73.8 cc (gear, fixed displacement)
Basic Specs
Bit Load (single-Pass):
37400lb
Dust Control Choices
High Volume Water Injection - Maximum - Tank Above Deck - Capacity:
200gal (US)
Mast Packages
Single-Pass Depth:
36ft
Engine Features
Feature (3):
Tier 4 Final package complete with DEF/Engine Shutdown Control Package
Compressor Choices
DTH Drilling - 1050 cfm/350 psi:
29.7 cmm (1,050 cfm) @ 24.1 bar (350 psi) with 113.5 L (30 gal) tool oiler
Engine Features
Feature (1):
Dual starter motors
Dust Control Choices
Water Injection - Tank Mounted Below Front Deck - Components:
Water flow meter, volume control, tank fill level indicator
Basic Specs
Hoist Speed:
4.3ft/s
Tool Package DTH
Components (8):
Top sub
Basic Specs
Hole Diameter Range:
140-200 mm (5.5-7.87 in)
Undercarriage
Drawbar Pull:
262 000 Nm (193,241 lbf-ft)
Dimensions (Approximate)
Width cab end*:
13.7ft
Basic Specs
Hole Depth Range - Single-Pass Depth:
36ft
Mast Packages
Multi-Pass Depth:
Down to 47.58 m (Down to 156 ft)
Pulldown - Rated Single Cylinder Pull-Down/Hoist System:
Up to 15 876 kg (Up to 35,000 lb)
Tool Package DTH
Components (7):
Drill tool lubricator is included with selection of DTH Compressor
Basic Specs
Compressor - DTH Drilling:
29.7 m_/min (1,050 ft_/min) @ 24.1 bar (350 psi)
Undercarriage
Components (1):
Track chain guards and guides
Basic Specs
Pull-DownCapacity:
Up to 15 876 kg (Up to 35,000 lb)
Mast Packages
Hoist:
Up to 11 907 kg (Up to 26,250 lb)
Basic Specs
Hoist Capacity:
Up to 11 907 kg (Up to 26,250 lb)
Hole Depth Range - Multi-Pass Depth:
Down to 47.58 m (Down to 156 ft)
Hydraulics
Components (5):
Scheduled Oil Sampling (S-O-S SM) ports
Engine Features
Feature (2):
Ether starting aid
Undercarriage
Lower rollers:
Eight (8)
Basic Specs
U.S. EPA Tier 4 Final - Power Rating (ISO 14396):
589hp
U.S. EPA Tier 2 Equivalent - Power Rating (ISO 14396):
587hp
Undercarriage
Travel Speed - High:
2mile/h
Drill Pipe
9.14 m (30 ft) pipes - Accepts quantity of four (4) - Option 5:
6in
9.14 m (30 ft) pipes - Accepts quantity of four (4) - Option 4:
5.5in
Undercarriage
Travel Speed - Low:
1.3mile/h
Climate Choices
Climate Level 2 Arctic Fluids and Lubricants, Engine Block and Manifold Heater 120V or 240V:
Rated down to -18 C (0 F)
Compressor Choices
Rotary Drilling - 1150 cfm/125 psi:
32.6 cmm (1,150 cfm) @ 8.6 bar (125 psi)
Dust Control Choices
High Volume Water Injection - Maximum - Tank Below Deck - Capacity:
200gal (US)
Tool Package Rotary
Components (7):
Drill tool lubricator (optional)
Frame Access Choices
Choice (3):
Platform access to the cab with full length service access walkway includes fixed access steps and self-closing gates
Dimensions (Approximate)
Width non-cab end:
11.7ft
Mast and Pipe Carousel Features
Features (1):
Pipe carousel:
Accepts quantity of four (4) 9.14 m (30 ft) pipes
Accepts quantity of four (4) 9.14 m (30 ft) pipes
Features (2):
Standard angle drilling package (0 to 30 degrees, in�5-degree�increments)
Dimensions (Approximate)
Height mast up:
54.3ft
Body Length:
31ft
Mast and Pipe Carousel Features
Features (4):
Hydraulically actuated, self-indexing pipe carousel accepts pipe diameters up to 152 mm (6.0 in)
Dimensions (Approximate)
Length mast down:
57.5ft
Height mast down:
11.75ft
Mast and Pipe Carousel Features
Features (5):
Drills strings configured for bit changes above deck
Features (6):
Single cylinder pulldown/hoist system
Dimensions (Approximate)
Mast only length:
52.1ft
Mast and Pipe Carousel Features
Features (7):
Sliding deck wrench assembly
Features (8):
Configured with roller deck bushing (for low pressure/tricone drilling)
Features (9):
Two-piece deck bushing (for high pressure DTH drilling)
Features (10):
Overhead winch with cable and hook plus remote control; variable speed drive with a 1361 kg (3,000 lb) rating
Features (11):
Variable grip hydraulic break out wrench grip range 101-152 mm (4.0-6.0 in)
Features (12):
Closed circuit camera mounted in mast to view pipe carousel/top drive operation
Features (13):
Pipe positioner for angle drilling, multi-pass pipe handling
Features (14):
Manual pipe catcher: One (1) wire rope, pipe catcher, pipe positioner, optional manual bit basket
Tool Package Rotary
Components (1):
One-piece roller deck bushing
Components (2):
Pipe positioner clamps
Components (3):
Deck wrench
Components (4):
Bit sub
Components (5):
Top sub
Components (6):
Pipe wiper seal
Tool Package DTH
Components (1):
Two-piece bushing
Components (2):
Pipe positioner clamps
Components (3):
Deck wrench
Components (4):
Shock sub
Components (5):
Cross over subs
Components (6):
Pipe wiper seal
Rotary Head Top Drive System
Torque - Single Motor:
6166lb/ft
Rotation Speed:
0-150 rpm
Components (1):
Rotary torque control
Components (2):
Virtual rotary head travel interlocks
Components (3):
Virtual rotary head travel interlocks
Operator Environment
Cab Design:
Falling Object Protective Structure (FOPS) certified cab includes:
- Rubber shock-mounts to absorb mechanical vibration
- Operator station design that integrates an ergonomic seat, joystick controls with full instrumentation, dual 254 mm (10 in) high-definition color screens and 12 volt power port
- Additional display screen for cc cameras; color, high-definition 254 mm (10 in)
- Power convertor 24V to 12V
- Radio-ready for communication and entertainment stereo
- Two swing out doors and Cat keyed locks
- Literature holder
- Storage area suitable for lunchbox
- Rubber shock-mounts to absorb mechanical vibration
- Operator station design that integrates an ergonomic seat, joystick controls with full instrumentation, dual 254 mm (10 in) high-definition color screens and 12 volt power port
- Additional display screen for cc cameras; color, high-definition 254 mm (10 in)
- Power convertor 24V to 12V
- Radio-ready for communication and entertainment stereo
- Two swing out doors and Cat keyed locks
- Literature holder
- Storage area suitable for lunchbox
Cab Packages:
Standard configuration includes a fabric seat, removable floor mat, single pane window glass and driller window guard
Premium configuration includes a leather seat with heat and ventilation, heavy duty suspension, dual pane window glass and driller window guard.
Premium configuration includes a leather seat with heat and ventilation, heavy duty suspension, dual pane window glass and driller window guard.
Seating:
- Swivel seat is fully ergonomic, with tilt (5° adjustment), lumbar support, and fore/aft seat adjustment 80 mm (3.1 in)
- Seat locks and has two point retractable, 76 mm (3 in) seat belt
- Seat locks and has two point retractable, 76 mm (3 in) seat belt
Windows:
- Large windows on the front, rear and right cab side; full length drill window with guard
- Window shades (option)
- Windshield wiper with a common washer tank
- Manometer Pressure Gauge (option)
- Window shades (option)
- Windshield wiper with a common washer tank
- Manometer Pressure Gauge (option)
Lighting:
- LED interior lights, backlit joysticks and keypads
- Flood lights for the drill perimeter; area spotlights
- Mast beacon and tram flashing strobe light (option)
- Flood lights for the drill perimeter; area spotlights
- Mast beacon and tram flashing strobe light (option)
HVAC:
- Floor heating vent
- Filter access from deck, 500 hour service interval
- Defogging HVAC vents on main window
- Filter access from deck, 500 hour service interval
- Defogging HVAC vents on main window
Cameras:
- Three (3) CC cameras (front, right and left sides) provide 360° visibility from operators seat; camera on the mast to view pipe carousel/top drive operation
Operating System Controls - Standard
Components (1):
Electric controls for drilling, tramming, leveling plus auxiliary functions
Components (2):
Rotary torque control
Components (3):
Virtual rotary head travel stops
Components (4):
Pipe positioner engaged/disengaged indicator
Components (5):
Drill depth meter
Components (6):
Drill performance and display system
Components (7):
Delayed engine shut down
Components (8):
Filter indicators for hydraulic, fuel, compressor and engine
Components (9):
Jack pressure sensors
Components (10):
Data logging of machine health with warnings and fault code records with export capability
Components (11):
Dust suppression control
Components (12):
Mast lock indicator
Components (13):
ECM proportional fan speed control system
Components (14):
Tram interlock, machine stability limits
Components (15):
Tram interlock, pipe in hole
Components (16):
Tram interlock, mast up and locked or down and parked
Components (17):
Tram interlock, jacks retracted
Components (18):
Tram interlock, winch parked
Components (19):
Cab environment controls (AC, heat, fan speeds)
Dimensions (Approximate)
Note:
*Contact the factory for width with platform access to cab or service platform walkway.
Operating System Controls - Standard
Components (20):
Pre wired for Terrain and Autonomous Operation
Automation and Technology
Type (1):
Autonomous ready
Components (1):
Drill depth meter
Components (2):
Drill Assist Automated Functionality (onboard technology):
- Auto Level (with auto retract jacks)
- Auto Mast (raise, lower and lock into place)
- Auto Dril (single pass)
- Auto Level (with auto retract jacks)
- Auto Mast (raise, lower and lock into place)
- Auto Dril (single pass)
Components (3):
Cat Terrain ready
Components (4):
Product Link™ Elite
Dust Control Choices
Water Injection - Tank Mounted Below Front Deck:
200gal (US)
High Volume Water Injection - Maximum - Tanks Total Capacity:
400gal (US)
Water Injection plus Dust Collector (1):
76.5 cmm (2,700 cfm) dust collector; includes standard water injection
Water Injection plus Dust Collector (2):
Self-cleaning filters, dust chute clean-out door
Choices (1):
Static dust curtains, four sides boxed enclosed
Choices (2):
Dust curtain hydraulic lifters raise front and rear dust curtains (option) (recommended with dry dust collector)
Choices (3):
Tram off spray system (option)
Safety and Security
Feature (1):
Approach angle of 15-degrees facilitates loading and unloading on a lowboy
Components (1):
Seven (7) emergency stop buttons
Components (2):
Hinged window guard over the full length of the front drill window
Components (3):
Conditional safety interlocks
Components (4):
Self-closing gates
Components (5):
Electric horn activated by push button in the cab
Components (6):
Automatic, audible tram alarm
Components (7):
Battery disconnect and starter switches can be locked out
Components (8):
Air hose retention devices
Components (9):
Slip resistant platform surfaces
Components (10):
Machine lifting provisions
Components (11):
FOPS Certified Operator Cab
Service Packages
Package (1):
Basic Package: Centralized manual lubrication for all pivot points, gravity fill for fuel and water
Package (2):
Standard Package: Automated lubrication system, fast fill for fuel and water (option)
Package (3):
Premium Package: Automated lubrication system, fast fill fuel and water, service center for lubricant drain and fill plus blowdown hose (option)
Weights
Working Weight Range:
40 823 - 45 359 kg (90,000 - 100,000 lb)
Standard Equipment
frame access
- Fixed access steps to cab area
- Small platform to the cab includes access steps
- Platform access to the cab with full-length service access walkway includes access steps (option) and self-closing gates
undercarriage
- Cat 336 Excator type
- Track chain guards and guides
engine
- Cat C18 (Tier 4 final/EU Stage V)
- Cat C18 (U.S. EPA Tier 2 Equivalent)
Optional Equipment
mast
- Overhead winch assembly with cable and hook, plus remote control; variable speed drive with a 1361 kg (3,000 lb) rating
- Tool lubrication system for Rotary Drilling with 113.5 L (30 gal) capacity
- Pipe thread greaser with reloadable tank or disposable grease bucket
- Manual bit basket
service tools
- Bushing retention tool – 89 to 152 mm (3.5 to 6.0 in) wrench flats
- Lifting bails (available on request; required for commissioning)
- API thread 89 mm (3.5 in)
- API thread 114 mm (4.5 in)
- BECO thread 76 mm (3.0 in)
- BECO thread 89 mm (3.5 in)
- BECO thread 101 mm (4.0 in)
- BECO thread 114 mm (4.5 in)
operator environment
- Cab pressure gauge
- Window shades
- Drill assist; single pass auto drill
technology products
- Product Link Elite; satellite, cellular or dual
- Terrain guidance system hardware
dust suppression
- Dust curtains, four sides boxed in, with hydraulic lifters to raise front and rear dust curtains (recommended with dry dust collector)
- Tram off spray system
drill bits, rotary tricone
- Recommended for rotary applications
- All bits have standard nozzles
- Obtain S/M/H codes from the Rock Formation to Bit Conversion table https://catpublications.com search for PEXQ1027
- Ship out plans for each drill configuration allow for one pallet of bits. Additional pallets may require an additional truck.
– 171 mm (6.75 in), Option 1, (S2)
– 171 mm (6.75 in), Option 2, (M1)
– 171 mm (6.75 in), Option 3, (M3)
– 200 mm (7.875 in), Option 1, (S2)
– 200 mm (7.875 in), Option 2, (M1)
– 200 mm (7.875 in), Option 2, (M3)
drill pipe
- 9.14 m (30 ft) pipes – Accepts quantity of four (4)
– 101 mm (4 in) pipe (2.875 in API Reg Threads)
– 114 mm (4.5 in) pipe (3 in BECO Threads)
– 127 mm (5 in) pipe (3.5 in BECO Threads)
– 140 mm (5.5 in) pipe (4 in BECO Threads)
– 152 mm (6 in) pipe (4.5 in BECO Threads)
Similar Products
MD6200 Rotary Blasthole Drill Specifications
Pull-Down Capacity:
Up to 15 876 kg (Up to 35,000 lb)
Hole Diameter:
140-200 mm (5.5-7.87 in)
Engine:
Cat© C18
Bit Load:
Up to 16 964 kg (37,400 lb)
