730 EJ Articulated Truck

At a glance data:

Engine Model:
Cat® C13
Bore:
5.1in
Rated Payload:
30ton (US)
Heaped (SAE 2:1):
22.1yd³

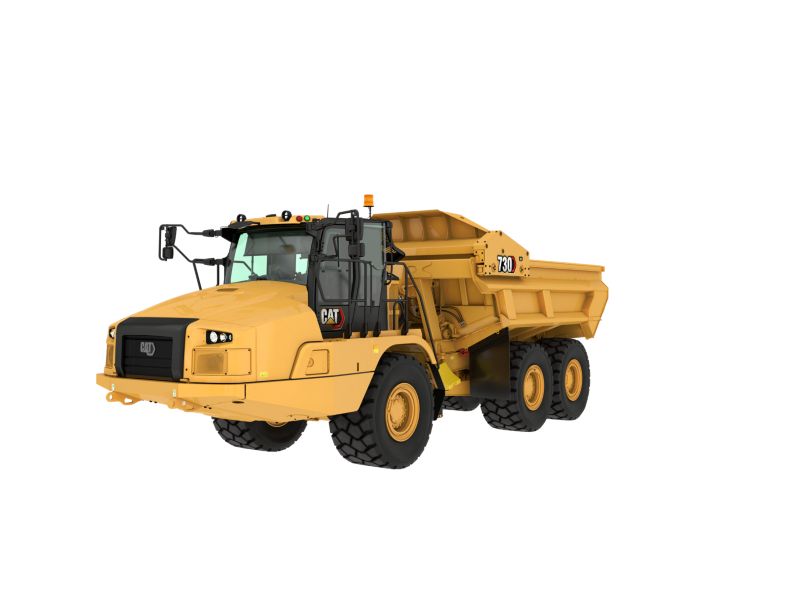

730 EJ Three Axle Articulated Truck

Overview

The Cat 730 EJ with a 16.9 m³ (22.1 yd³)/27.1 tonnes (30 tons) capacity, offers demonstrated reliability and durability, high performance and productivity and a new world-class cab to improve operator comfort and ease of operation Updating the successful 730C2 EJ to include the new cab design makes the 730 EJ a more attractive proposition for our customers. Class leading levels of performance and new features such as Advanced Automatic Traction Control (AATC) and Assisted Ejecting Control create operator comfort, making a productive machine all day long. The machines retain all axle enclosed wet brakes and Advanced Productivity Electronic Control Strategy (APECS).

Category:
Three Axle Articulated Trucks

Brand:
Caterpillar

Engine

Engine Model:
Cat® C13
Gross Power (SAE J1995):
375hp
Net Power (SAE J1349):
367hp
Engine Power (ISO 14396):
370hp
Bore:
5.1in
Stroke:
6.2in
Displacement:
762.8in³
Note (1):
Advertised power is tested per the specified standard in effect at the time of manufacture.
Note (2):
Advertised power is tested at 1,800 rpm.
Note (3):
The net power advertised is the power available at the flywheel when the engine is equipped with alternator, air cleaner, aftertreatment and fan at minimum speed.
Note (4):
Net power when the fan is at maximum speed is 274 kW (367 hp) per the SAE reference conditions.
Note (5):
Meets U.S. EPA Tier 4 Final, EU Stage V, Korea Stage V, and Japan 2014 emission standards.
Note (6):
Diesel Exhaust Fluid (DEF) used in Cat SCR systems must meet the requirements outlined in ISO 22241-1. ISO 22241-1 requirements are met by many brands of DEF, including those that carry the AdBlue® or API certifications.
No Engine De-rating Required Below:
12500ft
Peak Engine Torque Gross (SAE J1995):
1579lbf·ft
Peak Engine Torque Net (SAE J1349):
1564lbf·ft
Peak Engine Torque Speed:
1200r/min

Weights

Rated Payload:
30ton (US)

Air Conditioning System

Air Conditioning:
The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a or R1234yf. See the label or instruction manual for identification of the gas. • If equipped with R134a (Global Warming Potential = 1430), the system contains 1.1 kg (2.4 lb) of refrigerant which has a CO2 equivalent of 1.716 metric tonnes (1.891 tons).

Body Capacities

Heaped (SAE 2:1):
22.1yd³
Struck:
17.7yd³

Transmission

Forward - 1:
5mile/h
Forward - 2:
9mile/h
Forward - 3:
14mile/h
Forward - 4:
21mile/h
Forward - 5:
29mile/h
Forward - 6:
34mile/h
Reverse - 1:
6mile/h

Sound Levels

Interior Cab:
72dB(A)
Note (1):
The declared dynamic operator sound pressure level is 72 dB(A) when ISO 6396:2008 is used to measure the value for an enclosed cab. The measurement was conducted at 70% of the cooling fan’s maximum speed. The sound level may vary at different cooling fan speeds. The measurement was conducted with the cab doors and the cab windows closed. The cab was properly installed and maintained.
Note (2):
Hearing protection may be needed when operating with an open operator station and cab or when not properly maintained or doors/ windows open for extended periods or in noisy environments.

Operating Weights

Front Axle - Empty:
34723lb
Center Axle - Empty:
12214lb
Rear Axle - Empty:
11707lb
Total - Empty:
58643lb
Front Axle - Rated Load:
1433lb
Center Axle - Rated Load:
29156lb
Rear Axle - Rated Load:
29156lb
Total - Rated Load:
59745lb
Front Axle - Loaded:
35009lb
Center Axle - Loaded:
41502lb
Rear Axle - Loaded:
41017lb
Total - Loaded:
117528lb

Body Plate

Type:
High strength Brinell HB450 wear resistant steel

Eject/Retract Times

Eject Time:
12s
Retract Time:
15s

Service Refill Capacities

Fuel Tank:
108.8gal (US)
DEF Tank:
5.3gal (US)
Cooling System:
21.9gal (US)
Hydraulic System:
29.1gal (US)
Engine Crankcase:
10gal (US)
Transmission:
12.4gal (US)
Final Drives/Differential:
33gal (US)
Output Transfer Gear Box:
6.3gal (US)

Standards

Brakes:
ISO 3450 – 2011
Cab - FOPS:
ISO 3449 Level II – 2005
Cab - ROPS:
ISO 3471 – 2008
Steering:
ISO 5010 – 2019

Turning Circle

Turning Dimensions - Steer Angle - Left/Right:
45°
Turning Dimensions - SAE Turning Radius:
294in
Turning Dimensions - Clearance Radius:
318in
Turning Dimensions - Inside Radius:
152in
Turning Dimensions - Aisle Width:
214in
Note:
Dimensions are for machines equipped with 750/65 R25 tires.

Steering

Lock to Lock:
4.75 seconds @ 60 rpm

Optimal Loader/Truck Pass Matching

Hydraulic Excavators: 349/352 - Passes:
4-5
Hydraulic Excavators: 336 - Passes:
5-6
Wheel Loaders: 972/972 XE - Passes:
3-4
Wheel Loaders: 966/966 XE - Passes:
4
Wheel Loader: 962 - Passes:
4-5
Wheel Loader: 950 - Passes:
5
Note:
An optimum system match gives you a major productivity advantage. The 730 EJ is an excellent match for the Cat 349/352 and 336 Hydraulic Excavators; and Cat 972, 966, 962 and 950 Wheel Loaders. Having matched loading and hauling tools results in increased production and lower system costs per unit of volume moved.

Standard Equipment

note

  • Standard and optional equipment may vary. Consult your Cat dealer for details.

operator environment

  • Adjustable air vents
  • Combined gear selection and eject control lever
  • Glass windows:
    – Front, laminated and tinted
    – Sides and rear, toughened and tinted
  • Air conditioning
  • Heater and defroster with four-speed fan
  • Mirrors: exterior
  • Machine operation monitoring system includes:
    – Action lamp
    – Engine oil pressure
    – Primary steering system
    – Left and right turn signal
    – High beam
    – Coolant temperature
    – Tachometer
    – Parking brake
    – Fuel level
    – Transmission oil temperature
    – Brake system
    – Transmission hold
    – Eject control
    – Hydraulic system
    – Charging system
    – Retarder
    – Transmission fault
    – Traction control system
    – Check engine lamp
  • Liquid Crystal Display (LCD):
    – Alert indicator
    – Selected gear and direction
    – Speed or auto shift
    – Review Operation and Maintenance Manual (OMM)
    – Primary steering failure warning
    – Seat belt warning
    – Secondary steering failure warning
    – Diesel Particulate Filter (DPF) regeneration filter
    – Machine Security System (MSS) ready
    – Secondary steering energy source engaged
    – Hour meter
    – Retarder active
  • Seats:
    – Operator: fully adjustable, air suspension
    – Trainer: padded with lap belt
  • Secondary steering – electro hydraulic
  • Storage:
    – Cup holder
    – Flask receptacle
    – Under seat storage
    – Door pocket
    – Behind operator seat storage
    – Coat hook
  • Sun visor
  • Tilt and telescopic steering wheel
  • Touchscreen display incorporating the rearview camera video feed
  • Retractable belt: Operator seat and second seat
  • Windows opening both sides, tinted
  • Windshield wiper and washer, two speed, intermittent (front)

technology

  • Product Link™ Cellular PLE643
  • Cat Detect with Stability Assist

electrical and lighting

  • Batteries (two) maintenance free
  • Electrical system: 24-volt, 10A 24- to 12-volt converter
  • Horn
  • Lighting systems:
    – Cab interior
    – Two head lamps
    – Two width marker
    – Two reversing
    – Work light/cab access light
    – Two stop/tail lights
    – Front and rear direction indicators
  • Main disconnect switch
  • Remote starting receptacle (cables not included)

powertrain

  • Auto shift six-speed forward and one reverse transmission
  • Cat C13 engine
  • Cat Clean Emission Module (CEM) and exhaust aftertreatment package
  • Differentials: standard with automatic clutched inter- and cross-axle differential locks
  • Dual circuit oil immersed, enclosed brakes – all wheels
  • Retarder: engine compression brake
  • Three axle, six-wheel drive

safety

  • Reverse alarm
  • Rearview camera
  • Rollover protective structure/falling objects protective structure (ROPS/FOPS) cab

guards

  • Rear window
  • Radiator
  • Crankcase
  • Front dump body spill guard

other standard equipment

  • Mud flaps: wheel arch and body mounted with transportation tiebacks
  • S·O·S sampling valves
  • Tires, six 750/65 R25 radial
  • Vandalism protection: lockable caps
  • Sound suppression (standard in some countries*)
    * Countries are EU countries plus Iceland, Norway, Lichtenstein, Switzerland, Türkiye and UK.
  • Hydraulic tailgate

Optional Equipment

note

  • Standard and optional equipment may vary. Consult your Cat dealer for details.

operator environment

  • Mirrors, heated motorized
  • Operator seat belt, four-point
  • Radio, Bluetooth® stereo system
  • Seat, heated/cooled

technology

  • Cat Payload monitoring system
  • Product Link Dual PLE683

electrical and lighting

  • Engine block heater
  • Cold weather start attachment
  • Ether start
  • Flashing LED beacon
  • Roof mounted LED work lights

optional equipment

  • Auto lube installation for automatic greasing of bearings
  • Cold weather coolant –51° C (–60° F)
  • Exhaust heated body
  • Machine Security System (MSS)
  • Fast fuel fill
  • Fuel additive – anti-waxing
  • Wheel chocks
