SG16 Stump Grinder

At a glance data:

Required Hydraulics:
Standard Flow
Cutting Wheel Diameter - With Teeth:
21.5in
Cutting Depth - Below Ground:
20.5in
Cutting Head Extension:
11in

attachment

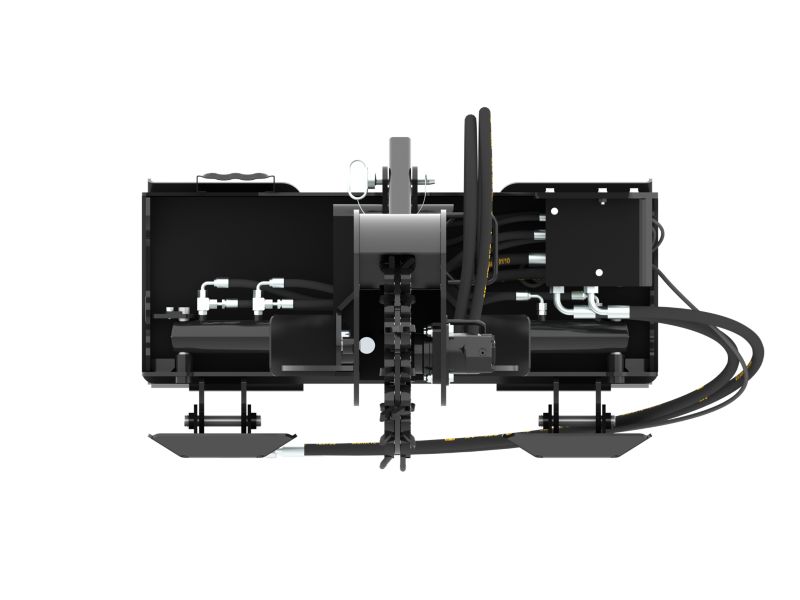

Front View
Studio Shot
Front View
Top View
Left View
Rear View
Bottom View
Right View
Cat® 297D2 and SG18B Stump Grinder at Work
Cat® SG18B Stump Grinder at Work
Print Cat® Stump Grinders Brochure

Overview

Cat® Stump Grinders are designed to economically remove stumps in residential, commercial and agricultural settings. They offer increased production over tow-behind grinders in situations where multiple stump removal is required. The right balance of cutting wheel speed and torque makes quick work of most tree varieties.

Category:
Stump Grinders

Brand:
Cat

Required Hydraulics:
Standard Flow

Cutting Wheel Diameter - With Teeth:
21.5in

Cutting Depth - Below Ground:
20.5in

Cutting Head Extension:
11in

Cutting Head Speed at Maximum Flow:
993 rpm

Cutting Head Swing Range:
70 degrees

Cutting Height - Above Ground:
18.5in

Cutting Wheel Width - With Teeth:
3.3in

Cutting Width - Full Swing Range:
60in

Drive Method:
Gerotor Motor- Direct

Drive Shaft Torque at Maximum Pressure:
217.6lb/ft

Motor Displacement:
4.9in³

Optimal Hydraulic Pressure:
145-235 bar (2100-3400 psi)

Overall Height:
28.7in

Overall Length:
68.4in

Overall Width:
46.3in

Optimal Hydraulic Flow:
42-86 L/min (11-23 gpm)

Weight:
835.6lb

Number of Carbide Teeth per Cutting Wheel:
32

Standard Equipment

Optional Equipment
