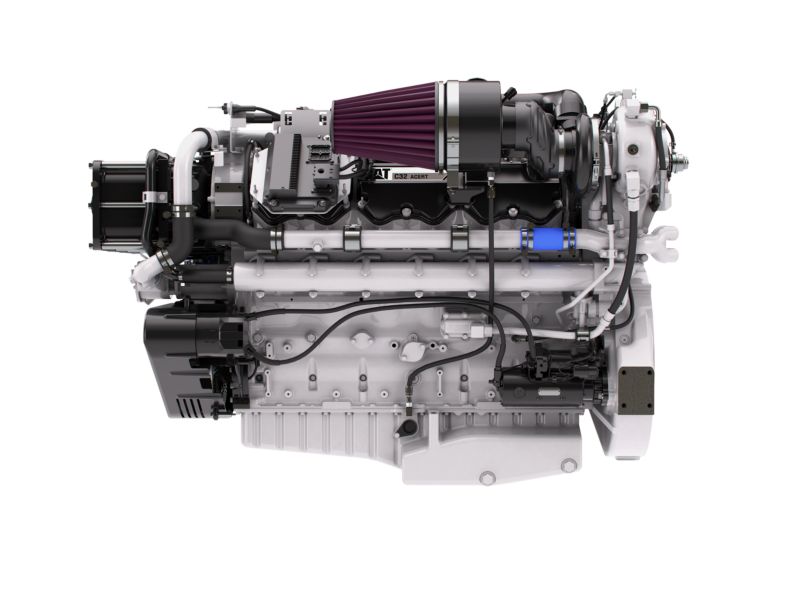

Cat C32 Marine Propulsion Engine High Performance Applications

At a glance data:

Power Range:
1600-1900 bhp (1193-1417 bkW)
Speed Range:
2300 rpm
Emissions:
IMO II, U.S. EPA Tier 3 Recreational, RCD, China Stage II
Aspiration:
Twin Turbocharged-aftercooled

Overview

C32 propulsion engine ratings of 1925 mhp (1900 bhp) 1417 bkW, 1825 mhp (1800 bhp) 1342 bkW, and 1622 mhp (1600 bhp) 1193 bkW are available with heat exchanger cooling. These ratings are compliant for U.S. EPA Tier 3 Recreational, EU Stage IIIA, and IMO II. The 1600 and 1800 bhp ratings are also meet US EPA Tier 3 Commercial Standards. The engine configuration includes an air cleaner and CCV system as well as jacket water aftercooling. Additional features include a “plug-in PTO”, an MECP I control panel, and hybrid fuel lines. The MECP I panel has a monochrome display for engine parameters, external outputs for customer installed visible and audible alarms, Start/Stop buttons, and an Off/Local/Remote switch.

Category:
High Performance Propulsion and Maneuvering Solutions

Brand:
Caterpillar

Ratings

Power Range:
1600-1900 bhp (1193-1417 bkW)

Engine

Speed Range:
2300 rpm
Emissions:
IMO II, U.S. EPA Tier 3 Recreational, RCD, China Stage II
Aspiration:
Twin Turbocharged-aftercooled
Bore:
5.71in
Stroke:
6.38in
Displacement:
1959in³
Rotation from Flywheel End:
Counterclockwise
Configuration:
Vee 12, 4-Stroke Cycle diesel

Dimensions & Weights

Length:
82.9in
Width:
58.3in
Height:
56.9in
Dry Weight:
6780lb

Standard Equipment

control system

  • ADEM IV Electronic Control Module
  • Electronic Diagnostics and Fault Logging
  • Engine and Transmission Monitoring
  • Programmable Low Idle
  • 70-Pin Customer Connector

air inlet system

  • Air Cleaner / Fumes Disposal

cooling system

  • Sea Water Aftercooler
  • Titanium Plate Heat Exchanger with Expansion Tank
  • Gear-driven Jacket Water and Sea Water pumps

exhaust system

  • Water-cooled Exhaust Manifolds and Turbochargers

fuel system

  • MEUI Fuel System
  • Fuel Priming and Transfer Pump
  • Simplex Fuel Filters

standard equipment

  • Engine and Transmission Monitoring
  • Fuel Priming and Transfer Pump

lube system

  • 250-hr Oil Pan (Shallow Sump)
  • Simplex Oil Filters
  • Gear Driven Oil pump

general

  • RH or LH Service Side Options

control system

  • Throttle Inputs

flywheel housing

  • Flywheel Housing SAE 0

Optional Equipment

cooling system

  • 120 V or 240 V Jacket Water Heater

power take offs

  • SAE A or B PTO (LH or RH rear)

charging system

  • 75 A or 105 A Alternator
  • Battery Sets

protection

  • Spray Shielding

starting system

  • Electric Starting motor

mounting system

  • Isolator Mounts

fuel system

  • Primary Fuel / Water Separator

exhaust system

  • Muffler
  • Felixible Fitting
