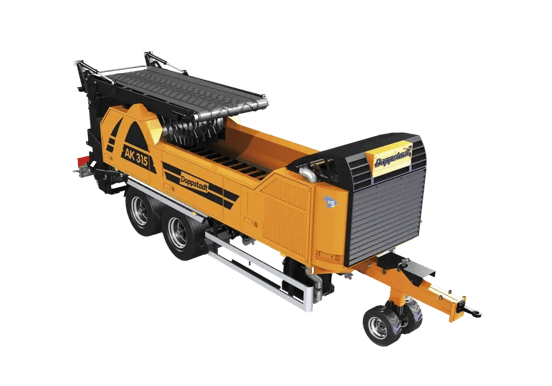

Doppstadt AK315 High Speed Grinder

At a glance data:

Chassis:
2 axle trailer
Drive:
Diesel Engine - MTU 6R1000
Power:
308 hp
Fuel Tank:
80 gallons

Overview

The AK 315 may be the smallest Doppstadt® high-speed grinder, but it easily handles most tasks. This compact mobile machine can manage a wide variety of applications and provides maximum flexibility. With its upgraded electrical system, hydraulic belt-tightener, more powerful main drive, and modular design, the AK 315 high-speed grinder is highly customizable to fit your operation.

Category:
Chippers and Grinders

Brand:
Ecoverse

General Specifications

Chassis:
2 axle trailer
Drive:
Diesel Engine - MTU 6R1000
Power:
308 hp
Fuel Tank:
80 gallons

Standard Equipment

drive system

  • Engine: MTU 6R 1000
  • Power Output: 308 hp / 230 kW
  • Fuel Tank Capacity: 80 gallons (diesel)

chassis

  • Configuration: 2-axle trailer
  • Hopper Loading Height: 6' 7"

mill system

  • Mill Width: 57"
  • Mill Diameter: 35"
  • Hammer Configuration: 16/28 hammers (two rows)
  • Mill Speed: 1140 – 1320 RPM

conveyors

  • Rear Conveyor Length: 19' 6"
  • Rear Conveyor Width: 59"
  • Rear Discharge Height: 11' 6"

transport dimensions

  • Length: 30' 3"
  • Width: 6' 9"
  • Height: 10' 2"
  • Total Weight: 35,273 lbs

Optional Equipment
