Doppstadt Inventhor Type 6 High-Torque Shredder

At a glance data:

Chassis:
2-speed steel tracks
Drive:
Diesel Engine - MTU 6R1000
Power:
354 hp
Fuel Tank:
110 gallons

Overview

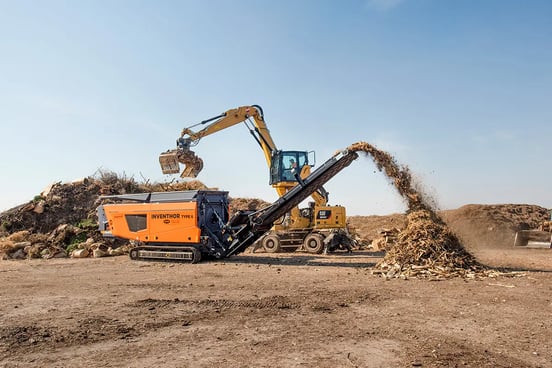

The new standard of quality in shredding: the INVENTHOR Type 6. This next-generation high-torque shredder carries on the Doppstadt® tried-and-true single-shaft shredding technology and is equipped with a totally new drive train concept, redesigned hopper, and unprecedented access to the machine interior for service and maintenance.With decades of innovation behind it, Doppstadt shredders are found on landfill and material processing sites around the world, where they tackle challenging applications like C&D, industrial waste, green waste, MSW, and more.

Category:
Chippers and Grinders

Brand:
Ecoverse

General Specifications

Chassis:
2-speed steel tracks
Drive:
Diesel Engine - MTU 6R1000
Power:
354 hp
Fuel Tank:
110 gallons

Standard Equipment

drive system

  • Engine: MTU 6R1000
  • Power Output: 354 hp
  • Fuel Tank Capacity: 110 gallons (diesel)

chassis

  • Track Type: 2-speed steel tracks
  • Hopper Loading Height: 10' 3"

shaft system

  • Shaft Length: 7' 2"
  • Shaft Diameter: 24"
  • Tooth Configuration: 15-tooth²
  • Comb Configuration Tooth Size: 174 mm
  • Shredding System Speed: 30 rpm (2 rpm reverse)

conveyors

  • Rear Conveyor Length: 23'
  • Rear Conveyor Width: 48"
  • Rear Discharge Height: 9' 8"
  • Unders Conveyor Length: 9' 6"
  • Unders Conveyor Width: 32"

transport dimensions

  • Length: 25' 2"
  • Width: 8' 10"
  • Height: 11'
  • Total Weight: Approx. 53,000 lbs

Optional Equipment
