At a glance data:
Electric Power:
460 volt, 60Hz, 3-phase electric
Main Hydraulic Tank Capacity:
95 gal
Machine Weight:
54,000 lbs
Overview

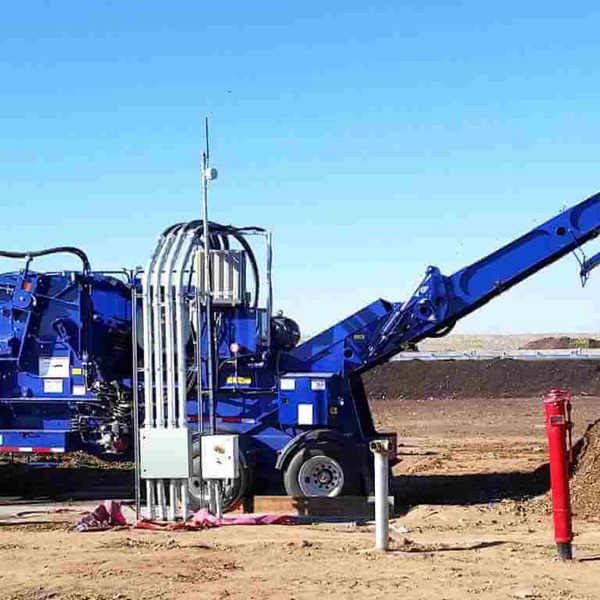

The 2750D electric horizontal grinder is ideal for operations that can take advantage of stationary or semi-stationary operations. Powered by a single 600 horsepower (450 kW) electric motor, the Peterson 2750D has plenty of power. Since electric power costs are typically much lower than diesel fuel costs, electric power may just be the answer for increasing your profits. With a feed opening of 60¾ x 32 inches (154 x 81 cm) combined with Peterson’s high lift feed roll for an optional opening up to 44 inches (112 cm) high, the 2750D can reduce a diverse range of raw materials.
Category:
Chippers and Grinders
Category:
Chippers and Grinders
Brand:
Brand:
General Specifications
Electric Power:
460 volt, 60Hz, 3-phase electric
Main Hydraulic Tank Capacity:
95 gal
Machine Weight:
54,000 lbs
Standard Equipment
dimensions
- Operating Length: 52' 6"
- Operating Width: 9' 1"
- Operating Height: 16' 9"
- Travel Width: 9' 1"
- Travel Length: 39' 11"
- Travel Height: 11' 6"
- Frame Length: 38' 6"
- Ground Clearance: 10"
- Axle Spacing: 60"
- Front to 5th Wheel: 5' 11"
- 5th Wheel to Center Rear Axle: 30' 9"
- 5th Wheel Clearance Radius: 6'
- 5th Wheel Height: 3' 8"
weights
- Machine Weight: Approx. 54,000 lbs
- 5th Wheel Weight: Approx. 21,000 lbs
- Tandem Axle Weight: Approx. 33,000 lbs
powertrain
- Electric Power: USA: 460 volt, 60Hz, 3-phase; Europe: 400 volt, 50Hz, 3-phase; Canada: 575 volt, 60Hz, 3-phase
- Rotor Drive Motors: crusher duty, 2 x 600 hp
- Hydraulic System Motor: high efficiency 100 hp
- Main Hydraulic Tank Capacity: 95 gal
system controls
- Adaptive Control System: Yes
- Radio Remote: Yes
- Peterson+ Analytics: Yes
feed systems
- Feed Opening (w x h): 60" x 32"
- Hopper Width: 60"
- Feed Conveyor Width: 4'10"
- Feed Chain: 4 sections, full hopper width
- Compression Roll Diameter: 28"
- Land Clearing Mode: 60" x 44"
rotor & grates
- Rotor Width: 60"
- Rotor Diameter: 32"
- Rotor Shaft Size: 5" @ bearing, 5.75" @ center
- Bit Size: 2.75" x 5"
- Number of Bits: 20 drum rotor, 18 pinned rotor, 30 ASG rotor
- Rotor Speed: 10,000 fpm @2100 rpm
- Number of Grate Sections: 4
- Total Grate Area: 21 ft²
- Grate Coverage: 180º
- Grate Thickness: 1"
discharge system
- Discharge Conveyor Width: 48"
- Discharge Conveyor Height: 16' 9"
- Conveyor Speed: 500, 600, or 700 fpm
production
- Greenwaste Volume: 264 yd³
- Greenwaste Weight: 77 tons
- Scrap Board Volume: 323 yd³
- Scrap Board Weight: 55 tons
options
- Magnetic Head Pulley: Yes
- LED Work Lights: Yes
- Dust Control: Yes
- Crossbelt Magnet: Yes
- Scrap Metal Collection Box: Yes
- Export Kit: Yes
- CE Certification: No
- Feed Tailgate: Yes
- Cold Weather Kit: No
- Air Compressor: No
- R+ Package: No
- ASG Package: Yes
- Flat Feed Deck: Yes
- Liquid Injection System: No
- Tow Dolly: No
- Extra-Long Discharge Conveyor: Yes
Optional Equipment
