At a glance data:
Overview

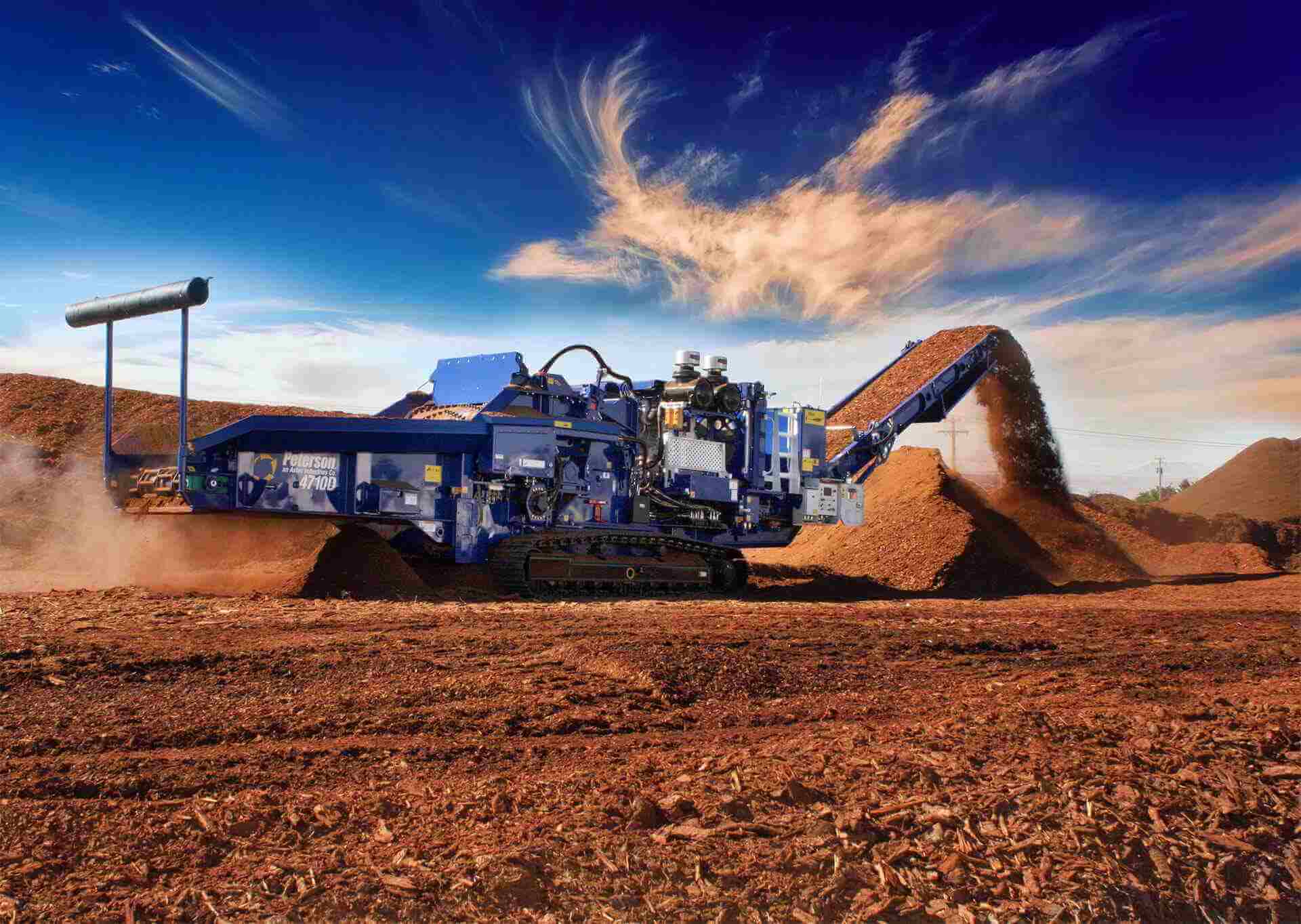

The 4710D Horizontal Grinder is a track mounted horizontal grinder designed for high-volume producers with very demanding end-product specifications.Boasting 18 inches (46 cm) of ground clearance—this model is particularly suited for land clearing operations or other applications where mobility and frequent moving is desired. Track mounting also reduces material handling costs in conventional recycling yards as well. The 4710D Horizontal Grinder is powered by a Tier IV Caterpillar C18 engine rated at 755 horsepower (563 kW). A Tier II (export only), 765 horsepower (570 kW) engine is also available. It features Peterson’s Adaptive Control System, which controls all components of the feed system to optimize output. This system senses variations in the engine load and adapts the operating parameters to produce the maximum amount of material at all times.
Category:
Chippers and Grinders
Brand:
General Specifications
Standard Equipment
dimensions
- Operating Length: 56' 9"
- Operating Width: 11'
- Operating Height: 16' 8"
- Travel Width: 9' 10"
- Travel Length: 44' 11"
- Travel Height: 11' 10"
- Frame Length: 37' 2"
- Front Angle of Approach: 11°
- Rear Angle of Approach: 22°
- Ground Clearance: 18"
weights
- Machine Weight: 72,500 lbs
powertrain
- Engine: Caterpillar C18 Tier IV, 755 hp; Caterpillar C18 Tier II, 765 hp (export only)
- Clutch: PT Tech HPTO 15
- Fuel Tank Capacity: 300 gal
- Main Hydraulic Tank Capacity: 90 gal
system controls
- Adaptive Control System: Yes
- Radio Remote: Yes
- Peterson+ Analytics: Yes
tracks
- Track Type & Width: triple grouser, 23.5"
- Travel Speed: 1.2/2.3 mph
- Ground Pressure: 11.4 lbs/in²
- Track Length: 15'
- Front to Track Length: 14' 10"
feed system
- Feed Opening (w x h): 60" x 38"
- Hopper Width: 60"
- Feed Conveyor Width: 5'
- Feed Chain: 4 sections, full hopper width
- Compression Roll Diameter: 33.5"
- Land Clearing Mode: 60" x 53"
rotor & grates
- Rotor Width: 64"
- Rotor Diameter: 38"
- Rotor Shaft Size: 5.9" @ bearing, 7.5" @ center
- Bit Size: 2.75" x 5"
- Number of Bits: 22 drum rotor, 20 pinned rotor
- Rotor Speed: 1050 fpm @ 2100 rpm
- Number of Grate Sections: 4
- Total Grate Area: 28 ft²
- Grate Coverage: 187º
- Grate Thickness: 1", 1.25"
discharge system
- Discharge Conveyor Width: 54"
- Discharge Conveyor Height: 16' 8"
- Conveyor Speed: 500, 600, 700 ft/min
production
- Greenwaste Volume: 360 yd³
- Greenwaste Weight: 95 tons
- Scrap Board Volume: 425 yd³
- Scrap Board Weight: 65 tons
options
- Magnetic Head Pulley: Yes
- LED Work Lights: Yes
- Dust Control: Yes
- Crossbelt Magnet: Yes
- Scrap Metal Collection Box: Yes
- Export Kit: Yes
- CE Certification: Yes
- Feed Tailgate: Yes
- Cold Weather Kit: Yes
- Air Compressor: Yes
- R+ Package: Yes
- ASG Package: Yes
- Flat Feed Deck: No
- Liquid Injection System: No
- Tow Dolly: Yes
- Extra-Long Discharge Conveyor: No
