At a glance data:
Overview

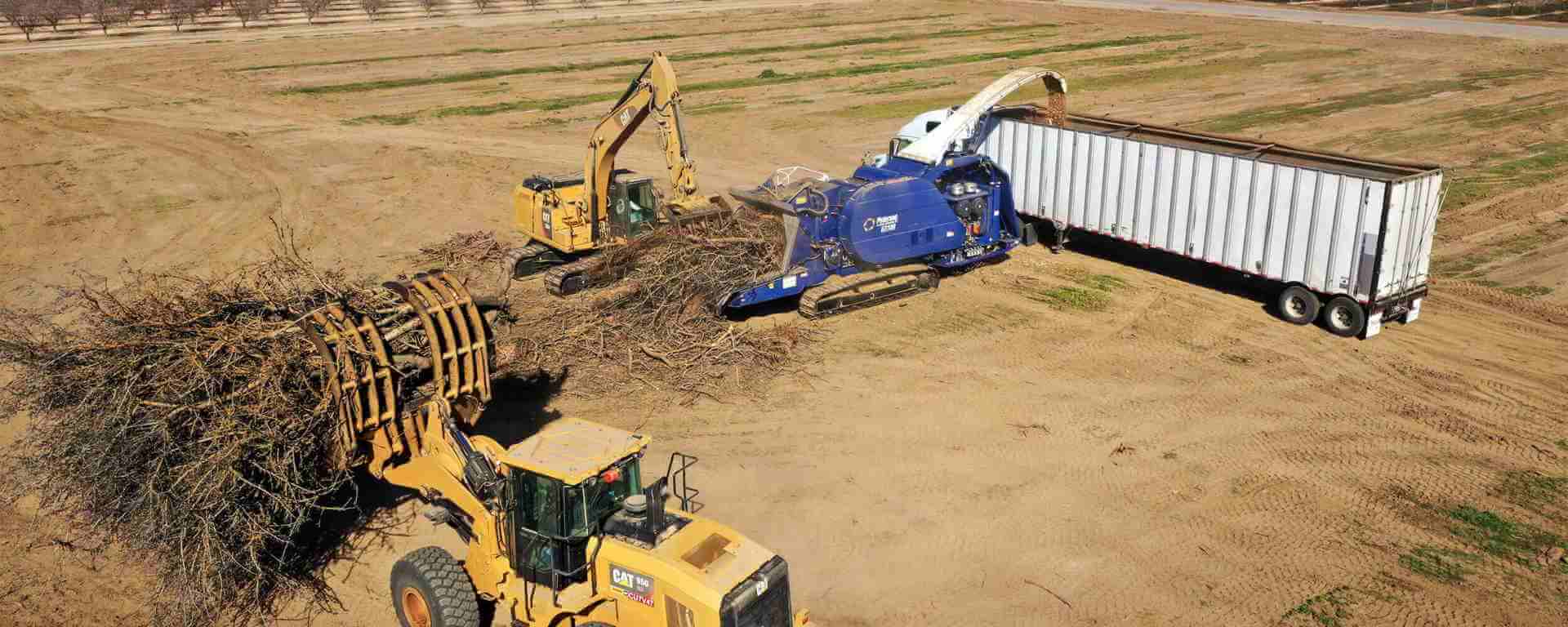

The track mounted 6310B Drum Chipper is suited for high volume biomass producers who have a wide variety of feed material, from logs up to 36″ (91 cm) in diameter, to brush and small feedstock. The 6310B Drum Chipper is powered by a 1050 hp (772 kW) C27 Caterpillar engine, and has an optional Tier IV engine available. At 86,000 pounds (39,010kg), the 6310B was designed for operations requiring high production and frequent moves between jobs. The 6310B drum chipper has two drum configurations, a 8-pocket drum to make standard biomass chips, or a 16-pocket drum to make microchips. An optional grate system has been redesigned to allow for adjustment from a microchip to a 1¼” chip with the same grates. Traditional Babbitt type knife systems are standard equipment, or an optional Key Knife system is available.
Category:
Chippers and Grinders
Brand:
General Specifications
Standard Equipment
dimensions
- Operating Length: 40' 9"
- Operating Width: 9' 10"
- Operating Height: 12' 0"
- Travel Width: 9' 10"
- Travel Length: 40' 9"
- Travel Height: 12'
- Frame Length: 36' 5"
- Front Overhang: 11' 8"
- Rear Overhang: 9' 9"
- Front Angle of Approach: 12º
- Rear Angle of Approach: 13º
- Front Ground Clearance: 2' 10"
- Rear Ground Clearance: 2' 6"
- Ground Clearance: 2' 0"
weights
- Machine Weight: 86,000 lbs
powertrain & system controls
- Engine: Caterpillar C27 Tier IV, 1050 hp
- Clutch: PT Tech HPTO 15 FX
- Fuel Tank Capacity: 395 gallons
- Main Hydraulic Tank Capacity: 120 gallons
- Peterson Adaptive Control System: Yes
- Radio Remote: Yes
- Peterson+ Analytics: Yes
tracks
- Track Type & Width: triple grouser, 24"
- Travel Speed: 1.2/2.3 mph
- Track Width: 9' 10"
- Ground Pressure: 12.5 lbs/in²
- Track Length: 14' 11"
feed system
- Feed Opening (h x w): 36" h x 57" w
- Feed Length: 7' 11"
- Feed Height: 5' 0"
- Feed Speed Range: up to 120 ft/min
- Feed Conveyor Width: 4' 9"
- Feed Chain: 4 Sections, WDH120
- Compression Roll Diameter: 42" diameter
chipper
- Drum Size: 50" diameter x 60" width
- Knife Pockets: 8 or 16 pockets (staggered)
- Knife System: Babbitt or Key Knife™
- Chip Size: ¼" to 1¼"
production
- Chip Output: up to 175 ton/hour
Optional Equipment
