Weiler F848 Forwarder

At a glance data:

Engine Model::
Cat® C7.1 Stage 5
Gross Power::
300 hp (224 kW)
Engine Displacement::
33 in³ (7.1 L)
Weight::
51,100 lb (23 179 kg)

Overview

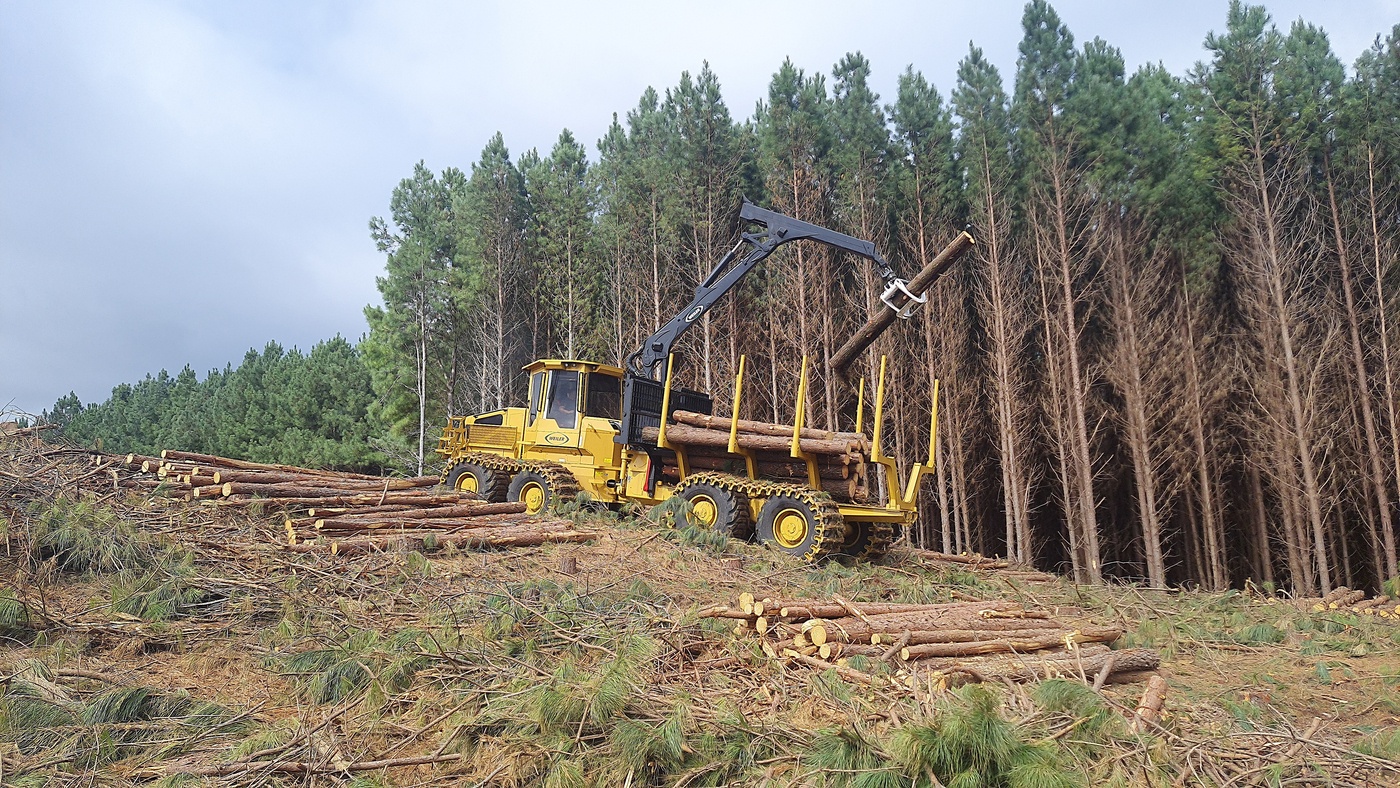

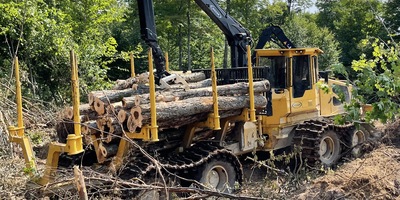

The Weiler F848 Forwarder delivers high-performance forestry functionality with rugged durability, operator-focused design, and best-in-class serviceability. Powered by a Caterpillar Stage 5 C7.1 engine running at 1980 RPM, it ensures smooth, fast operation complemented by a hydraulically driven variable-speed cooling fan for efficient fuel use and precise temperature control. Its two-speed hydrostatic drive provides excellent traction and power on steep slopes, while the dynamic braking system enhances downhill control, reduces drivetrain wear, and improves tire life. Built for North America's toughest conditions, the F848 features a heavy-duty cast articulation knuckle, dual tapered roller bearings, and reinforced skid plates for superior structural protection. The boom and grapple system are engineered for fast, smooth, and powerful operation, with protected plumbing and easily serviceable hoses that minimize downtime. The spacious cab enhances operator comfort with outstanding visibility, a user-friendly touchscreen control mounted on the armrest, and a lockable rotating seat for maximum ergonomics. Maintenance is simple with a forward tilting hood, side tilting cab, grouped lube points, and easy access to hydraulic and engine components—making the F848 as serviceable as it is powerful.

Category:
Forwarders

Brand:

General Specifications

Engine Model::
Cat® C7.1 Stage 5
Gross Power::
300 hp (224 kW)
Engine Displacement::
33 in³ (7.1 L)
Weight::
51,100 lb (23 179 kg)
Tractive Effort::
50,860 lbf (23 070 kgf)
Travel Speed - Low::
4.4 mph (7.0 km/h)
Travel Speed - High::
13.0 mph (20.9 km/h)
Crane Reach::
26.3’ (8.0 m)
Maximum Lift::
2,998 lbs (1360 kg)
Lifting Torque::
111,975 lbf-ft (151.8 kNm)
Slewing Torque::
30,240 lbf-ft (41.0 kNm)
Bunk Length::
213” (5410 mm)
Variable Bunk Width - Narrow::
109” (2769 mm)
Variable Bunk Width - Wide::
129” (3277 mm)
Fuel Tank Capacity::
67 gal (254 L)
Ground Clearance::
27” (686 mm)
Transport Width::
10’ 9” (3.28 m)
Wheel Base::
240” (6096 mm)
Height::
13’ 8” (4.17 m)
Length::
39’ 3” (11.96 m)
Payload Capacity::
44,000 lbs (20 000 kg)

Standard Equipment

powertrain

  • Cat® C7.1 engine certified to EPA Stage 5
  • Hydrostatic ground drive

hydraulics

  • Load sense, pressure compensated valves
  • Hydraulic tank vacuum pump
  • Hydraulic tank electric fill pump
  • Hydraulically adjustable head board
  • Manual hydraulic cab tilt for improved engine access

electrical

  • 24-volt electrical system with 2 x 12-volt batteries
  • 2 x 12V power ports
  • 115A alternator
  • Weiler control and programming system
  • AM/FM radio w/Bluetooth
  • 10 cab mounted LED work lights
  • 2 boom mounted LED work lights
  • 2 rear deck mounted LED work lights
  • Product LinkTM Ready
  • Lockable ground disconnect switch

operator environment

  • Enclosed FOPS/OPS/ROPS operator’s cab
  • Heater / air conditioner / defroster
  • Tinted 1/2” (12.7 mm) polycarbonate windows
  • Air suspension seat with electric swivel seat lock
  • Touchscreen display monitor and programmable operator controls
  • Isolation mountings
  • Horn
  • Dome Light
  • Hydraulic step and access platform

optional equipment

  • Blade
  • Front Protection and Cab Sweeps
  • Seat w/ Heating and Cooling
  • Sun Screens
  • Rear Pintle Hitch
  • Product LinkTM (PL243 Cellular or PL631 Satellite)
  • Ether Starting Aid
  • Cold Weather Coolant and Oil
  • Arctic Preheater
  • Front and Rear Windshield Wipers
  • Front, Sides, and Rear Windshield Wipers
  • Nokian 750-55-26.5 F-2 24 ply Spare Tire
  • Nokian 780-50-28.5 F SF 26 ply Spare Tire
  • Epsilon FG37 Grapple [Area = 3.87 ft2 (0.36 m2)]
  • Epsilon FG43S Grapple [Area = 4.30 ft2 (0.40 m2)]
  • Hultdins 360 Grapple [Area = 3.87 ft2 (0.36 m2)]
  • Hultdins 360S Grapple [Area = 3.87 ft2 (0.36 m2)]

sales and service

  • Sold and serviced exclusively through Weiler Forestry dealers worldwide.

warranty

  • 12 months standard. Extended warranty available.
