At a glance data:
Overview

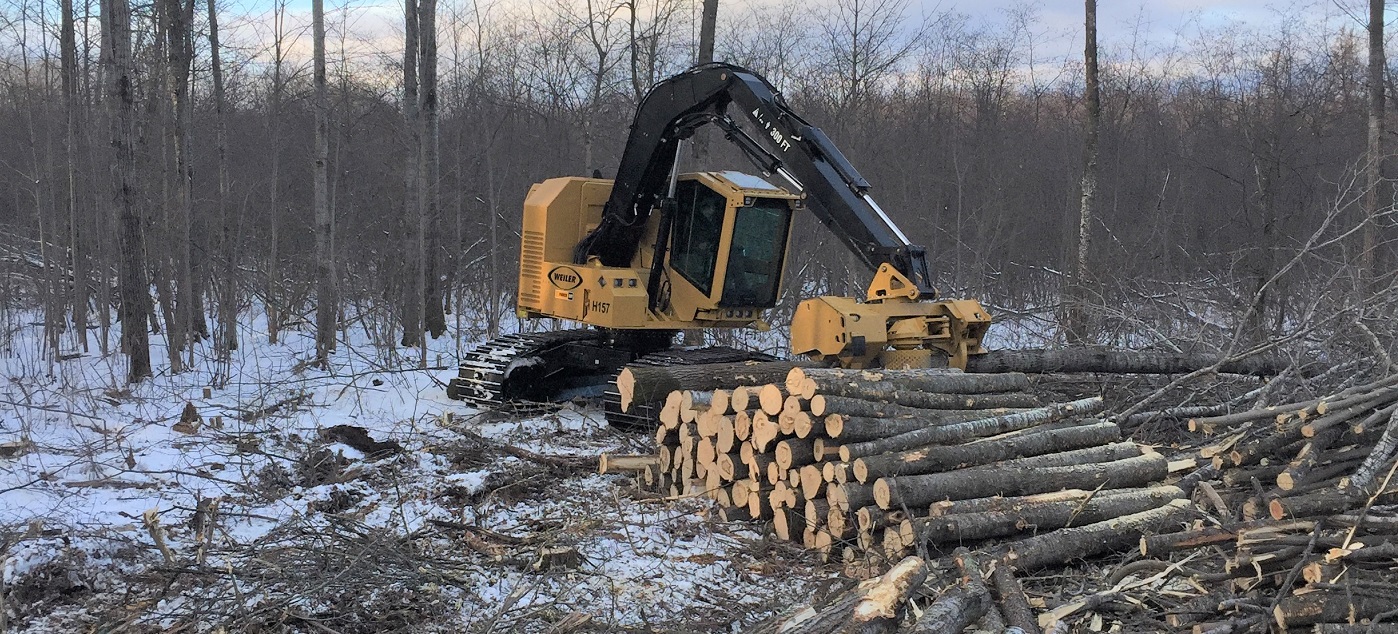

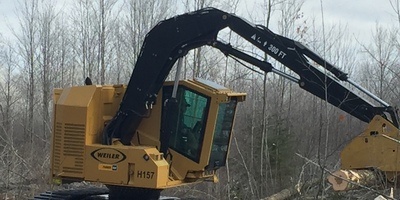

The Weiler H157 is a powerful and durable track harvester built for high performance in tough forestry conditions. Powered by a Cat® C4.4 Stage 5 engine delivering 184 hp, it features a D5 heavy-duty undercarriage, 43,000 lbf of tractive effort, and 26" ground clearance for excellent mobility and low ground pressure. Its comfortable, certified cab includes an air suspension seat, touchscreen controls, climate control, and LED lighting for all-day productivity. The H157 supports both fixed and telescopic booms and is compatible with the Weiler FH190 fixed head, offering continuous rotation, precise measuring, and efficient delimbing. Service is streamlined with a hydraulic tilt cab, gull-wing engine shields, and a swing-out fuel tank. Backed by Weiler’s dealer network and a standard 12-month warranty, the H157 is designed to keep your operation running strong in the most demanding environments.
Category:
Harvesters
Brand:
General Specifications
Undercarriage
General Specifications
Capacities
Dimensions
Standard Equipment
powertrain
- Cat C4.4 engine certified to EPA Stage 5
- Hydraulically driven reversing fan
- 7 RPM swing speed
undercarriage
- Heavy-duty track roller frames
- D5 HD track
- Top track support slides
hydraulics
- 140 cc variable displacement pump
- Load sensing valves
electrical
- 24-volt electrical system
- Weiler control and programming system
- Satellite radio w/Bluetooth
- 6 cab mounted LED work lights
- 4 machine mounted LED work lights
- Product LinkTM ready
other standard equipment
- Hydraulic cab tilt for improved engine access
- Hydraulically opening gull wing engine shields
- Hydraulically opening fuel tank for improved engine access
operator environment
- Enclosed FOPS/OPS/ROPS/OR-OSHA/WCB certified cab
- Air suspension seat with integrated joysticks and head rest
- Left-hand tilt console
- Retractable 4-point seat belt
- Touchscreen display monitor and programmable operator controls
- Scratch resistant polycarbonate windows
- Reverse slope 1.25” (32 mm) front windshield
- Front window emergency escape
- Skylight
- Left-side fresh air window
- Pressurized cab with filtered ventilation
- Heater / air conditioner / defroster
- Mount locations for CB radio and other accessories
- Behind seat storage tray
- Three cup holders, two USB sockets, and literature holder
optional equipment
- 19’ 10” (6.04 m) fixed boom and stick
- 26’ (7.92 m) boom with telescopic stick (dangle head)
- Arctic starting aid
- Top track support rollers
- 24” (600 mm) SG D5 HD Track
- 24” (600 mm) DG D5 HD Track
- 28” (710 mm) DG D5 HD Track
- 2-Roller or 4-Roller FH190 continuous rotation harvester head
standard equipment (harvester head)
- Center post structure
- Head mounted valve and controller
- Continuous rotation with hydraulic and electrical swivels
- Three delimber knives
- Speed encoder on each roller drive motor
additional standard equipment
- Independent Measuring Device (IMD) length measuring system
- Machined feed rollers
- 11H size main saw w/auto tensioning, auto return, & adjustable bar speed
- Integrated cab mounted operator controls with Weiler programming
sales and service
- Sold and serviced exclusively through Weiler Forestry dealers worldwide
warranty
- 12 months standard, extended warranty available
Optional Equipment
