At a glance data:
Engine Model:
Cat® C27
Engine Power - Net SAE J1349/ISO 9249** - Forward:
602hp
Engine Power - Gross SAE J1995* - Forward:
631hp
Engine Power - Gross SAE J1995* - Reverse:
801hp
Overview
The Cat® D10 Dozer is innovative by design — developed by a team of experts who follow a design approach that incorporates feedback from the field with industry-leading technologies to deliver a dozer that continues to advance with every model. The new D10 is no exception. It’s more efficient, so it burns less fuel. It’s more serviceable, so you’ll experience less downtime. It’s more durable, so you’ll spend less over its lifetime. And it’s more productive — so you’ll spend less time putting more profitability to your bottom line.
Category:
Large Dozers
Category:
Large Dozers
Brand:
Caterpillar
Brand:
Caterpillar
Engine - U.S. EPA Tier 4 Final/EU Stage V
Engine Model:
Cat® C27
Engine Power - Net SAE J1349/ISO 9249** - Forward:
602hp
Engine Power - Gross SAE J1995* - Forward:
631hp
Engine Power - Gross SAE J1995* - Reverse:
801hp
Engine Power - ISO 14396* - Forward:
620hp
Engine Power - ISO 14396* - Reverse:
789hp
Engine Power - Net SAE J1349/ISO 9249** - Reverse:
756hp
Displacement:
1648in³
Stroke:
6in
Bore:
5.4in
Emissions:
U.S. EPA Tier 4 Final/EU Stage V
Note (1):
*Excludes all fan losses.
Note (2):
All Engine ratings apply at 1,800 rpm.
Note (3):
Tier 2 equivalent rating (in FWD gears) begins altitude de-rate at 4480 m (14,700 ft).
Note (4):
Tier 4/EU Stage 5 equivalent rating (in FWD gears) begins altitude de-rate at 4420 m (14,500 ft).
Note (5):
**Net power advertised is the power available at the flywheel when the engine is equipped with air cleaner, muffler, alternator, fan, and engine emissions controls as required at 25° C ambient temperature.
Engine - U.S. EPA Tier 2 Equivalent
Engine Model:
Cat® C27
Engine Power - Net SAE J1349/ISO 9249** - Forward:
603hp
Engine Power - Net SAE J1349/ISO 9249** - Reverse:
722hp
Engine Power - Gross SAE J1995* - Forward:
631hp
Engine Power - Gross SAE J1995* - Reverse:
766hp
Engine Power - ISO 14396* - Forward:
622hp
Engine Power - ISO 14396* - Reverse:
756hp
Displacement:
1648in³
Bore:
5.4in
Stroke:
6in
Emissions:
U.S. EPA Tier 2 Equivalent
Note (1):
*Excludes all fan losses.
Note (2):
All Engine ratings apply at 1,800 rpm.
Note (3):
Tier 2 equivalent rating (in FWD gears) begins altitude de-rate at 4480 m (14,700 ft).
Note (4):
Tier 4/EU Stage 5 equivalent rating (in FWD gears) begins altitude de-rate at 4420 m (14,500 ft).
Note (5):
**Net power advertised is the power available at the flywheel when the engine is equipped with air cleaner, muffler, alternator, fan, and engine emissions controls as required at 25° C ambient temperature.
Fuel Tank Capacities
Fuel Tank - Usable Volume:
323.3gal (US)
Fuel Tank - Total Volume:
335.2gal (US)
FLUID CAPACITIES
Cooling System Refill – Tier 4 Final Engine:
46.2gal (US)
Engine Crankcase Sump:
27.2gal (US)
Power Train - Total Volume:
81.4gal (US)
Power Train - Refill Volume:
74.8gal (US)
Final Drives (each):
12.2gal (US)
Track Roller Frames (each):
16.9gal (US)
Pivot Shaft Oil:
9.5gal (US)
Hydraulic System Tank:
32.2gal (US)
Weights
Operating Weight:
154,888lb
Shipping Weight:
111,739lb
Note (1):
D10 Operating Weight includes coolant, lubricants, full fuel tank, ROPS, FOPS cab, SU ABR bulldozer, dual tilt, single-shank ripper with pin-puller, fast fuel, 610 mm (24 in) ES shoes, and operator.
Note (2):
D10 Shipping Weight includes coolant, lubricants, 10% fuel, FOPS cab, fast fuel, and 610 mm (24 in) ES shoes.
Hydraulic Controls
Pump Type:
Variable displacement piston
Pump Output - Implement:
112gpm
Note (1):
Implement Pump output measured are 2,010 engine rpm and
7000 kPa (1,015 psi).
Fan Pump:
21.7gpm
Note (2):
Fan Pump output measured at 2,010 engine rpm and 26 000 kPa (3,771 psi).
Tilt Cylinder Flow - Rod End Flow:
112gpm
Tilt Cylinder Flow - Head End Flow:
63.4gpm
Lift Cylinder Relief Valve Setting:
4,061.10psi
Tilt Cylinder Relief Valve Setting:
3,872.50psi
Ripper - Lift - Relief Valve Setting:
4,061.10psi
Ripper - Pitch - Relief Valve Setting:
4,061.10psi
Tank Capacity:
32.2gal (US)
Cylinder Sizing - Blade Lift - Bore:
5.5in
Cylinder Sizing - Blade Tilt - Bore:
8.3in
Cylinder Sizing - Ripper Shank Lift - Bore:
8.3in
Cylinder Sizing - Ripper Shank Angle - Bore:
7.1in
Cylinder Sizing - Blade Lift - Stroke:
65.1in
Cylinder Sizing - Blade Tilt - Stroke:
9.5in
Cylinder Sizing - Ripper Shank Lift - Stroke:
21.1in
Cylinder Sizing - Ripper Shank Angle - Stroke:
26in
Note (3):
Electro-hydraulic pilot valves assist operations of ripper and dozer controls.
Undercarriage
Shoe Type:
Extreme Service (ES)
Width - Shoe:
24in
Shoes/Side:
44
Grouser Height:
3.7in
Pitch:
10.2in
Ground Clearance:
28.5in
Track Gauge:
100.4in
Length - Track on Ground:
152.8in
Ground Contact Area:
7,347in²
Track Rollers/Side:
8
Number of Carrier Rollers:
1 per side (optional)
Steering and Brakes
Steering Type:
Hydraulically Applied Multiple-Disc Steering Clutch
Brake Type:
Spring Applied Multiple-
Disc Brake
Brake Diameter:
15.4in
Brake Count:
10
Air Conditioning System
Air Conditioning:
The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 1.8 kg of refrigerant which has a CO2 equivalent of 2.600 metric tonnes.
Standards
ROPS:
Rollover Protective Structure (ROPS) meets the following criteria: ISO 3471:2008.
FOPS:
Falling Object Protective Structure (FOPS) meets the following criteria: ISO 3449:2005 LEVEL II.
Sound:
Operator Sound Pressure Level (ISO 6396:2008): 78 db(A)
Note:
The measurement was conducted at 70% of the maximum engine cooling fan speed. The sound level may vary at different engine cooling fan speeds. The measurement was conducted with the cab doors and the cab windows closed. The cab was properly installed and maintained.
Sound (1):
Exterior Sound Pressure Level (ISO 6395:2008): 116 db(A)
Note (1):
The measurement was conducted at 70% of the maximum engine cooling fan speed. The sound level may vary at different engine
cooling fan speeds.
Note (2):
The sound levels listed above include both measurement uncertainty and uncertainty due to production variation.
Note (3):
The available sound suppression package can reduce the dynamic exterior sound power level of the machine by up to 4 db(A) and the dynamic operator sound pressure level by up to 2 db(A).
Transmission
1.0 Forward:
2.5mile/h
1.5 Forward:
3.4mile/h
2.0 Forward:
4.5mile/h
2.5 Forward:
6mile/h
3.0 Forward:
7.8mile/h
1.0 Reverse:
3.2mile/h
1.5 Reverse:
4.2mile/h
2.0 Reverse:
5.6mile/h
2.5 Reverse:
7.5mile/h
3.0 Reverse:
9.8mile/h
Transmission Clutch Diameter:
17in
Type:
Planetary powershift
Dimensions (Approximate)
Ground Clearance*:
28.5in
Track Gauge:
100.4in
Width - Without Trunnions - 610 mm/24 in ES:
130.4in
Width - Over Trunnions:
148in
Height - FOPS Cab*:
162.8in
Height - Top of Stack*:
171.5in
Height - ROPS/Canopy*:
173.5in
Note (1):
*Includes grouser height for total dimensions on hard surfaces.
Length - Track on Ground:
152.8in
Overall Length - Basic Tractor:
209.6in
Length - With SU-Blade:
292in
Length - With U-Blade:
305.1in
Length - With Single-Shank Ripper:
278.8in
Length - With Multi-Shank Ripper:
285.1in
Overall Length - SU-Blade/SS Ripper:
360.6in
Blades
10SU ABR - Capacity (SAE J1265):
24.2yd³
10SU ABR - Width (over end bits):
194.5in
10SU ABR - Height:
83.5in
10SU ABR - Digging Depth - Blade Pitch: Full Racked Back (Carry):
19.98in
10SU ABR - Digging Depth - Blade Pitch: Nominal:
25.23in
10SU ABR - Digging Depth - Blade Pitch: Full Pitched Forward (Spread):
30.08in³
10SU ABR - Ground Clearance - Blade Pitch: Full Racked Back (Carry):
66.14in
10SU ABR - Ground Clearance - Blade Pitch: Full Pitched Forward (Spread):
53.86in
10SU ABR - Ground Clearance - Maximum Tilt LH:
56.3in
10SU ABR - Ground Clearance - Maximum Tilt RH:
56.3in
10U ABR - Capacity (SAE J1265):
28.7yd³
10U ABR - Width (over end bits):
207.1in
10U ABR - Height:
83.5in
10U ABR - Digging Depth - Blade Pitch: Full Racked Back (Carry):
19.98in
10U ABR - Digging Depth - Blade Pitch: Nominal:
60in
10U ABR - Digging Depth - Blade Pitch: Full Pitched Forward (Spread):
30.1in
10U ABR - Ground Clearance - Blade Pitch: Full Racked Back (Carry):
66.1in
10U ABR - Ground Clearance - Blade Pitch: Full Pitched Forward (Spread):
53.9in
10U ABR - Ground Clearance - Maximum Tilt LH:
60.8in
10U ABR - Ground Clearance - Maximum Tilt RH:
60.8in
10U ABR - Weights - Blade Weight*:
23,585lb
10U ABR - Weights - Total Operating Weight** (with blade and SS ripper):
154,888lb
Note (1):
Maximum LH and RH tilt for 10SU ABR and 10U ABR blades: 17.31 degrees
Note (2):
*Does not include hydraulic controls but includes blade cylinders, pusharms.
Note (3):
**D10 Operating Weight includes coolant, lubricants, full fuel tank, ROPS, FOPS cab, SU ABR bulldozer, dual tilt, single-shank ripper with pin-puller, fast fuel, 610 mm (24 in) ES shoes, and operator.
Ripper - Single Shank
Maximum penetration force * (shank vertical):
49,233lbf
Maximum penetration depth (standard tip):
59.2in
Maximum Clearance Raised - Under Tip, Pinned in Bottom Hole:
36in
Weight:
14,209lb
Note:
Weight includes one shank. Add 544 kg (1,199 lb) for each additional shank.
Ripper - Single Shank, Deep Ripping
Maximum penetration force * (shank vertical):
53,055lbf
Maximum penetration depth (standard tip):
78.3in
Weight:
14,548lb
Note:
Weight includes one shank. Add 544 kg (1,199 lb) for each additional shank.
Standard Equipment
operator environment
- Air Conditioner and Heater with Automatic Climate Control
- Seat — Cloth with Air Suspension
- Cab Glass — Single-Pane Tinted Safety
- Rollover Protection System (ROPS)/Falling Object Protection (FOPS), Sound-Suppressed Cab
- High-Definition Primary Touchscreen Display
- Cab Access – Blade Push Arm Steps and Grab Handle
- Visibility – Rearview Mirror
technology
- VIMS
- Cat Product Link™ Elite (cellular)
- Automated Blade Assist (ABA)
power train
- Stator Clutch Torque Divider – Electronic Control
- Powershift Transmission – Three-Speed Electronic Shift
- High-Performance Single-Plane Cooling Package with Aluminum Radiator
- Cat C27 Engine – U.S. EPA Tier 4 Final or Tier 2 Equivalent
undercarriage
- Lifetime-Lubricated Rollers and Idlers
- Suspension-Type Undercarriage
- Track Shoe (ES): 610/710/785 mm (24, 28, 31 inch) Width
hydraulics
- Electronically Controlled, Load-Sensing Dozer Lift and Tilt
- Electronically Enabled Blade – Quick Drop
- Electronically Controlled, Load-Sensing Ripper Lift and Pitch
- Dozer Blade – Dual Tilt, Guarded Lines
electrical
- 24V Electric Start
- Batteries – 2× 200-Amp Hour, 12V
- Battery Isolation - Single Pole
- Lights – LED – 13 Positions
service and maintenance
- Replaceable Bearings – Push Arm and Ripper
- Radiator Guard – Swing-Out Access Doors
- Ground-Level Fast Fuel Fill
- Ground-Level Electrical Service Station
- Diagnostic Connector
- Bottom Guards - Hinged with Release Catch
- Scheduled Oil Sampling (S·O·S) Fluid Sampling Ports
- Ecology Fluid Drains – All Compartments
Optional Equipment
operator environment
- Cab Glass – Dual-Pane Laminated Impact Safety
- Visibility – Five Cameras: 360-Degree View and Ripper Camera
- Cab Glass – High-Pressure Safety (40 psi/275 kPa)
- MineStar™ Terrain Display
- Seat – Heated, Cooled, Adjustable Lumbar and Bolsters
- Visibility – Dual Camera: Backup and Ripper
technology
- Autocarry™
- Auto Ripper Control
- Cat Product Link Elite Dual Mode (cellular + satellite)
- Cat Grade with 3D Blade Control
- MineStar Terrain Ready
- MineStar Terrain with Blade Control
- MineStar Command Remote Control Ready
power train
- Hydraulic Cooling Fan – Automatic Reversing
undercarriage
- Abrasion Rollers and Idlers
- Cold Weather Rollers and Idlers
- Carrier Roller
- Track Links – Heavy Duty XL – Duralink
- Track Shoe – Anti-Packing Round Hole
- Sound-Suppression Undercarriage
- Track Shoes : 610/710/786 mm (24/28/31 in) Width (various configurations)
hydraulics
- Ripper Pin Puller
electrical
- Lights – LED – Premium Package
- Battery Isolation – Dual Pole
service and maintenance
- Ripper Lubrication – Grouped – Ground-Level Fill
- Ground-Level – Fluid Fill and Drain Engine, Power Train, Hydraulic and Coolant
- Sound Reduction Sealed Bottom Guards
- Ripper Lubrication – Autolube with Ground-Level Fill
rear attachments
- Counterweight – Rear, 3 Weighted Plates
- No Rear Attachment for customers who already have a rear attachment
- Ripper – Single Shank with Pin Puller and Retrieval Hitch
- Ripper – Single Shank with Pin Puller
- Ripper – Multi Shank (three shank)
- Counterweight – Rear, 4 Weighted Plates
- Ripper – Multi Shank Deep with Pin Puller
blades
- Semi-Universal (18.5 m3/24.2 yd3)
- Universal (22 m3/28.7 yd3)
other
- Fire Suppression Ready
- Fire Suppression Installed
worktools blades
- Cushion Dozer Blade
- Coal Universal (52 m3/68 yd3)
- Black Blade Paint
- Abrasion Liners and Guards
- Woodchip Universal (72.6 m3/95 yd3)
- Reclaimation Universal (24.5 m3/32 yd3)
- Coal Universal (46.1 m3/60.3 yd3)
Similar Products

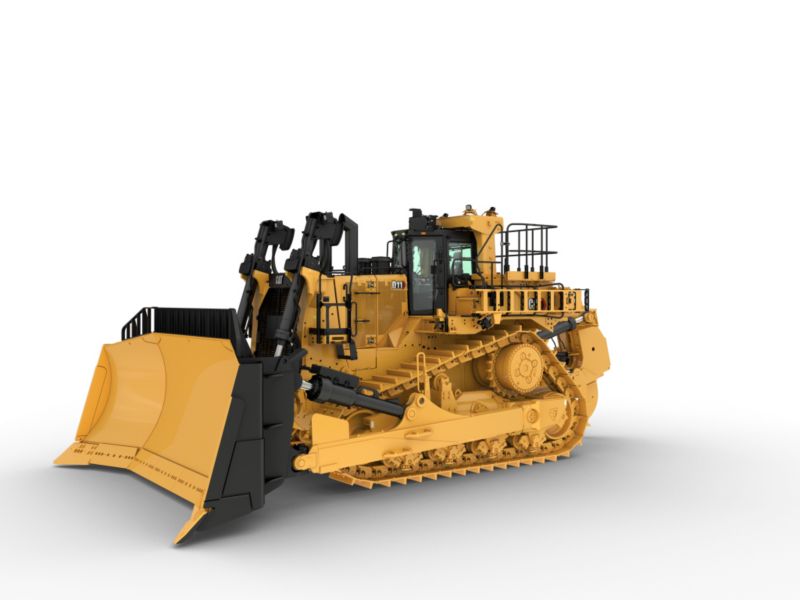

D11 Dozer
Engine Model:
Cat® C27
Engine Power - Net SAE J1349/ISO 9249** - Forward:
602hp
Engine Power - Gross SAE J1995* - Forward:
631hp
Engine Power - Gross SAE J1995* - Reverse:
801hp
D10 Dozer
Engine Model:
Cat® C27
Engine Power - Net SAE J1349/ISO 9249** - Forward:
602hp
Engine Power - Gross SAE J1995* - Forward:
631hp
Engine Power - Gross SAE J1995* - Reverse:
801hp
D9 Dozer
Engine Model:
Cat® C27
Engine Power - Net SAE J1349/ISO 9249** - Forward:
602hp
Engine Power - Gross SAE J1995* - Forward:
631hp
Engine Power - Gross SAE J1995* - Reverse:
801hp
