At a glance data:
Engine Model:
Cat® C32B
Engine Power - Net SAE J1349/ISO 9249 - Forward:
850hp
Displacement:
1959in³
Engine Power - Net SAE J1349/ISO 9249 - Reverse:
957hp
Overview

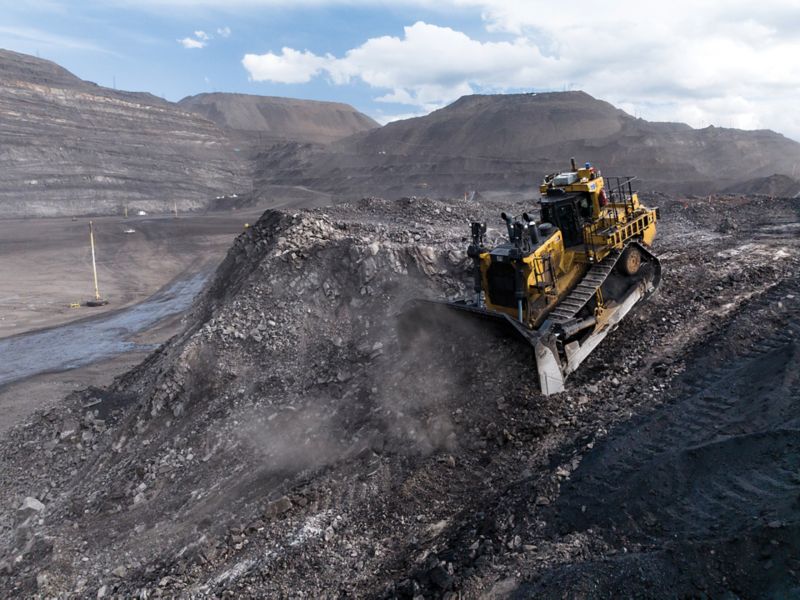

How do you make the industry’s best large dozer even better? By listening to your customers. You asked us to keep everything you love about the next generation D11, but to continue making improvements that help lower your overall costs. So we’ve made key changes that improve serviceability, durability, reliability and safety — helping the new D11 (07B) deliver a more positive impact to your bottom line.
Category:
Large Dozers
Category:
Large Dozers
Brand:
Caterpillar
Brand:
Caterpillar
Engine - U.S. EPA Tier 4 Final/EU Stage V
Engine Model:
Cat® C32B
Engine Power - Net SAE J1349/ISO 9249 - Forward:
850hp
Displacement:
1959in³
Engine Power - Net SAE J1349/ISO 9249 - Reverse:
957hp
Note (1):
*Excludes all fan losses.
Note (2):
Engine ratings apply at 1,800 rpm.
Note (3):
Net power advertised is the power available at the flywheel when the engine is equipped with air cleaner, muffler, alternator, fan, and engine emissions controls as required.
Engine - U.S. EPA Tier 2 Equivalent
Engine Model:
Cat® C32B
Displacement:
1959in³
Engine Power - Net SAE J1349/ISO 9249 - Forward:
850hp
Engine Power - Net SAE J1349/ISO 9249 - Reverse:
957hp
Note (1):
*Excludes all fan losses.
Note (2):
Engine ratings apply at 1,800 rpm.
Note (3):
Net power advertised is the power available at the flywheel when the engine is equipped with air cleaner, muffler, alternator, fan, and engine emissions controls as required.
Fuel Tank Capacities
Fuel Tank - Total Volume:
500gal (US)
Fuel Tank - Usable Volume:
475gal (US)
Service Refill Capacities
Cooling System:
46.8gal (US)
Cooling System Refill - Tier 2 Equivalent Engine:
41.7gal (US)
Engine Crankcase:
35.1gal (US)
Power Train:
120gal (US)
Power Train - Refill Volume:
103.3gal (US)
Final Drive - Each:
12.4gal (US)
Roller Frames - Each:
24.8gal (US)
Hydraulic Tank:
42.2gal (US)
Hydraulic System Tank and Chassis:
64.7gal (US)
Hydraulic System Chassis + Blade and Ripper (Standard):
117.6gal (US)
Hydraulic System Chassis + Blade and Ripper (Carrydozer):
143.4gal (US)
Weights
Operating Weight:
235,507lb
Operating Weight - Carrydozer:
254,208lb
Note (1):
D11 Operating Weight: Includes blade tilt cylinders, coolant, lubricants, full fuel tank, ROPS, FOPS cab, 11U ABR bulldozer, single-shank ripper with pin-puller, fast fuel, 710 mm (28 in) ES shoes, and operator.
Note (2):
D11 CD Operating Weight: Includes lubricant, coolant, full fuel tank, 915 mm (36 in) extreme service shoes, 11 Carrydozer, singleshank ripper, and operator.
Hydraulic Controls
Pump Type:
Variable displacement piston pump
Combined Pump Output - Implement:
177gpm
Undercarriage
Shoe Type:
Extreme Service
Width - Shoe:
28in
Width - Shoe - CD:
36in
Shoes/Side:
41
Grouser Height:
4in
Pitch:
12.5in
Ground Clearance*:
30.6in
Track Gauge:
114in
Length - Track on Ground:
175in
Ground Contact Area:
9781in²
Ground Contact Area - CD:
12605in²
Track Rollers/Side:
8
Number of Carrier Rollers:
1 per side (optional)
Air Conditioning System
Note (1):
The air conditioning system on this machine contains the flourinated greenhouse gas refrigerant R134a (Global Warning Potential = 1430). The system contains 2.1 kg (4.6 lb) of refrigerant which has a CO2 equivalent of 3.003 metric tonnes (3.31 tons)
Standards
ROPS:
Rollover Protective Structure (ROPS) meets the following criteria: ISO 3471:2008
FOPS:
Falling Objects Protective Structure (FOPS) meets the following criteria: ISO 3449:2005 LEVEL II
Sound (1):
The exterior sound pressure level for the standard machine (ISO 6396:2008) is 116 dB(A) (sound suppressed).
Sound (2):
The operator equivalent sound pressure level (ISO 6396:2008) is 78 dB(A) (sound suppressed).
Transmission
1.0 Forward:
2.5mile/h
2.0 Forward:
4.4mile/h
3.0 Forward:
7.6mile/h
1.0 Reverse:
3mile/h
2.0 Reverse:
5.3mile/h
3.0 Reverse:
9.1mile/h
Blades
Semi-Universal (SU)* Capacity:
35.6yd³
Semi-Universal (SU)* Width Over Endbits:
219.8in
U-Blade Capacity:
45yd³
U-Blade Width:
249.6in
Reclamation Universal - Blade capacity (SAE J1265):
55yd³
Reclamation Universal - Width with blade (over end bits):
251.8in
Carry Dozer - Blade capacity (SAE J1265):
57yd³
Carry Dozer - Width with blade (over end bits):
263.9in
Ripper - Single Shank
Maximum penetration force * (shank vertical):
66000lb
Maximum penetration depth (standard tip):
63.5in
Pryout Force:
148510lb
Ripper - Single Shank, Deep Ripping
Maximum penetration force * (shank vertical):
66110lb
Maximum penetration depth (standard tip):
85.5in
Pryout Force:
148510lb
Ripper - Multi-Shank, Adjustable Parallelogram
Overall Beam Width:
131.1in
Maximum Penetration Force - Shank Vertical:
77350lb
Maximum Penetration - Standard Tip:
43.3in
Pry-Out Force - Multi-Shank Ripper with One Tooth:
145640lb
Dimensions - D11
Ground Clearance*:
31.4in
Track Gauge:
114in
Width at Outside of Track (710 mm Track Shoe):
142in
Height (ROPS/canopy)*:
185.9in
Length of Track on Ground:
175in
Length with SU-Blade** - No rear attachment:
337.8in
Overall Length SU-Blade and SS Ripper**:
414.4in
Note:
*Includes grouser height for total dimensions on hard surfaces.
Dimensions - D11 Carrydozer
Width at Outside of Track (710 mm Track Shoe):
149.8in
Length with SU-Blade** - No rear attachment:
345.1in
Overall Length SU-Blade and SS Ripper**:
421.7in
Transmission
Drawbar Pull - 3 Forward:
46250ft·lbf
Drawbar Pull - 1 Forward:
148200ft·lbf
Drawbar Pull - 2 Forward:
82300ft·lbf
Standard Equipment
operator environment
- ROPS/FOPS, Sound-Suppressed Cab
- High-Definition Primary Touchscreen Display
- Visibility – Rearview Mirrors
- Air Conditioner and Heater with Automatic Climate Control
- Seat – Cloth with Air suspension
- Cab Glass – Single-Pane Tinted Safety
- Cab Access – Blade Push Arm Steps and Grab Handle
cat technology products
- VIMS
- Automated Blade Assist (ABA)
- Cat Product Link™ Elite (cellular)
cat power train
- Cat C32 Engine – U.S. EPA Tier 4 Final or Tier 2 Equivalent
- High-Performance Single-Plane Cooling Module
- Stator Clutch Torque Divider – Electronic Control
- Powershift Transmission – Three-Speed Electronic Shift
undercarriage
- Suspension Type Undercarriage
- Sleeve Bearing Track
- Lifetime-Lubricated Rollers and Idlers
- Track Shoe (ES): 710 mm (28 in) Width
hydraulics
- Electronically Controlled, Load-Sensing Dozer Lift and Tilt
- Electronically Controlled, Load-Sensing Ripper Lift and Pitch
- Dozer Blade – Dual Tilt
- Electronically Enabled Blade – Quick Drop
electrical
- 24V Electric Start, Dual Starters
- Batteries – 4 × 4,200-Amp Hour, 12V
- Battery Isolation
- Lights – Halogen – 13 Positions
service and maintenance
- Ecology Fluid Drains – All Compartments
- Hinged Bottom Guards
- High-Speed Oil Change – Engine and Transmission
- Ground-Level Fast Fuel Fill
- Ground-Level Electrical Service Station
- S·O·SSM Fluid Sampling Ports
- Diagnostic Connector
Optional Equipment
operator environment
- MineStar™ Terrain Display
- Visibility – Dual Camera
- Visibility – Four Cameras, 360 Degree View
- Seat – Heated, Cooled, Adjustable Lumbar and Bolsters
- Cab Glass – Dual-Pane Laminated Impact Safety
- Cab Glass – High-Pressure Safety (40 psi/275 kPa)
- Cab Access – Powered Ladder
cat technology products
- AutoCarry™
- Auto Ripper Control
- Cat Terrain with 3D Blade Control
- Cat Terrain Ready
- Cat Product Link Elite Dual Mode (cellular + satellite)
- Cat Command for Dozing Ready
cat power train
- Hydraulic Cooling Fan – Automatic Reversing
undercarriage
- Track Shoes (ES): 810/915 mm (32/36 in) Width (various configurations)
- Track Links – High Abrasion – Tall Link
- Track Links – Heavy Duty XL – Duralink
- Track Shoe – Abrasion Resistant
- Track Shoe – Anti-Packing Round Hole
- Abrasion Rollers and Idlers
- Cold Weather Rollers and Idlers
- Sound Suppression Undercarriage
- Carrier Roller
hydraulics
- Carrydozer Hydraulics
- Dozer Extended Blade Pitch
- Ripper Pin Puller
electrical
- Battery Isolation – Dual Pole
- Lights – LED – Premium Package
service and maintenance
- Sound Reduction Sealed Bottom Guards
- Ground-Level Fluid Fill and Drain
- Ripper Lubrication – Autolube with Ground-Level Fill
- Ripper Lubrication – Grouped – Ground-Level Fill
rear attachments
- Ripper – Single Shank with Pin Puller
- Ripper – Single Shank Pushblock with Pin Puller
- Ripper – Single Shank with Pin Puller – Heavy
- Ripper – Multi Shank (three shank)
- Ripper – Multi Shank – Heavy (three shank)
- Ripper – Multi Shank Leach Pad with Pin Puller
- Ripper – Multi Shank – Coal (five shank)
- Counterweight – Rear
- Drawbar with Counterweight
blades
- Semi-Universal (27.2 m³/35.6 yd³)
- Universal (34.4 m³/45.0 yd³)
- Carrydozer (43.6 m³/57 yd³)
- Reclamation Universal (42 m³/55 yd³)
- Reclamation Universal (53.5 m³/70 yd³)
- Coal Universal (75 m³/98.0 yd³)
- Coal Universal (65 m³/85.5 yd³)
other
- Fire Suppression Ready
- Fire Suppression Installed
