At a glance data:
Engine Model::
CUMMINS L9 Stage V
Peak Power at 1,800 rpm (SAE J1995)::
400 hp (298 kW)
Cylinders & Displacement::
6 cylinders / 543 CID (8.9 L)
Overview

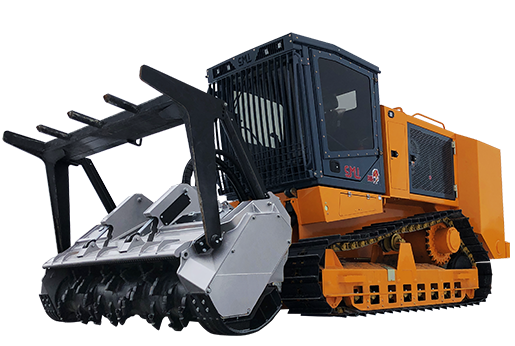

Powerful, high drive & lightweight. The C400L offers the perfect combination between power and agility for multiple applications.
Category:
Mulching Equipment
Category:
Mulching Equipment
Brand:
Brand:
General Specifications
Engine Model::
CUMMINS L9 Stage V
Peak Power at 1,800 rpm (SAE J1995)::
400 hp (298 kW)
Cylinders & Displacement::
6 cylinders / 543 CID (8.9 L)
Standard Equipment
engine
- Manufacturer & Model: CUMMINS L9 Stage V
- Cylinders & Displacement: 6 cylinders/543 CID (8.9 L)
- Peak Power at 1,800 rpm (SAE J1995): 400 hp (298 kW)
- Net Peak Torque: 1,324 ft-lbf (1,795 Nm)
- Fan: Automatic variable pitch, reversible
hydraulics
- Pump System: 4
- Filtration: 10 Microns
electrical
- Voltage: 12 Volts
- Standard Light: 8 LED type (4 Front, 2 Side, 2 Rear)
serviceability
- Fuel Tank: 132 gal US (502 L)
- Hydraulic Reservoir: 78 gal US (296 L)
- Cooling System: 10.6 gal US (40 L)
undercarriage & ground pressure
- Chain Type & Size: Sealed and greased, D4 with an elevated final drive design
- Track Shoe & Rollers: 24 in (610mm) single grouser with mud hole, dozer type rollers. 30 in (760 mm) pads optional
- Ground Pressure (Crawler only, 24 in pads): 4.98 psi (0.35 kg/cm2)
- Weight (Crawler only, 24 in pads): 30,900 lb (14 016 kg
- Ground Pressure (Crawler only, 30 in pads): 4.09 psi (0.29 kg/cm2)
- Weight (Crawler only, 30 in pads): 31,700 lb (14 378 kg)
top speed
- Motor: Two speed hydraulic motors
- Speed: Variable speed from 0 to 4.0 mph (0 to 6.5 km/h)
standard characteristics
- Push button cab lift with manual override
- Backup camera
- AM/FM/Bluetooth radio
- Hydraulic oil filler pump
- Air suspension seat
- ROPS/FOPS/OPS Certification
- 12 Volts DC outlet
Optional Equipment
Similar Products

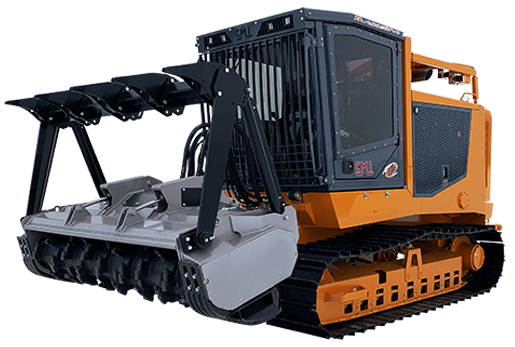

CMI Mulching C300
