At a glance data:
Engine Model:
Cat® C9.3B Stage 5
Gross Power:
375 hp (280 kW)
Engine Speed:
1890 rpm
Weight:
43,580 lb (19 768 kg)
Overview

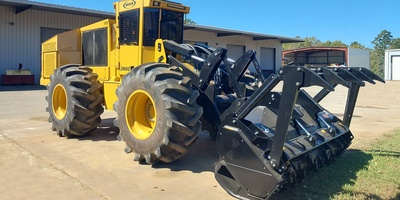

The Weiler M860A Mulcher is a powerful, purpose-built machine designed for heavy-duty land clearing. Featuring a 375 hp Cat® C9.3B Stage 5 engine and advanced hydraulics, it delivers strong, reliable performance in tough forestry applications. The spacious, ROPS-certified cab offers excellent visibility and comfort, while the machine’s design ensures easy service access. With a rugged frame and compatibility with the Weiler 825 mulching head, the M860A is built for efficient, high-capacity mulching in demanding environments.
Category:
Mulching Equipment
Category:
Mulching Equipment
Brand:
Brand:
General Specifications
Engine Model:
Cat® C9.3B Stage 5
Gross Power:
375 hp (280 kW)
Engine Speed:
1890 rpm
Weight:
43,580 lb (19 768 kg)
Capacities
Fuel Capacity:
130.5 gal (494 L)
DEF Capacity:
11.8 gal (44.7 L)
Hydraulic Tank Capacity:
43.0 gal (163 L)
Dimensions
Wheelbase:
125.0” (3175 mm)
Ground Clearance:
24.7” (627 mm)
Transport Width:
9’ 11” (3.03 m)
Transport Height:
11’ 3” (3.43 m)
Transport Length:
29’ 11” (9.12 m)
Performance
Travel Speed (Low):
0-6.2 mph (0-10.0 km/h)
Travel Speed (High):
0-12.4 mph (0-20.0 km/h)
Cutting/Mulching
Cutting Path - 825:
8’ 4” (2.54 m)
Max Single Cut Diameter:
16.0” (406 mm)
Max Mulching Diameter:
16.0” (406 mm)
Standard Equipment
Optional Equipment
